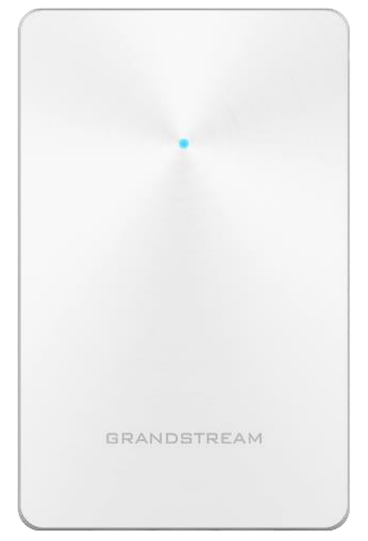

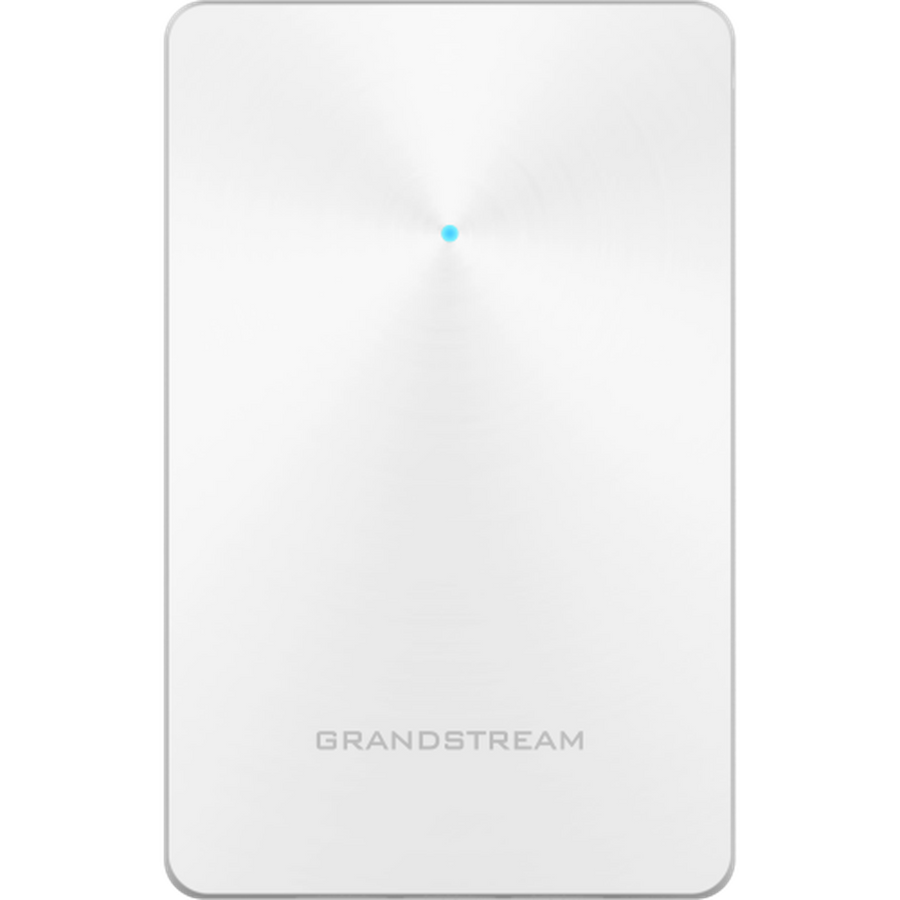

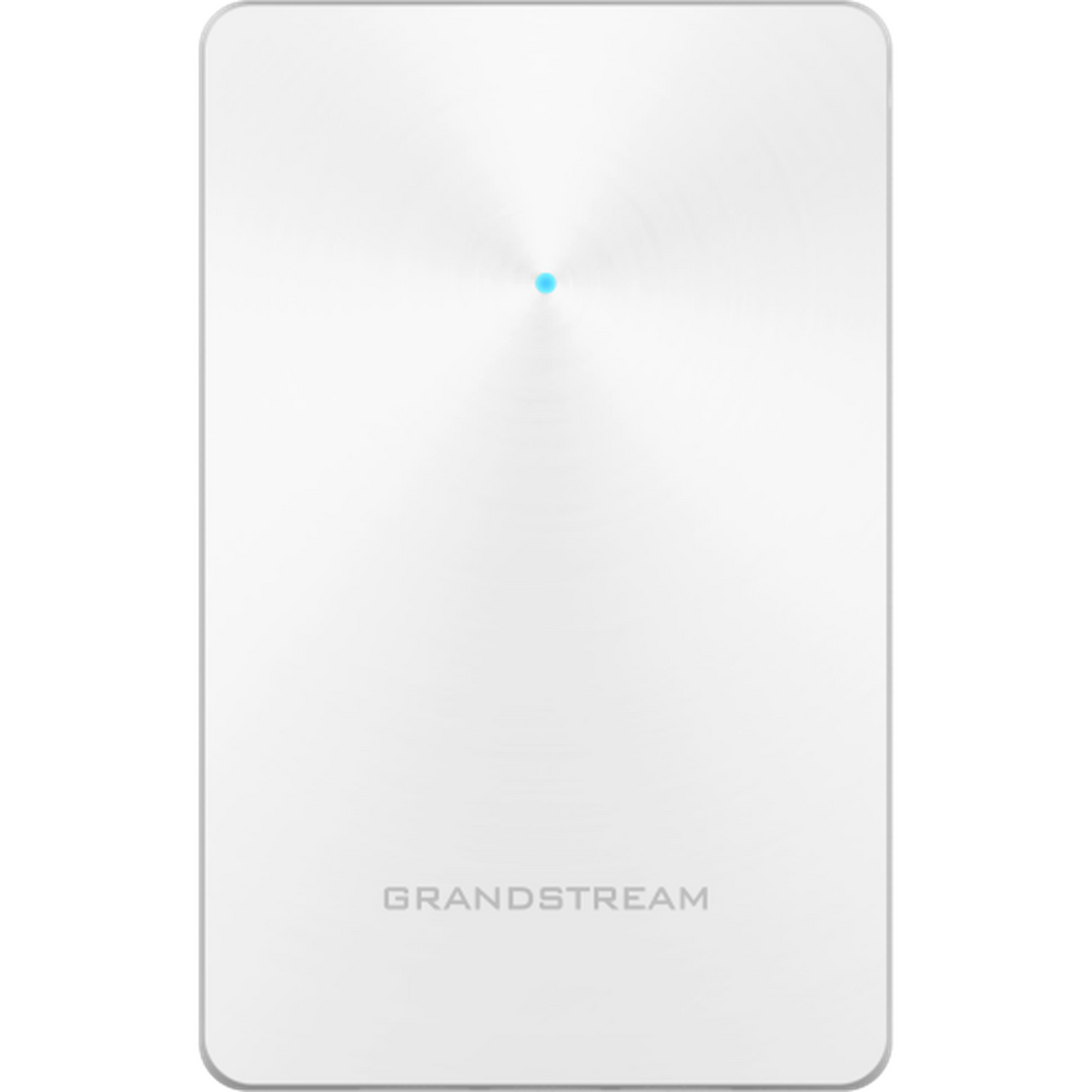

Grandstream GWN7624 In-Wall Dual-Band Wi-Fi Access Point

The Grandstream GWN7624 is an in-wall 802.11ac Wave-2 access point with an unusually strong 5 GHz radio: 4×4:4 MU-MIMO, up to 2.03 Gbps of aggregate throughput and up to 200 concurrent clients, from a unit that fits in a faceplate.

It brings three Gigabit network ports out of the wall alongside the Wi-Fi, two of which supply PoE — so the same plate can feed a desk phone or a small camera without another power source in the room. One cable arrives; Wi-Fi, wired sockets and local power come out.

Wi-Fi 5, not Wi-Fi 6 — and that is a real choice, not an oversight. Four spatial streams on 5 GHz gives it more simultaneous capacity than most in-wall units, and for a room of ordinary devices that matters more than the standard on the box. If the estate is standardising on Wi-Fi 6, the GWN7661 is the equivalent; if you are buying on capacity per pound, this is often the better unit.

Key features

• 4×4:4 MU-MIMO on 5 GHz — four spatial streams from an in-wall unit
• Up to 2.03 Gbps aggregate throughput — both radios combined
• Up to 200 concurrent clients — far beyond what one room will present

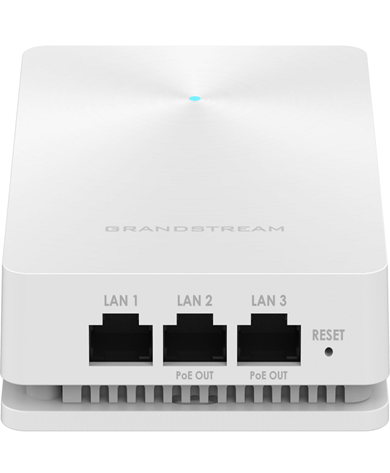

• Three Gigabit network ports — wired sockets for phones, computers and TVs
• Two ports supply PoE — power a handset or a camera from the same plate

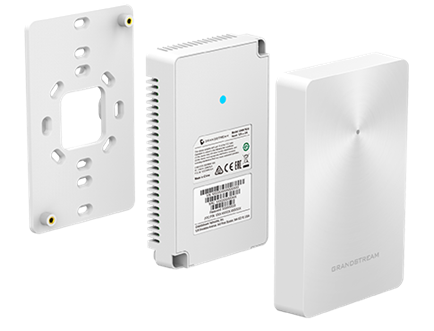

• In-wall faceplate design — fits where the existing socket is, nothing on show
• 802.11ac Wave-2 — MU-MIMO and wide channels, proven and widely deployed
• GDMS Networking and GWN Manager — cloud or on-premise management, both free

Works with

• Grandstream GWN7661 — the Wi-Fi 6 in-wall equivalent
• Grandstream GWN7670WM — the wall-mounted Wi-Fi 7 step up
• Grandstream GWN7625 — the ceiling-mounted Wave-2 unit
• GWN7801P PoE switch — the PoE+ source feeding a corridor of these
• Grandstream GHP620 — the hotel phone that plugs into one of its wired ports
• All wireless access points

Frequently asked questions

Is Wi-Fi 5 a problem in 2026?

Not for a hotel room. Wave-2 handles phones, laptops and streaming televisions without difficulty, and the 4×4:4 radio serves more of them at once than many Wi-Fi 6 in-wall units. Choose Wi-Fi 6 if the estate is standardising on it, not because the number is bigger.

Can it power a phone?

Yes — two of the three Gigabit ports supply PoE, which is exactly what a hotel room needs when the phone and the plate share one drop.

Will it fit my existing back box?

It is designed to replace a standard in-wall plate, but depth varies. Check behind one before ordering a floor's worth — back box depth is what stalls in-wall installs, not the specification.

How much area does one cover?

One room. A faceplate access point sits low and radiates outward through furniture, so plan one per room rather than one per corridor.

What does 4×4:4 give me in a small room?

Simultaneous service rather than single-device speed. With four streams the access point talks to several clients in the same slot instead of cycling through them — useful in a family room or a shared flat.

Can it be managed with the rest of our GWN kit?

Yes. GDMS Networking in the cloud or GWN Manager on-premise handle it alongside every other GWN access point and switch on the site.

Kitting out a floor of rooms? Call 0333 242 1314 or email sales@clisecure.com and we will check the back boxes and the switching before you order.
