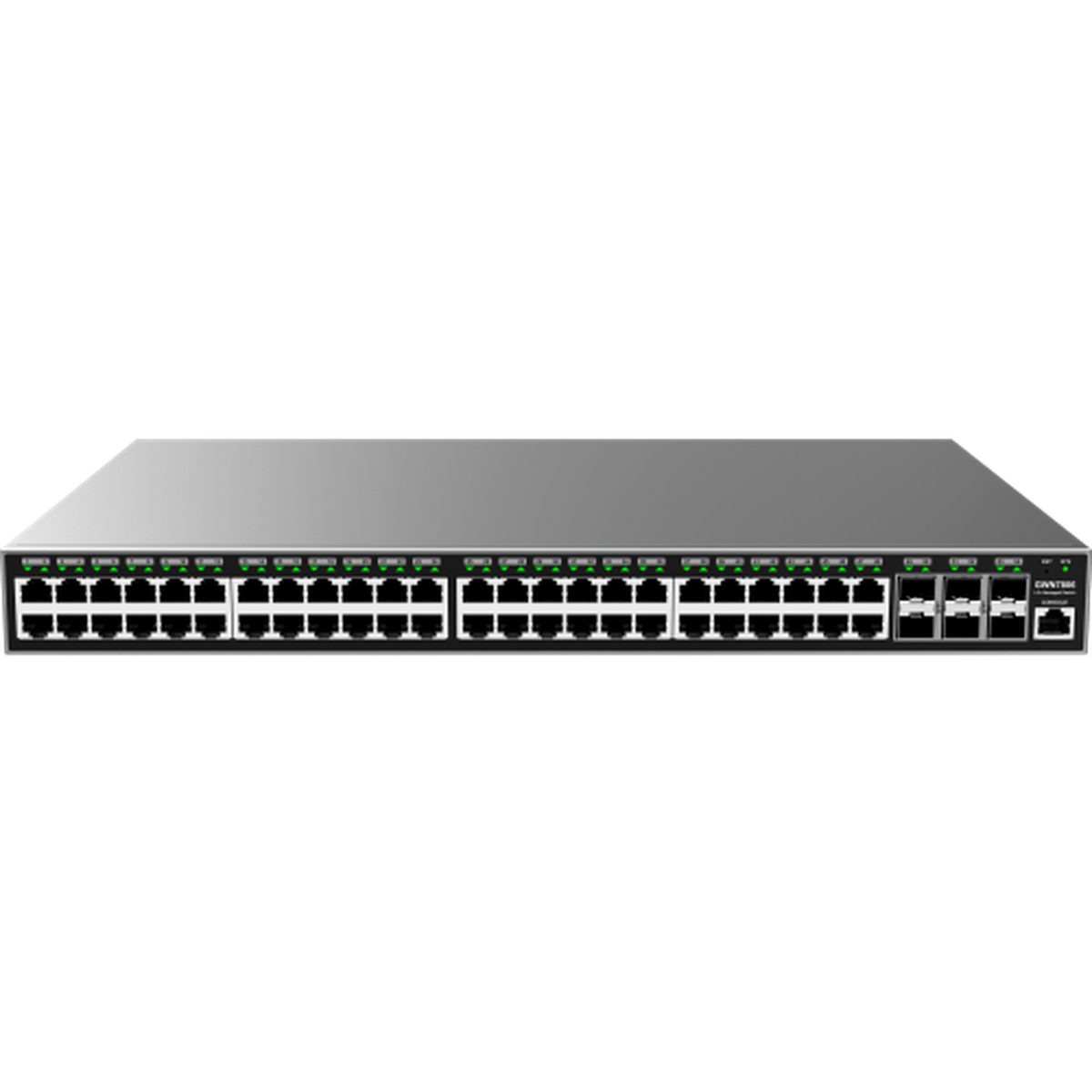

Grandstream GWN7806 48-Port Gigabit Layer 2+ Managed Switch with 6 × 10G SFP+

The Grandstream GWN7806 is a 48-port Layer 2+ managed switch for sites that have outgrown unmanaged hardware. Forty-eight Gigabit copper ports handle the access layer, and six 10G SFP+ slots give you ten-gigabit uplinks into the core or between buildings — enough headroom that the uplink stops being the bottleneck.

This is the non-PoE model, so connected devices need their own power. If you are powering access points, IP phones or cameras over the network cable, the GWN7806P is the same switch with a 400W PoE budget across all 48 ports.

Being Layer 2+ managed, it does the work that matters on a busy network: VLANs to keep voice, CCTV and data apart, QoS so calls stay clean when someone starts a backup, link aggregation for a fatter uplink, and spanning tree so a mis-patched cable does not take the site down. Up to four units stack as one logical switch, and management runs from GWN.Cloud, the local web interface, or SNMP and CLI.

Key features

• 48 Gigabit copper ports — enough access ports to replace a stack of desktop switches
• 6 × 10G SFP+ uplinks — ten-gigabit fibre or DAC to the core, no bottleneck
• 216 Gbps switching capacity, 160.7 Mpps — non-blocking under full load
• Stacking up to 4 units — manage a full cabinet as one logical switch
• Layer 2+ managed — 4K VLANs, QinQ, voice VLAN and inter-VLAN routing
• 27 link aggregation groups — bond ports for wider, resilient uplinks
• STP, RSTP, MSTP, PVST and RPVST — loop protection to suit any existing network
• 4K ACLs across Ethernet, IPv4 and IPv6 — access control enforced at the edge
• IGMP and MLD snooping — keeps multicast off ports that do not need it
• GWN.Cloud, local web GUI, SNMP and CLI — manage one site or fifty

Works with

• Grandstream GWN7806P — the same switch with a 400W PoE budget
• Grandstream GWN access points — one console for switching and Wi-Fi
• Grandstream UCM IP PBX range — put voice on its own VLAN behind this switch
• All Grandstream switches

Frequently asked questions

Does the GWN7806 supply PoE to connected devices?

No. The GWN7806 is the non-PoE model — every connected device needs its own power supply. If you need power over the network cable for access points, phones, cameras or door entry units, order the GWN7806P instead. It is the same 48-port Layer 2+ switch with a 400W PoE budget, up to 30W per port.

Are the uplinks really 10 gigabit?

Yes. The six SFP+ slots run at 10Gbps, not 1Gbps. That matters on a 48-port switch — with Gigabit uplinks a busy access layer would saturate the link to the core.

Can several of these be managed as one switch?

Yes. Up to four units stack into a single logical switch, so a full cabinet is configured and monitored as one device rather than four.

Can it be managed without a cloud account?

Yes. The switch has a full local web interface and supports SNMP and CLI, so it can run entirely on-premises. GWN.Cloud is optional and is most useful when you manage several sites.

Will it route between VLANs?

Yes. Layer 2+ includes inter-VLAN routing, which is usually enough for a single-site network. For dynamic routing or firewalling between segments you would pair it with a router or a Grandstream GCC unit.

Not sure whether you need the PoE version, or how many uplinks to allow for? Call 0333 242 1314 or email sales@clisecure.com and we will check your device list before you order.
