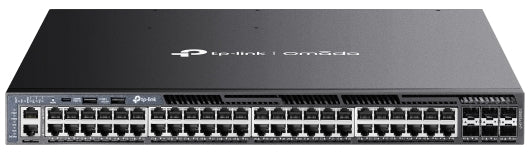

TP-Link Omada SG6654XHP L3 PoE Switch

The Omada SG6654XHP is the flagship PoE switch of the Omada L3 range: 48 Gigabit PoE+ ports, six 10 Gbps SFP+ slots and a total PoE budget of up to 1440 W — enough to run a very large estate of access points, cameras and phones from a single chassis.

Full Layer 3 routing (RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP server/relay), physical stacking and two field-replaceable power supplies make it a genuine distribution-layer platform. Feed high-density APs such as the EAP670 or EAP772 directly from its ports, all cloud-managed with an Omada SDN controller like the OC300.

Key features

• 48 × Gigabit RJ45 PoE+ ports with a total budget of up to 1440 W.
• 6 × 10 Gbps SFP+ slots for aggregation and core uplinks.
• Physical stacking for built-in redundancy and performance.
• Layer 3 routing — RIP, OSPF, ECMP, VRRP, PIM-DM and DHCP server/relay.
• Security strategies — ACL, port security, DoS defend and 802.1X.
• High availability — two field-replaceable power supplies, VRRP and ERPS.
• Omada SDN cloud management plus standalone web, CLI, SNMP and RMON.

Works with

• TP-Link EAP772 — Wi-Fi 7 ceiling AP powered over PoE+
• TP-Link SG6654X — the same platform without PoE
• TP-Link Omada OC300 controller for SDN management
• All network switches
• All networking

Frequently asked questions

How much PoE can it actually deliver?

Up to 1440 W across 48 PoE+ ports — in practice, headroom to run high-power access points on every port simultaneously. We can check your device list against the budget before you order.

Why field-replaceable power supplies?

If a PSU fails it can be swapped without replacing the switch, and the second unit keeps the switch and its powered devices running in the meantime.

Does it route as well as switch?

Yes — RIP, OSPF, ECMP, VRRP, PIM-DM and DHCP server/relay run on-box, so it handles inter-VLAN routing at the distribution layer without an external router.

Do I need an Omada controller?

No — standalone web, CLI, SNMP and RMON are built in; the Omada SDN controller adds single-dashboard cloud management across switches, APs and gateways.

Powering a large wireless estate? Call 0333 242 1314 or email sales@clisecure.com and we will size the switches, access points and PoE budget before you order.
