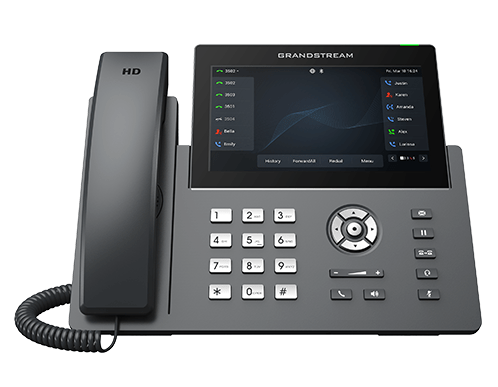

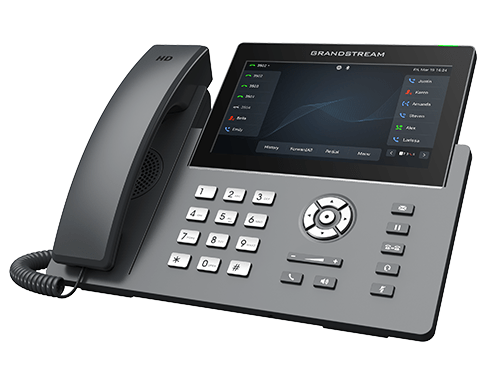

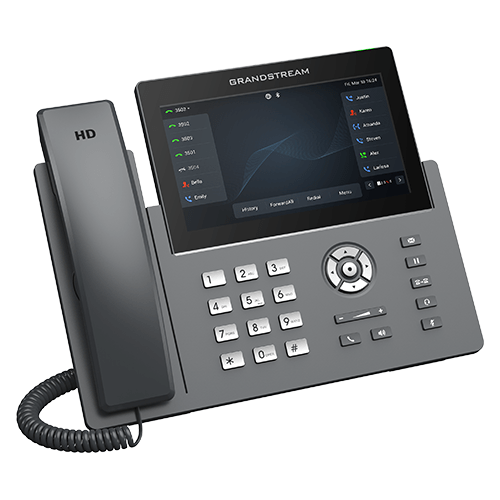

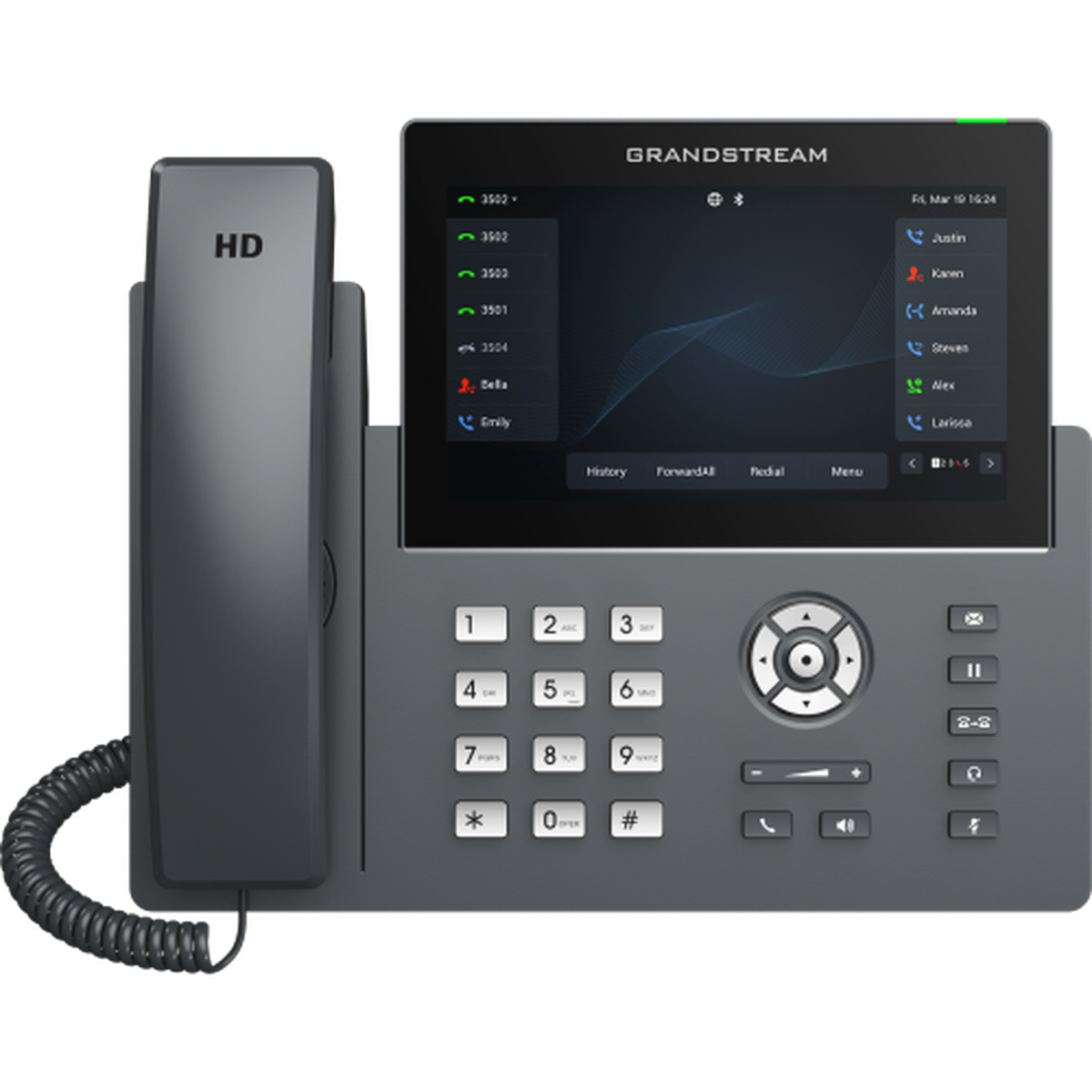

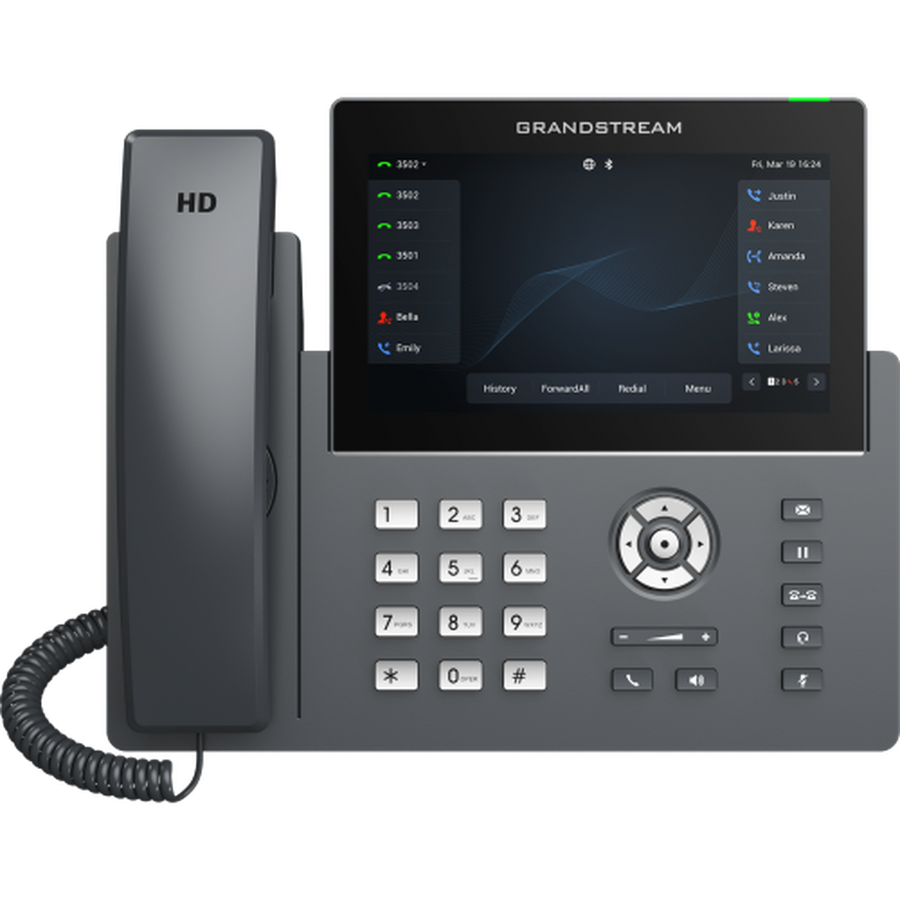

Grandstream GRP2670 Carrier Grade Touchscreen IP Phone

The Grandstream GRP2670 replaces rows of plastic buttons with a 7-inch capacitive touchscreen. Twelve lines and sixteen SIP accounts are presented across forty-eight virtual multi-purpose key positions, so a user swipes between banks of colleagues, queues and speed dials rather than hunting along a fixed keypad or bolting on an expansion module.

For organisations that reconfigure often — growing teams, shared desks, seasonal staff — that is a real practical gain: reassigning a key is a provisioning change, not a trip round the building with printed inserts. Dual-band Wi-Fi 6, Bluetooth, USB headset support and noise shield round out a phone designed for front-of-house and senior positions, and it still draws only 6.5W from an 802.3af PoE port.

Key features

• 7-inch 1024 × 600 capacitive touchscreen — swipe between key banks instead of paging with buttons
• Twelve lines with 16 SIP accounts — console-level capacity without a console footprint
• Forty-eight virtual multi-purpose keys — extensive BLF and speed-dial coverage, reconfigured remotely
• Integrated dual-band Wi-Fi 6 — 802.11a/b/g/n/ac/ax, so no data point is required
• Integrated Bluetooth — wireless headsets and mobile contact syncing
• USB headset support — alongside the RJ9 EHS jack for Plantronics models
• Noise shield technology — keeps open-plan background noise off the call
• 5-way audio conferencing — multi-party calls set up on the screen
• Dual Gigabit Ethernet with 802.3af PoE — 6.5W maximum draw despite the large display
• GDMS centralised management — deploy, monitor and update fleets remotely

Technical specification

Telephony

• 12 lines with 16 SIP accounts
• 48 virtual multi-purpose keys
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723, G.726, G.729A/B, iLBC, Opus

Display and controls

• 7-inch 1024 × 600 capacitive touchscreen
• 5 navigation keys and 9 dedicated function keys

Network and wireless

• Dual switched 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• Integrated dual-band 2.4GHz and 5GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth

Audio and headset

• Full HD audio on handset and speaker
• Noise shield technology
• EHS support for Plantronics headsets plus integrated USB headset support

Power and physical

• 12V power adapter; maximum consumption 6.5W
• Integrated Power over Ethernet, IEEE 802.3af
• Dimensions: 267 × 220 × 82 mm; unit weight 1.1kg
• Desk stand supplied; wall-mountable

Security and management

• Secure boot, dual firmware images, encrypted data storage
• 256-bit AES encryption, SRTP and TLS
• GDMS centralised management and provisioning

Datasheet

Download the official Grandstream GRP2670 datasheet (PDF)

Works with

• Grandstream GRP2650 — 14 physical line keys if you prefer buttons to touch
• Grandstream GXV3450 — step across to an Android video phone with a camera
• Grandstream GUV3050 Bluetooth headset
• Grandstream GWN7802P PoE switch
• All Grandstream IP phones
• IP video phones

Frequently asked questions

Is the GRP2670 an Android phone?

No. It is a SIP desk phone with a touchscreen interface, not an Android application platform. If you need Android apps and a camera, look at the GXV series video phones.

How do the 48 virtual keys work in practice?

They are arranged in pages on the touchscreen. The user swipes between banks of BLF, speed dial and line keys, and administrators can change assignments remotely through provisioning.

Does it need more than 802.3af PoE?

No. Maximum consumption is 6.5W, so a standard 802.3af PoE port is sufficient.

Can it be wall mounted?

Yes. The GRP2670 ships with a desk stand and is wall-mountable.

Does it work over Wi-Fi?

Yes. Dual-band Wi-Fi 6 is integrated, so the phone only needs power if there is no convenient data point.
