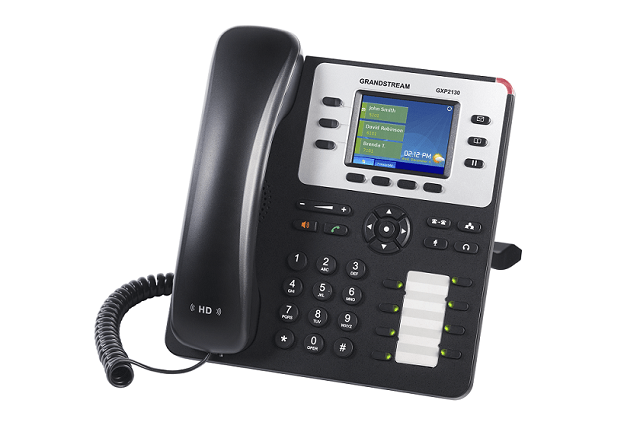

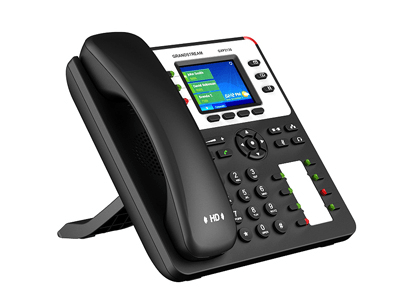

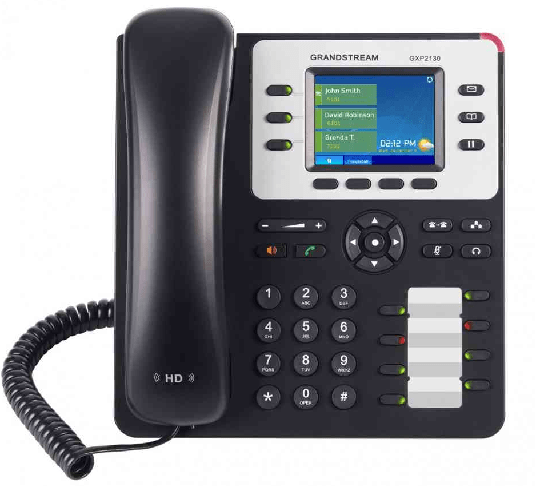

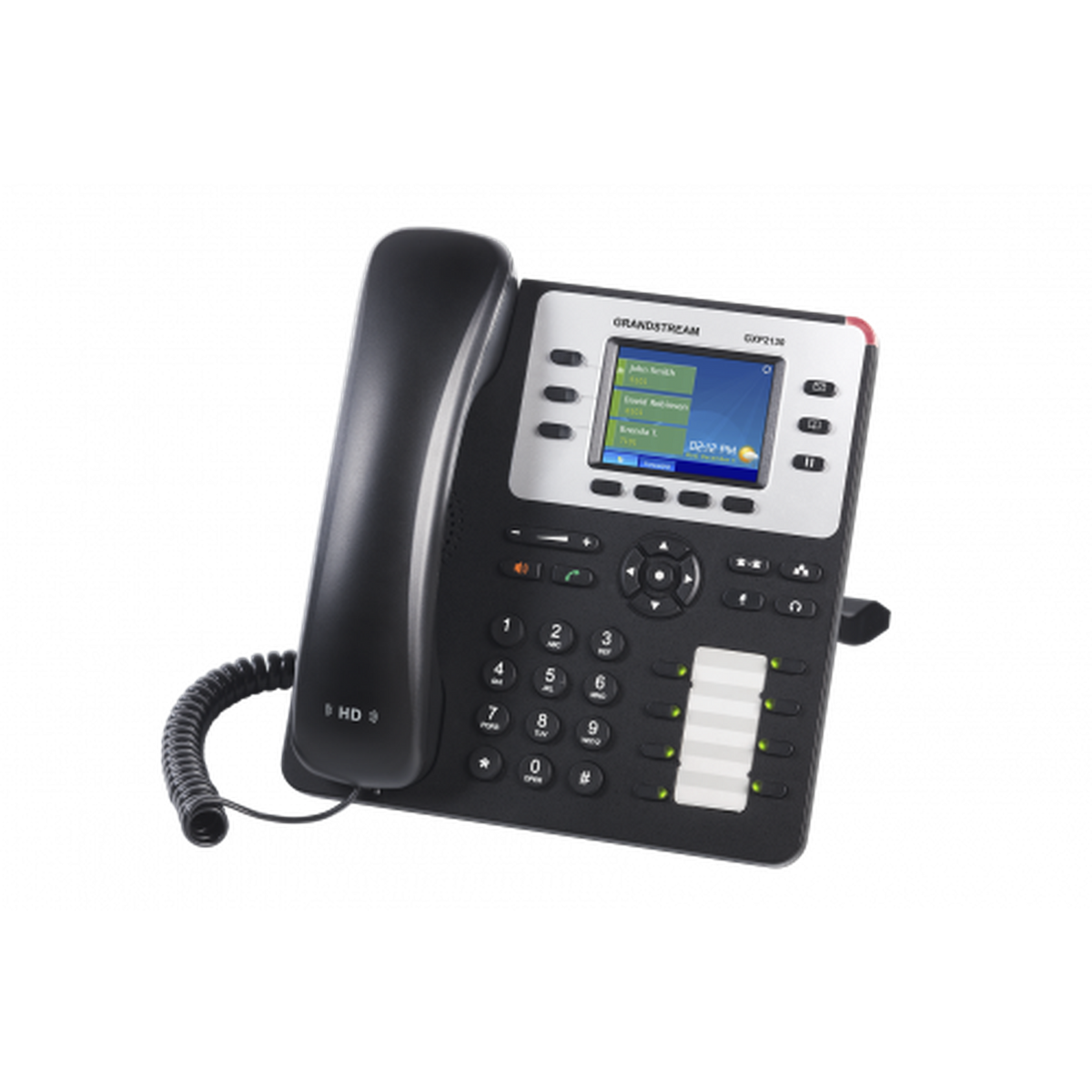

Grandstream GXP2130 v2 Enterprise HD IP Phone

The Grandstream GXP2130 v2 was the model that brought a colour screen and Bluetooth to the ordinary office desk. Three SIP accounts run across three dual-colour line keys, eight speed-dial and BLF extension keys sit alongside, and a 2.8-inch 320 × 240 colour display makes directories and call lists far easier to read than the monochrome GXP16xx range it sat above.

It remains a solid, well-understood enterprise handset for standard desks: Gigabit ports so the PC is not throttled, integrated 802.3af PoE for single-cable installation, 4-way conferencing and Bluetooth for pairing a mobile or a wireless headset. If you are running a mixed estate and need to match existing GXP21xx phones, this is the entry point in that family.

Key features

• Three SIP accounts with three dual-colour line keys — hold, take and still have a line free
• Eight speed-dial and BLF extension keys — monitor colleagues with dual-colour LED status
• 2.8-inch 320 × 240 colour TFT — readable directories, call lists and caller detail
• Integrated Bluetooth 2.1 — pair a mobile or a wireless headset directly to the phone
• Dual Gigabit Ethernet with integrated PoE — single cable, no speed penalty for the PC
• 4-way audio conferencing — small meetings run from the handset
• Four programmable context-sensitive soft keys — functions follow the call state
• Wideband HD audio — G.722 and Opus support on handset and speakerphone
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• TLS, SRTP and 802.1x — with AES-based configuration file encryption

Technical specification

Telephony

• Up to 3 SIP accounts across 3 dual-colour line keys
• 4-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723.1, G.726, G.729A/B, iLBC, Opus

Display and keys

• 2.8-inch 320 × 240 TFT colour LCD
• 8 speed-dial and BLF extension keys with dual-colour LEDs
• 4 programmable context-sensitive soft keys

Network and wireless

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• IEEE 802.3af Class 2 PoE
• Bluetooth 2.1

Audio and headset

• HD handset and speakerphone with wideband audio
• RJ9 headset jack with EHS for Plantronics headsets

Power and physical

• Universal adapter: +12VDC, 0.5A (6W)
• Dimensions: 193mm wide × 211mm long × 85mm high
• Unit weight: 0.81kg

Security and provisioning

• TLS and SRTP encryption, MD5 authentication, 802.1x
• AES-based configuration file encryption
• Firmware upgrade via TFTP, HTTP, HTTPS, FTP or FTPS
• Mass provisioning via TR-069 or encrypted XML configuration file

Datasheet

Download the official Grandstream GXP2130 datasheet (PDF)

Works with

• Grandstream GXP2135 — 8 line keys, 4 accounts and 32 digital BLF positions
• PSU for GXP2130 — replacement mains adapter
• Grandstream GRP2614 — the current-generation successor with Wi-Fi 6
• Replacement curly cord
• All Grandstream IP phones
• Headsets

Frequently asked questions

What does the v2 designation mean?

It marks the revised hardware revision of the GXP2130. It is the version currently supplied and is the one covered by the linked datasheet.

Can I pair my mobile phone to it?

Yes. Bluetooth 2.1 is integrated, so a mobile can be paired for contact syncing, and Bluetooth headsets are supported.

Does it support an expansion module?

No. If you need expansion modules, the GXP2140 and GXP2170 support up to four cascaded GXP2200EXT units.

Are the Ethernet ports Gigabit?

Yes, both switched ports run at 10/100/1000 Mbps with integrated 802.3af PoE.

What replaces the GXP2130 in the current range?

The GRP2614 is the closest successor, adding a second labelling screen, Wi-Fi 6, more SIP accounts and GDMS provisioning.
