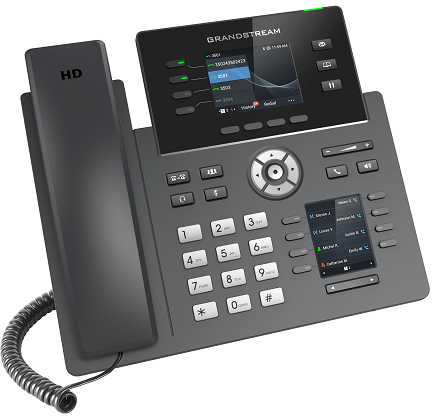

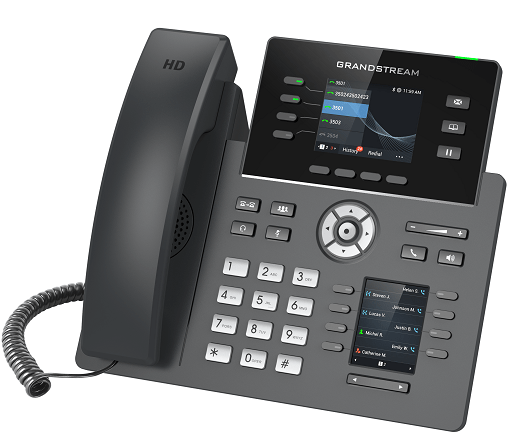

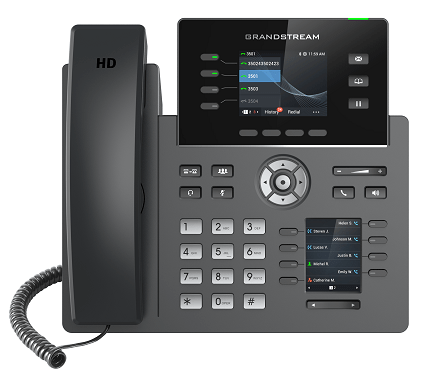

Grandstream GRP2614 Carrier Grade IP Phone

The Grandstream GRP2614 is the model where the carrier-grade GRP range starts to feel genuinely well equipped. Four line keys handle up to twelve SIP accounts, and a second 2.4-inch colour screen sits alongside the main 2.8-inch display purely to label the eight physical multi-purpose keys — so there are no paper inserts to reprint when someone changes desk or leaves.

Integrated dual-band Wi-Fi 6 and Bluetooth widen where it can be deployed. A hot desk in a converted mill with no data point, a home worker on a company extension, a manager who wants mobile contacts synced to the phone: all are straightforward without extra hardware. Gigabit ports and 802.3af PoE cover conventional desks, and the whole thing draws no more than 4W.

Ideal for

• Managers and team leaders covering multiple numbers or departments
• Hot desks and flexible offices where labels change often
• Home and hybrid workers needing a proper desk phone over Wi-Fi
• Listed or awkward buildings where running new data cabling is difficult
• Users who want mobile contacts and Bluetooth headsets on the desk phone
• Service providers offering a mid-tier handset with modern wireless

Key features

• Four line keys with up to 12 SIP accounts — ample registration headroom for multi-role users
• Eight physical MPK keys with a dedicated 2.4-inch screen — digital labels that update themselves, no paper inserts
• 2.8-inch 320 × 240 colour main display — clear caller and menu detail
• Integrated dual-band Wi-Fi 6 — 802.11a/b/g/n/ac/ax on 2.4GHz and 5GHz, so no data point is required
• Integrated Bluetooth — pair a wireless headset or sync contacts from a mobile
• Dual Gigabit Ethernet with integrated PoE — conventional wired deployment when you prefer it
• Left and right MPK page keys — move between banks of monitored extensions
• Wideband HD audio — G.722 and Opus for clearer conversations
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• 256-bit AES, SRTP, TLS and 802.1x — secure boot and encrypted configuration as standard

Technical specification

Telephony

• 4 line keys with up to 12 SIP accounts
• 3-way conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723, G.726, G.729A/B, iLBC, Opus
• In-band and out-of-band DTMF

Displays and keys

• Main display: 2.8-inch 320 × 240 TFT colour LCD
• Secondary display: 2.4-inch 320 × 240 screen for MPK labelling
• 8 MPK extension keys with dual-colour LEDs plus left and right page keys
• 4 XML programmable context-sensitive soft keys, 5 navigation keys, 11 dedicated function keys

Network and wireless

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• Integrated dual-band 2.4GHz and 5GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth

Power and physical

• Integrated Power over Ethernet, IEEE 802.3af
• Maximum power consumption: 3.5W via adapter, 4W via PoE
• 12V power adapter included
• Dimensions: 234 × 213 × 82.2 mm; unit weight 950g

Audio and headset

• HD handset and full-duplex speakerphone with wideband audio
• RJ9 headset jack with EHS for Plantronics headsets

Security

• 256-bit AES encrypted configuration file
• SRTP, TLS and 802.1x media access control
• Secure boot and dual firmware images

Datasheet

Download the official Grandstream GRP2614 datasheet (PDF)
