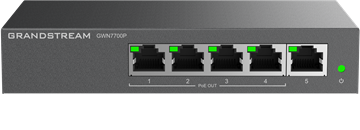

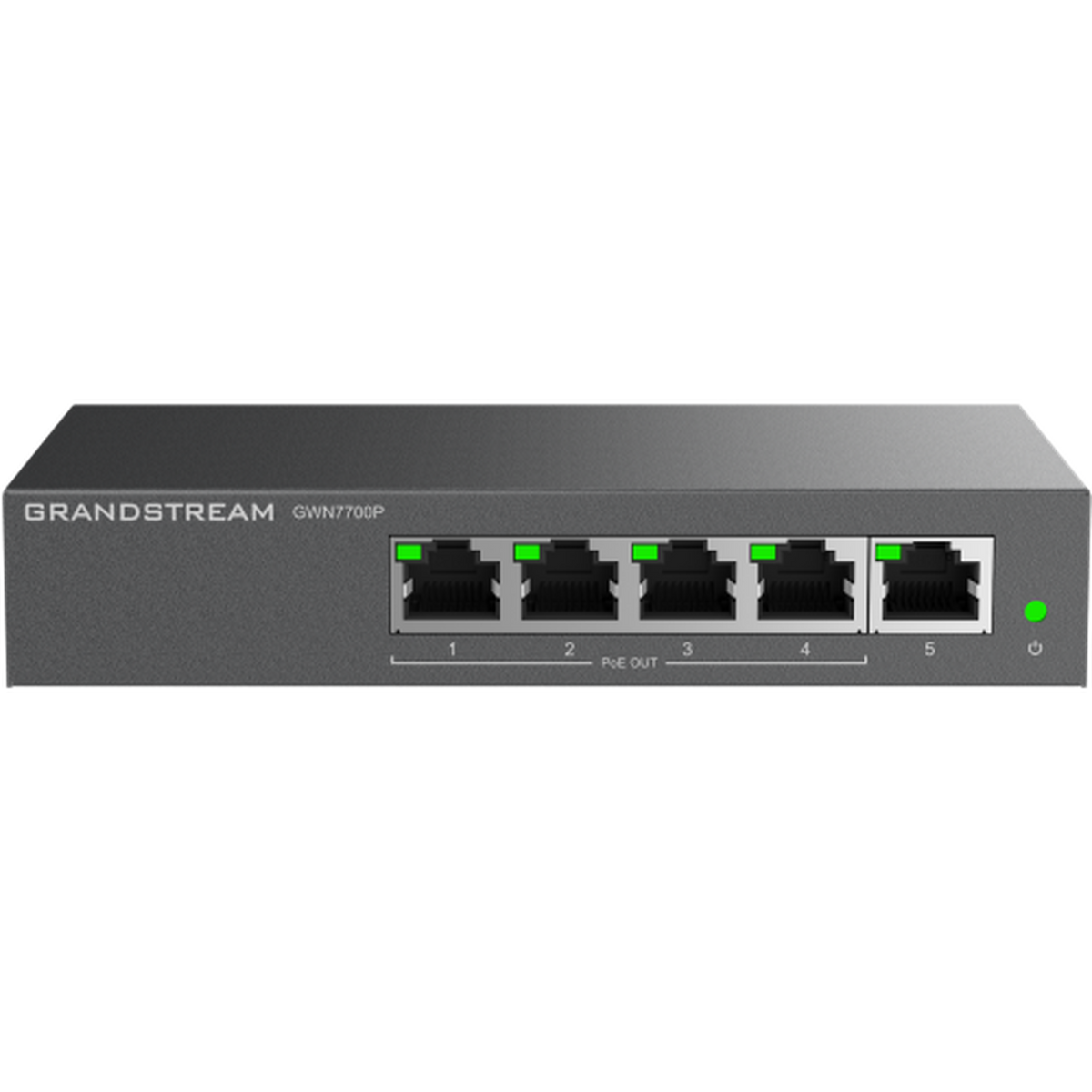

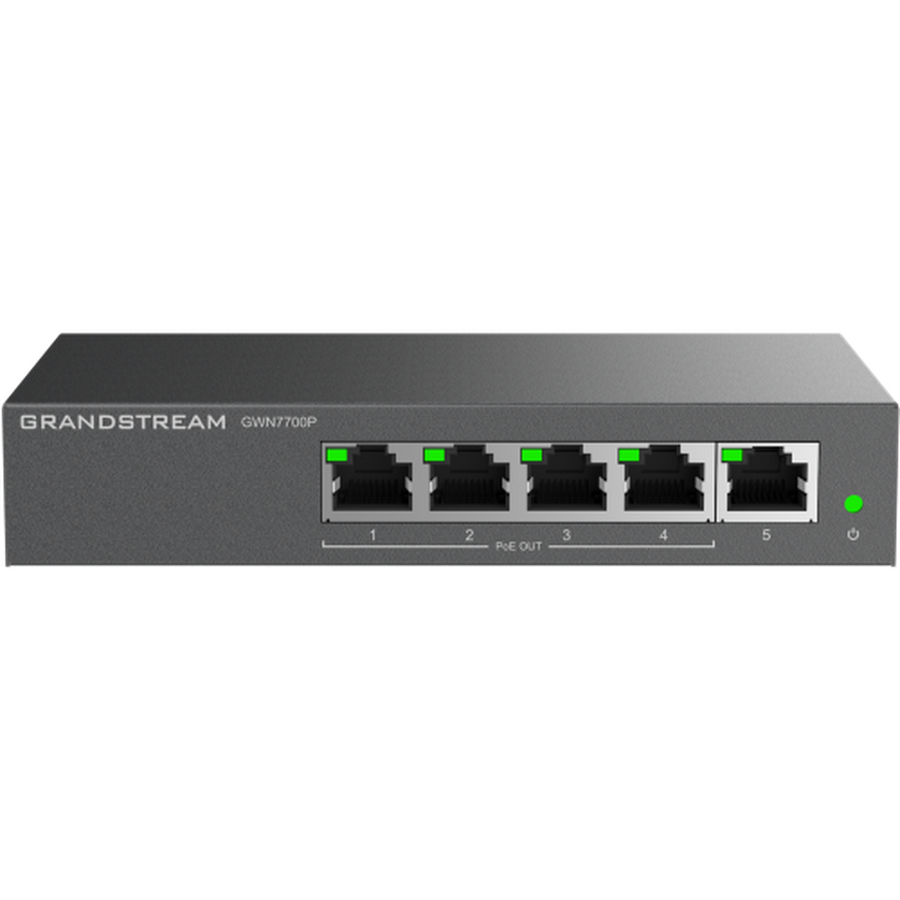

Grandstream GWN7700P 5-Port Gigabit 4-Port PoE+ Switch

The Grandstream GWN7700P is the smallest PoE switch in the range: five Gigabit ports, four of them PoE+, with nothing to configure. It exists for the situation everyone recognises — a couple of cameras or access points in a corner of a building with no PoE anywhere near them.

Four PoE ports share a 60 W budget, with up to 30 W available on any one port. Two demanding devices will use the whole budget; four desk phones will barely touch it. Count the draw, not the ports.

The fifth port is the uplink back to the rest of the network.

Key features

• 5 Gigabit ports, four with PoE+
• Up to 30 W per PoE port, 60 W total budget
• Unmanaged — no configuration, no web interface, nothing to break
• Fanless — silent
• Compact — fits behind a desk or in a small cabinet

Works with

• GWN7701P — 8 ports, 4 with PoE+
• GWN7701PA — 8 ports, all with PoE+
• GWN7700 — the same switch without PoE
• Grandstream GWN access points
• Grandstream IP phones
• All Grandstream switches

Frequently asked questions

Can all four PoE ports run at 30 W?

No. The total budget is 60 W across all of them — two devices at 30 W each will use the lot. For four access points or cameras, add up their real draw first.

Is five ports enough?

Four devices plus the uplink. If you need a fifth device, take the 8-port GWN7701P instead — chaining small switches together is how a network becomes hard to diagnose.

Unmanaged — what am I giving up?

VLANs, QoS and any visibility. If you need to separate voice, CCTV and guest traffic, you need a managed switch.

Do I need to configure it?

No. There is nothing to configure and no web interface.

Can I use it as a PoE injector?

Effectively yes, and for two or three devices it is often cheaper and tidier than separate injectors and their power supplies.
