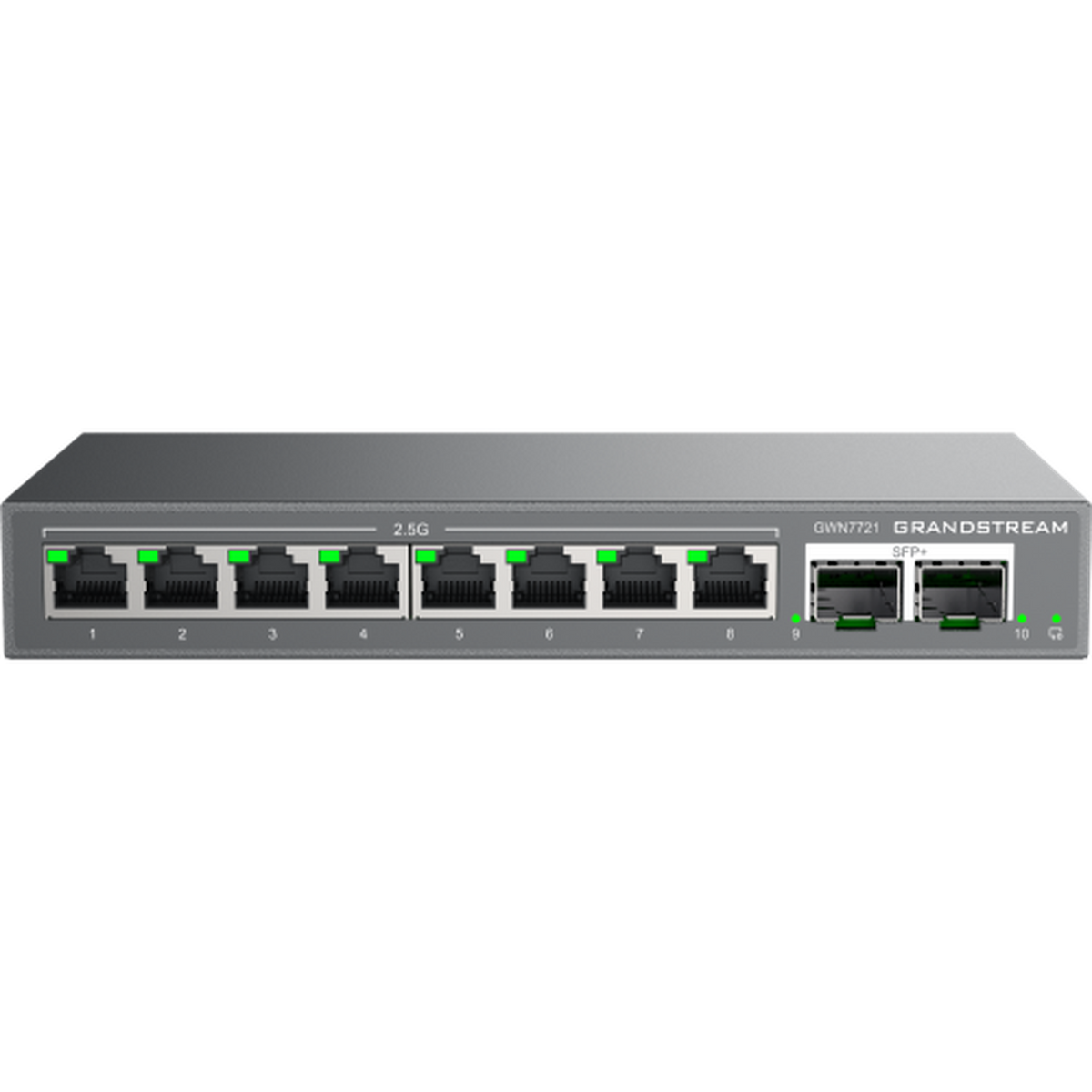

Grandstream GWN7721 10-Port Layer 2 Lite Managed 2.5 Gigabit Switch

The Grandstream GWN7721 is a ten-port Layer 2 Lite managed switch: eight 2.5-Gigabit copper ports and two 10-Gigabit SFP+ ports, with a web interface, VLANs and the option of cloud or on-premise management.

Two 10-Gigabit uplinks on a switch this size is the detail worth noticing. It means the switch can sit at the edge of a building and hand everything back to the core on fibre with room to spare, or be stacked logically alongside others without the uplink becoming the choke point.

Layer 2 Lite is the honest middle ground. You get VLANs, port settings, statistics and a management interface — which is what most small businesses actually need — without paying for Layer 3 routing that will never be configured. If the network needs inter-VLAN routing on the switch itself, look at the GWN78xx Layer 3 range instead.

Key features

• 8 × 2.5-Gigabit Ethernet ports — auto-negotiating 100M / 1G / 2.5G
• 2 × 10-Gigabit SFP+ ports — fibre uplinks with real headroom
• Layer 2 Lite management — VLANs, port control and statistics
• Web user interface — configure it directly, no controller required
• GDMS Networking — free cloud management alongside the rest of the estate
• GWN Manager — free on-premise software controller if the cloud is not an option
• Non-PoE — lower power draw and less heat than the PoE model

Works with

• Grandstream GWN7721P — the same switch with PoE on all eight ports
• Grandstream GWN7711 — the Gigabit Layer 2 Lite model where 2.5G is not needed
• Grandstream GWN7701M — the unmanaged eight-port 2.5G switch
• Grandstream GWN7832 — the 10G aggregation switch to uplink into
• SFP and SFP+ modules — buy in pairs; both ends must match
• All Grandstream networking

Frequently asked questions

What does Layer 2 Lite actually give me?

VLANs, port configuration, link aggregation, statistics and a management interface. What it does not give you is routing between VLANs — that stays with your router or a Layer 3 switch.

Does it supply PoE?

No. The GWN7721P is the PoE version, with up to 30 W per port and a 130 W total budget across its eight ports.

Do I need two 10G uplinks?

Not usually both — but having two lets you run a redundant path to the core, or aggregate them for 20 Gbps. Either is worth more than the modules cost.

Can I manage it without the cloud?

Yes, three ways: its own web interface, GWN Manager on your own server, or GDMS Networking in the cloud. All three are free.

Do I need 2.5G?

Only if something you own can use it — a modern access point, a NAS, a multi-gigabit adapter. On ordinary Gigabit devices it behaves like a Gigabit switch.

Are SFP+ modules included?

No. Buy them in pairs — both ends of a fibre run must be the same type and speed.
