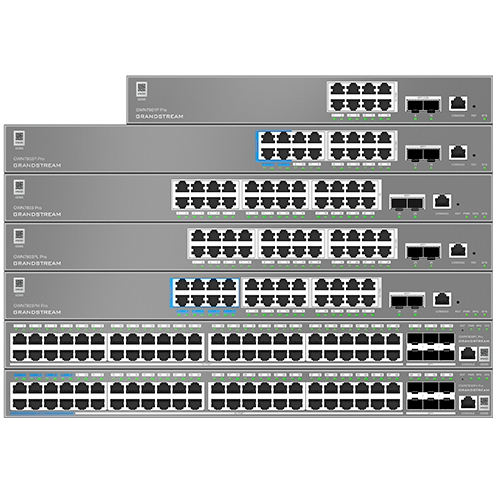

Grandstream GWN7803-PRO 24-Port Layer 2+ Managed Switch

The Grandstream GWN7803-PRO is the non-PoE member of Grandstream's GWN7800 Pro switch family: 24 Gigabit copper ports plus six SFP+ cages for 10 Gigabit uplinks or fibre runs between comms rooms. It is the switch to reach for when the edge devices bring their own power and what you actually need is fast, resilient aggregation with proper Layer 2+ control.

Compared with the standard GWN7800 range, the Pro models carry twice the RAM and CPU, which shows up as headroom when you push large ACL sets, many VLANs and heavy multicast at the same time. The feature list is genuinely enterprise: 4K VLANs, the full spanning tree family including PVST+ and RPVST+, eight link aggregation groups, 128 ACLs, and hardening features such as ARP inspection, IP source guard, DHCP snooping and DoS protection. Management costs nothing extra — use the embedded web controller, GDMS Networking in the cloud, on-premise GWN Manager, or the CLI.

Ideal for

• Comms room aggregation where 10G fibre uplinks are needed
• Offices whose desk devices are powered locally rather than over Ethernet
• Feeding PoE edge switches from a central non-PoE core
• Multi-VLAN networks separating voice, data, CCTV and guest traffic
• Schools and larger sites needing PVST+ or MSTP for loop-free redundancy
• Estates already managing Grandstream APs and phones through GDMS

Key features

• 24 Gigabit ports plus 6 x SFP+ — copper to the edge and up to 10 Gigabit fibre for uplinks or inter-rack links
• 88Gbps switching capacity — 65.472 Mpps forwarding rate with sub-4 microsecond latency
• Double the RAM and CPU of the standard series — headroom for large ACL, VLAN and multicast tables
• 4K VLANs — port-based, 802.1Q tagged and protocol-based VLAN support
• Full spanning tree family — STP, RSTP, MSTP, PVST+ and RPVST+ across 16 instances
• 8 link aggregation groups — up to 8 member ports each, for redundant high-bandwidth trunks
• 128 ACLs with 1.5K ACE — Ethernet, IPv4 and IPv6 filtering
• Network hardening built in — ARP inspection, IP source guard, DHCP snooping, port security and DoS protection
• Multicast handling — IGMP snooping v2/v3 and MLD snooping v1/v2, 256 groups each
• No licence fees — embedded web controller, GDMS Networking, GWN Manager and CLI all included

Technical specification

Ports and performance

• 24 x Gigabit Ethernet RJ45 ports
• 6 x SFP+ ports
• 1 x console management port and 1 x reset pinhole
• Switching capacity: 88Gbps
• Forwarding rate: 65.472 Mpps
• Non-blocking throughput: 44Gbps
• Network latency: under 4 microseconds
• MAC address table: 16K (static, dynamic and filtering entries)
• No PoE output on this model

Layer 2 features

• 4K VLANs: port-based, IEEE 802.1Q tagging and protocol-based
• STP, RSTP, MSTP, PVST(+) and RPVST(+) with 16 instances
• Link aggregation: up to 8 LAG groups with 8 members per group
• IGMP snooping (IGMPv2 and IGMPv3), 256 groups
• MLD snooping (MLDv1 and MLDv2), 256 groups

Security and QoS

• 128 ACLs for Ethernet, IPv4 and IPv6, with 1.5K ACE
• ARP inspection, IP source guard, DHCP snooping, port security and DoS protection
• QoS: port priority, queue scheduling, traffic shaping and rate limiting

Management

• Embedded local web GUI controller
• GDMS Networking cloud platform
• GWN Manager on-premise software
• Command line interface

Power, physical and environmental

• Input: 100–240V AC, 50/60Hz
• Maximum power consumption: 21.8W
• Dimensions: 440 x 200 x 44 mm (1U)
• Weight: 2.5 kg
• Mounting: desktop or 19-inch rack
• Operating temperature: 0°C to 45°C
• Humidity: 10% to 90% RH, non-condensing
