Grandstream GWN7803P 24-Port Gigabit Enterprise Layer 2+ Managed PoE Network Switch

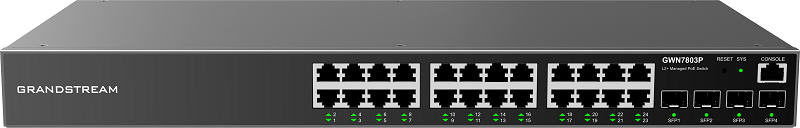

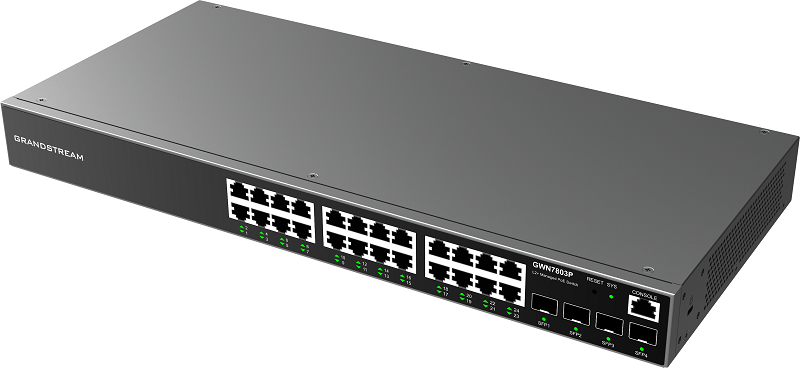

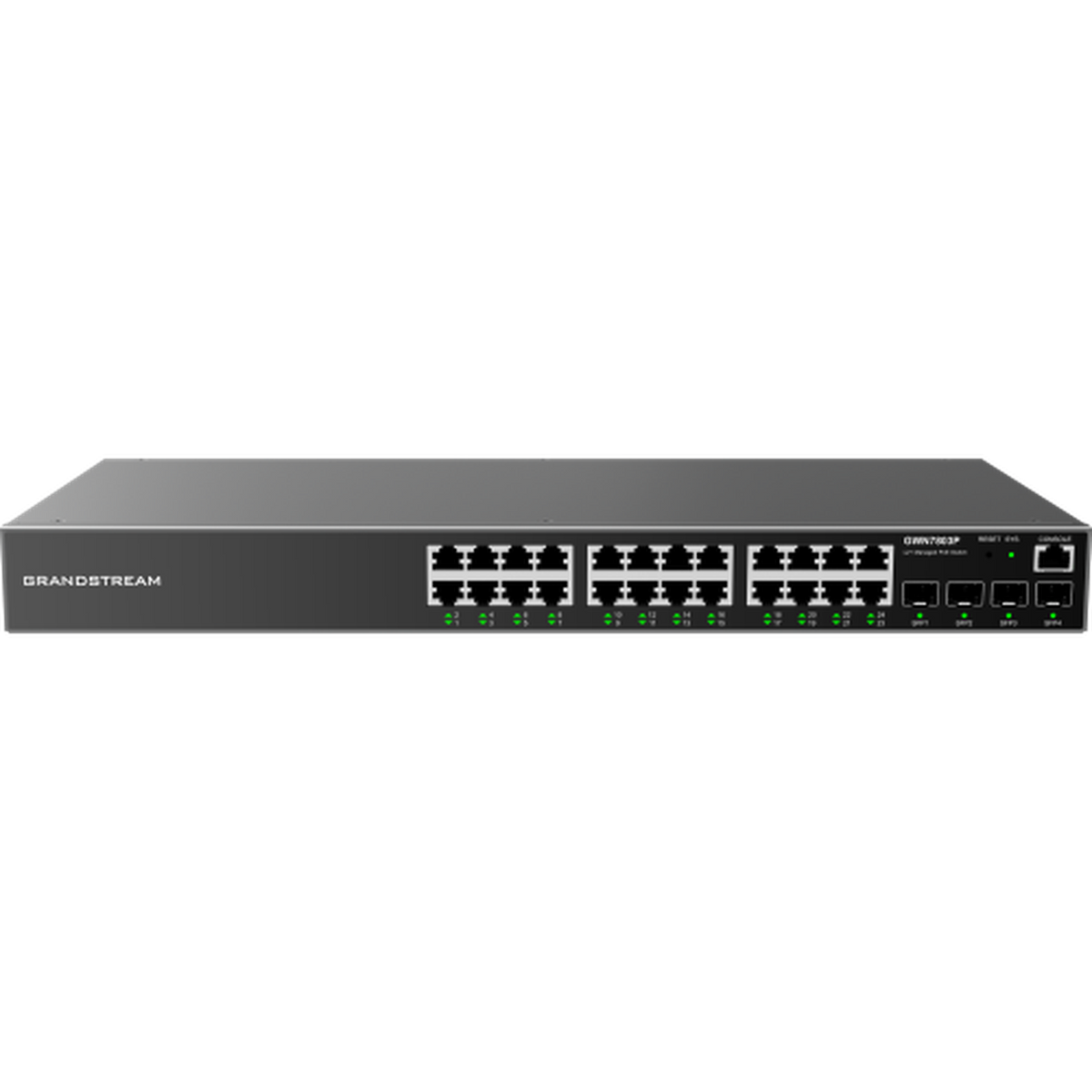

The Grandstream GWN7803P is a twenty-four-port Gigabit Layer 2+ managed switch with PoE+ on every port, a 360 W total budget and four SFP uplinks. It is the standard floor switch for a site that runs its phones, access points and cameras over the network cable.

360 watts is a comfortable budget at this size — 15 W per port with all twenty-four occupied, which suits a floor of desk phones with several access points among them. Four fibre uplinks give room to aggregate to the core and still keep a redundant path.

The management is what separates it from an unmanaged 24-port switch. VLANs to keep guest Wi-Fi away from the office network, QoS so a large file transfer does not break a call, and per-port statistics so a saturated link can be found rather than guessed at. GWN.Cloud and GWN Manager are both free, with no licence to renew.

Key features

• 24 × Gigabit Ethernet ports with PoE/PoE+ — IEEE 802.3af/at, up to 30 W per port
• 360 W total PoE budget — shared across all twenty-four ports
• 4 × SFP uplink ports — fibre to the core or to neighbouring cabinets
• Layer 2+ management — advanced VLANs, QoS and IGMP snooping
• Security features — protection against common network attacks
• Web user interface — configure it directly, no controller required
• GWN.Cloud and GWN Manager — free cloud and on-premise management, no licence

Works with

• Grandstream GWN7803 — the same switch without PoE
• Grandstream GWN7802P — 16 ports with a 240 W budget
• Grandstream GWN7803PL Pro — 24 ports with 10G SFP+ uplinks
• Grandstream GWN7813P — the Layer 3 version where routing is needed
• SFP modules — buy in pairs; both ends must match
• All network switches

Frequently asked questions

Can all twenty-four ports draw 30 W?

No. 30 W is the per-port maximum; 360 W is the total. Twenty-four devices at full PoE+ would need 720 W. Add up the actual wattages.

Will it power a PoE++ device?

No. This is 802.3af/at up to 30 W. For 802.3bt devices such as PTZ cameras or Wi-Fi 7 access points, the Pro series supplies 60 W per port.

What does Layer 2+ give me?

Advanced VLANs, advanced QoS for prioritising voice and video, and IGMP snooping so multicast does not flood the network. Routing between VLANs belongs to a router or a Layer 3 switch.

Do I need the Layer 3 version instead?

Only if VLANs on this switch need to route to each other with enough traffic to notice the round trip through the router. Otherwise Layer 2+ is the right tier and costs less.

Are the SFP ports 1G or 10G?

This model carries four Gigabit SFP ports. For 10-Gigabit uplinks, look at the GWN7803PL Pro or the Layer 3 range.

Does the management cost anything?

No. GWN.Cloud and GWN Manager are both free, and the switch's own web interface works without either.

Sizing a floor switch? Call 0333 242 1314 or email sales@clisecure.com with the device list and we will check the PoE budget with you.
