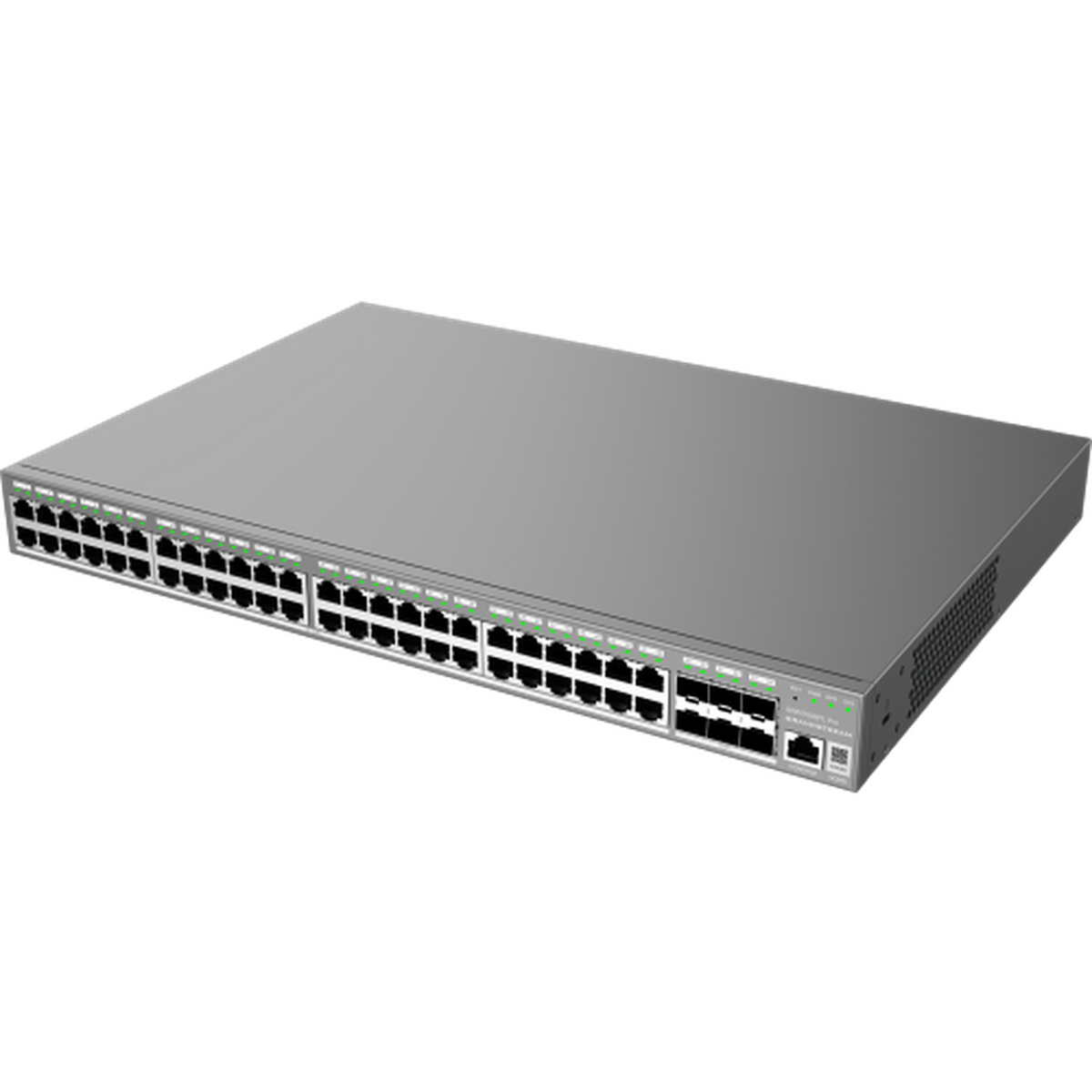

Grandstream GWN7806PL Pro 48-Port PoE Network Switch with 6 SFP+

The Grandstream GWN7806PL Pro is a forty-eight-port Gigabit PoE+ switch from the GWN7800 Pro range: IEEE 802.3at at up to 30 W per port, a 400 W total budget, six 10-Gigabit SFP+ uplinks and Layer 2++ management.

For most floors this is the right forty-eight-port switch. Desk phones, standard cameras and ordinary access points all sit comfortably inside 30 W, and 400 W across forty-eight ports covers a realistic mix without anyone reaching for an injector.

The letters matter. PL is 802.3at — 30 W per port, 400 W total. PH is 802.3bt — 60 W per port, 720 W total, and costs more. If nothing on the floor needs more than 30 W, the PL is the same switch for less money. Buy the PH only when a PTZ camera, a heated housing or a Wi-Fi 7 access point genuinely asks for 802.3bt.

Key features

• 48 × Gigabit Ethernet ports with PoE+ — IEEE 802.3at, up to 30 W per port
• 400 W total PoE budget — shared across all forty-eight ports
• 6 × 10-Gigabit SFP+ uplinks — aggregate or run redundant paths to the core
• Layer 2++ management — advanced VLANs, QoS and IGMP snooping
• Web user interface — configure it directly, no controller required
• GWN.Cloud and GWN Manager — free cloud and on-premise management
• Backward compatible with 802.3af — older devices connect normally

Works with

• Grandstream GWN7806PH Pro — the same switch at 60 W per port and 720 W total
• Grandstream GWN7803PL Pro — the 24-port version at the same power class
• Grandstream GWN7802P Pro — 16 ports, PoE++ where a few devices need it
• Grandstream GWN7832 — the 10G aggregation switch to uplink into
• SFP+ modules — buy in pairs; both ends must match
• All Grandstream networking

Frequently asked questions

PL or PH — which do I need?

PL unless something needs more than 30 W or the total draw exceeds 400 W. The ports, uplinks and management are identical; only the power stage and the price differ.

Can all forty-eight ports deliver 30 W?

No. 30 W is the per-port maximum; 400 W is the total. That is a realistic budget for a floor of phones and access points, not for forty-eight PoE+ devices at full draw.

Will it power a PTZ camera?

Only if the camera is within 30 W. Heated housings and larger PTZ units usually are not — those need the PH or an injector.

Why six SFP+ ports?

Because a forty-eight-port switch generates enough traffic to need more than one uplink. Use two aggregated to the core, keep one for a redundant path, and the rest are spare.

What does Layer 2++ mean here?

Advanced VLANs, advanced QoS for prioritising voice and video, and IGMP snooping so multicast does not flood the network. Inter-VLAN routing still belongs to a router or a Layer 3 switch.

Are SFP+ modules included?

No. Buy them in pairs — both ends of a fibre run must be the same type and speed.

Specifying a floor switch? Call 0333 242 1314 or email sales@clisecure.com with the device list and the wattages, and we will tell you whether PL or PH is the right one.
