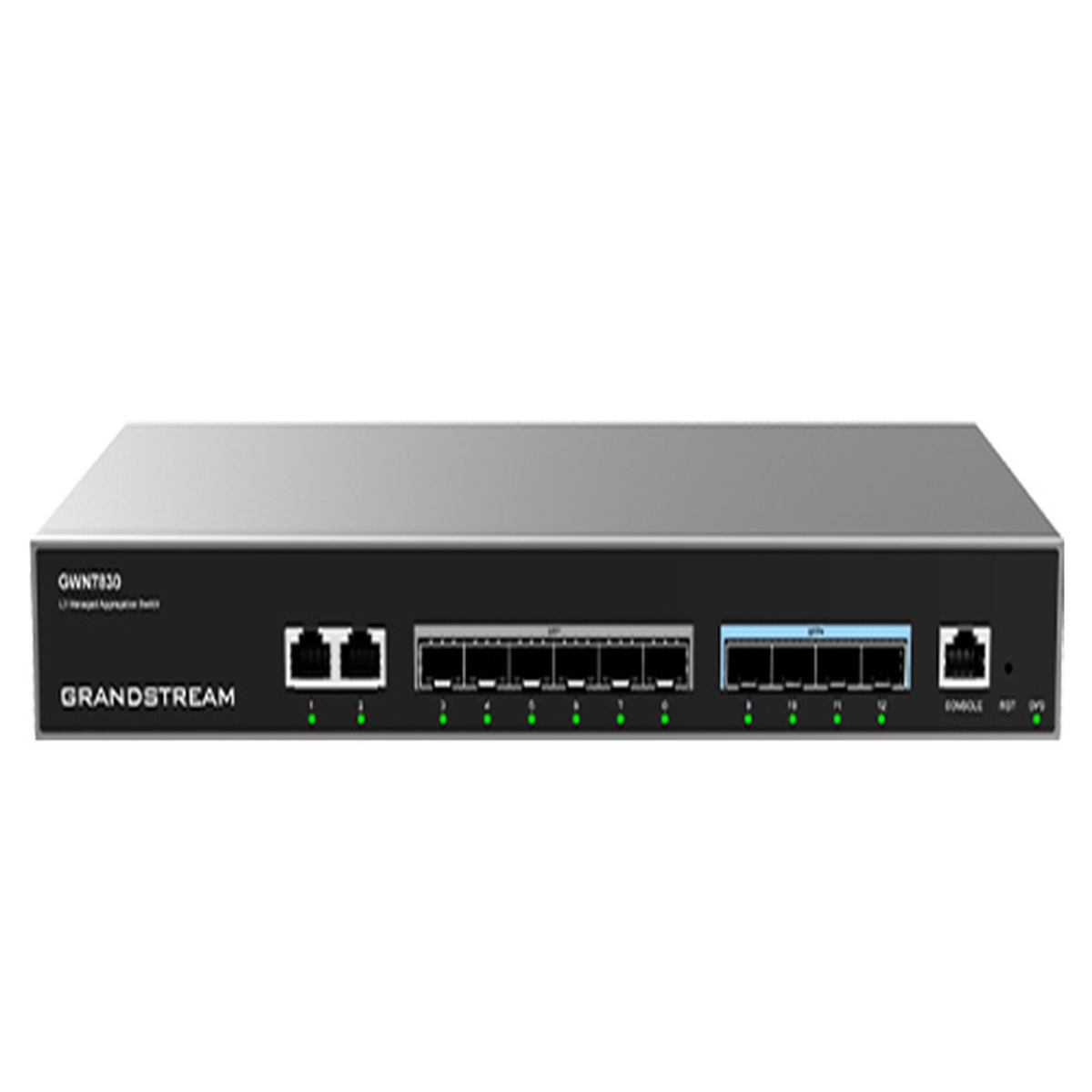

Grandstream GWN7830 12Ports Layer 3 Aggregation Managed Switch

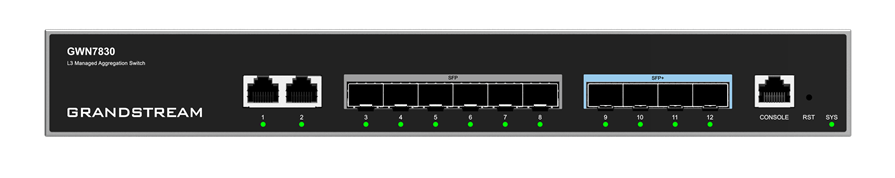

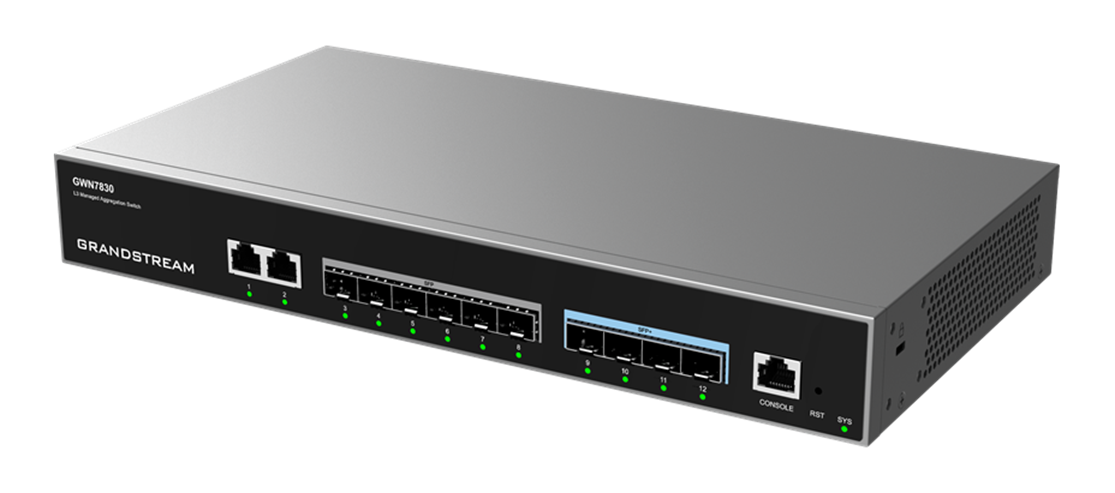

The Grandstream GWN7830 is an enterprise Layer 3 aggregation switch built around fibre: four 10-Gigabit SFP+ ports, six Gigabit SFP ports and two Gigabit copper ports, with 96 Gbps of switching capacity and a 71.4 Mpps forwarding rate.

It is the box that sits between the access switches and the core. Each floor or building runs its uplink into one of these, and the 10-Gigabit SFP+ ports carry the aggregate onward — so a busy floor cannot slow a quiet one, and a fault can be isolated to a single link rather than a shared chain.

Budget for the optics, and read the port mix carefully. Only two of the twelve ports are copper. This is a switch for a site that already runs fibre between cabinets or buildings; if what you actually need is copper density, an access switch with SFP+ uplinks is the cheaper and more useful product. Fully populated, ten fibre ports means twenty modules across both ends of every run.

Key features

• 4 × 10-Gigabit SFP+ ports — the high-speed path to the core
• 6 × Gigabit SFP ports — for existing 1G fibre runs to cabinets and outbuildings
• 2 × Gigabit copper ports — for management or a local device
• 96 Gbps switching capacity — 48 Gbps non-blocking throughput, 71.4 Mpps forwarding
• Layer 3 routing in hardware — routing at the distribution layer
• Advanced VLANs and QoS — traffic segmentation and prioritisation
• IGMP and MLD snooping — multicast does not flood the network
• Security features — ARP inspection, IP source guard, DHCP snooping, port security
• GWN.Cloud and GWN Manager — free cloud and on-premise management

Works with

• Grandstream GWN7831 — 28 ports with 20 Gigabit SFP for larger fibre plant
• Grandstream GWN7832 — twelve 10-Gigabit SFP+ ports, all fibre
• Grandstream GWN7816 — a 48-port access switch to aggregate
• Grandstream GWN7812P — a PoE floor switch with 10G uplinks
• SFP and SFP+ modules — not included; buy in pairs and match both ends
• All network switches

Frequently asked questions

Only two copper ports — is that a mistake?

No, it is the design. An aggregation switch connects other switches, and it does that over fibre. If you need copper ports for devices, use an access switch with SFP+ uplinks instead.

Are modules included?

No. Every link needs a module at both ends and they must match. Ten fibre ports fully populated is twenty modules across the runs — price that in from the start.

Can I use it as a core switch?

For a small or medium network, yes. With Layer 3 routing and 96 Gbps of capacity it can act as both the distribution and the core layer in most single-site buildings.

Do I need an aggregation switch at all?

If you have more than two or three access switches, almost certainly. Chaining switches to each other makes every hop a shared bottleneck and makes faults much harder to isolate.

How is it different from the GWN7832?

Port mix. The GWN7832 is twelve 10-Gigabit SFP+ ports and nothing else. The GWN7830 mixes four 10G SFP+ with six 1G SFP and two copper, which suits sites with existing Gigabit fibre.

Can it be managed with our other GWN kit?

Yes. GWN.Cloud and GWN Manager cover switches and access points in one view, both free.

Designing a distribution layer? Call 0333 242 1314 or email sales@clisecure.com and we will work out the fibre count and the optics with you.
