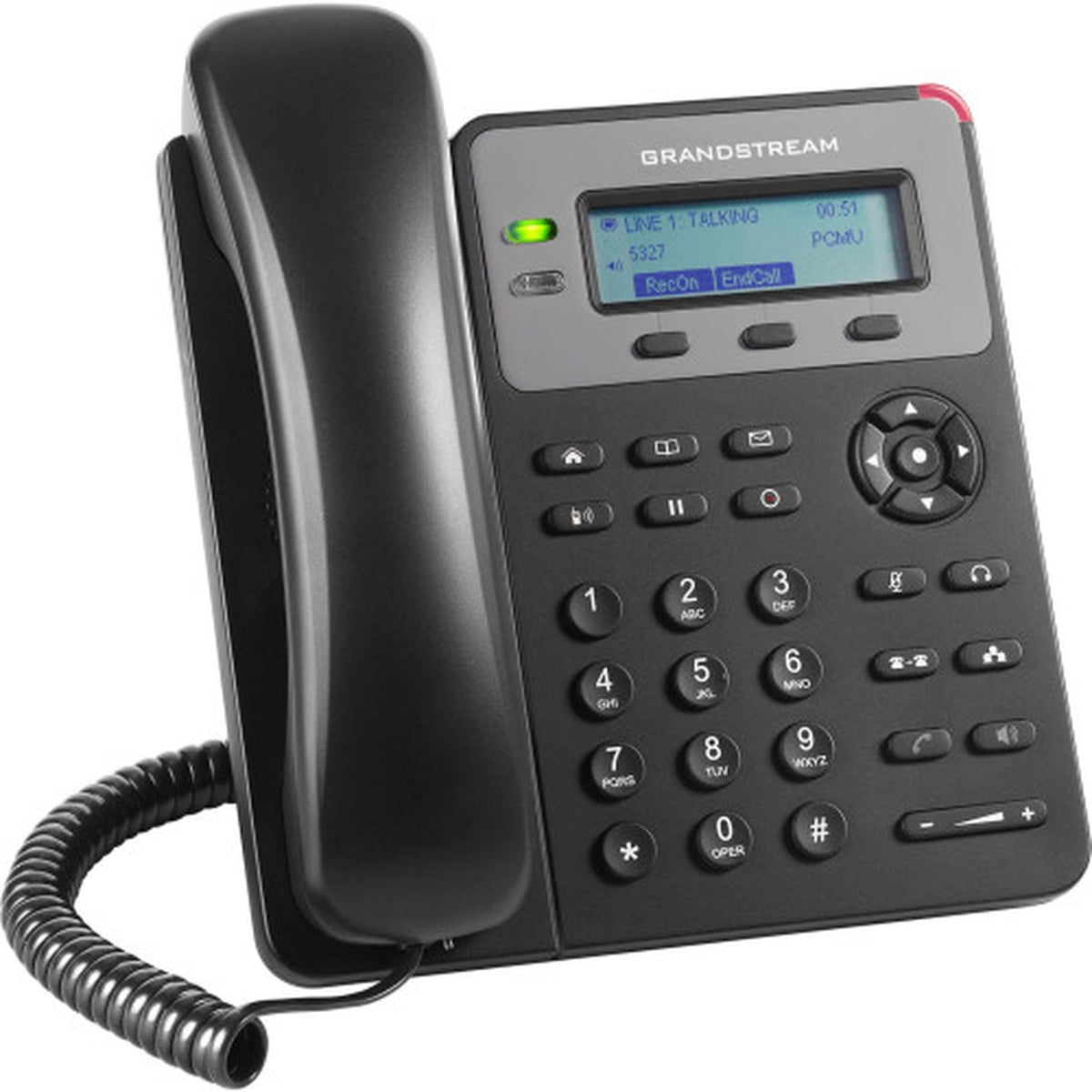

Grandstream GXP1610 1-Line SIP Phone

The Grandstream GXP1610 is the long-serving budget workhorse of the GXP range. It gives a desk two SIP accounts, two call appearances and a 2.95-inch backlit LCD, along with the thirteen dedicated function keys that make everyday operations — hold, transfer, conference, redial, mute — a single press rather than a menu dive.

It is deliberately basic, and that is the point. For a stockroom, a spare desk, a meeting room or a site office, a phone that boots reliably, provisions from a central server and needs no training is worth more than a colour screen. A 1000-entry downloadable phonebook and 200-record call history cover the practical needs, and the phone provisions in bulk over TR-069 or encrypted XML. Note that this model uses its supplied mains adapter; the GXP1610P and GXP1615 add Power over Ethernet.

Key features

• Two SIP accounts with two call appearances — enough for a personal extension plus a shared number
• 2.95-inch 132 × 48 LCD — one of the larger displays at this price point
• Thirteen dedicated function keys — page/intercom, phonebook, message, hold, record, mute, headset, transfer, conference, redial, speakerphone and volume
• Three programmable soft keys — context-sensitive functions above the display
• 3-way audio conferencing — bring a third party into a call from the handset
• 1000-entry downloadable phonebook — XML or LDAP directory pushed from your platform
• 200-record call history — ample for a shared or occasional-use position
• Wideband G.722 support — better speech quality than narrowband-only budget phones
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• TR-069 and encrypted XML provisioning — deploy hundreds of units without touching each one

Technical specification

Telephony

• 2 SIP accounts, up to 2 call appearances
• 3-way audio conferencing
• Codecs: G.711µ/a, G.722 (wideband), G.723, G.726-32, G.729A/B, iLBC
• In-band and out-of-band DTMF

Display and keys

• 132 × 48 pixel, 2.95-inch LCD
• Dual-colour LED line keys
• 3 programmable soft keys
• 13 dedicated function keys

Directory

• Downloadable phonebook via XML or LDAP, up to 1000 entries
• Call history up to 200 records

Network and power

• Dual switched auto-sensing 10/100 Mbps Ethernet ports
• Integrated PoE on the GXP1610P and GXP1615 only, IEEE 802.3af Class 2, 3.84–6.49W
• Universal power supply, 100–240VAC

Physical

• Dimensions: 209 × 184.5 × 76.2 mm
• Weight: 0.74kg

Security and provisioning

• TLS signalling and SRTP media encryption
• Mass provisioning via TR-069 or AES-encrypted XML configuration file

Datasheet

Download the official Grandstream GXP1610 datasheet (PDF)

Works with

• Grandstream GXP1615 — the same phone with Power over Ethernet
• PSU for GXP16xx — replacement mains adapter
• Replacement curly cord
• Grandstream GRP2601 — the current-generation entry-level replacement
• All Grandstream IP phones
• IP PBX solutions

Frequently asked questions

Does the GXP1610 support PoE?

Not this model. The standard GXP1610 uses its supplied mains adapter. For Power over Ethernet, choose the GXP1610P or the GXP1615.

Is it really a one-line phone?

It supports two SIP accounts and two call appearances, so a user can take a second call while the first is on hold. It is often listed as a one-line phone because it has a single physical line key area.

How many contacts can it store?

Up to 1000 entries in a downloadable XML or LDAP phonebook, plus 200 call history records.

Is the GXP1610 still worth buying?

It remains a dependable low-cost option and is still widely stocked. If you want a current-generation equivalent with GDMS provisioning and better security, the GRP2601 is the natural successor.

Can I deploy hundreds of these automatically?

Yes. TR-069 and AES-encrypted XML configuration files allow bulk provisioning, which is why the GXP1610 became a staple of hosted voice rollouts.
