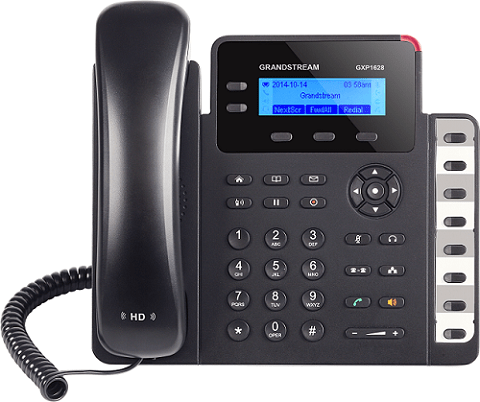

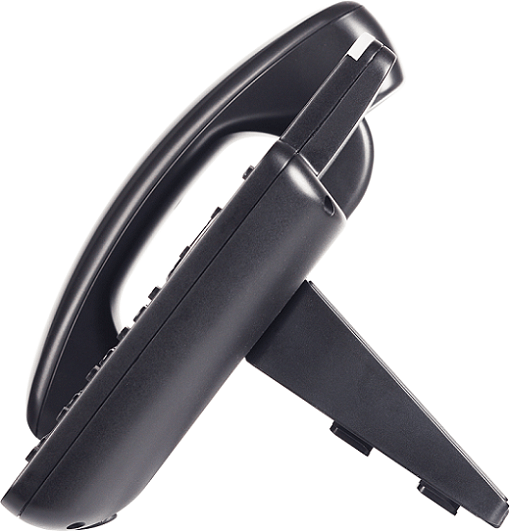

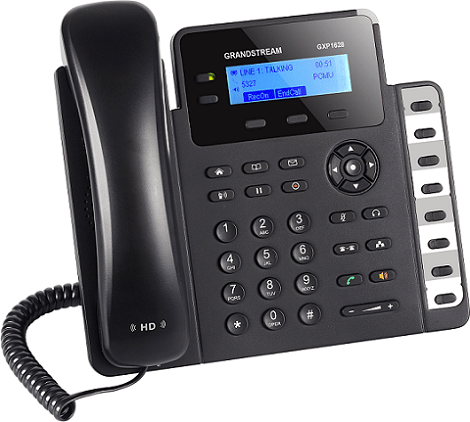

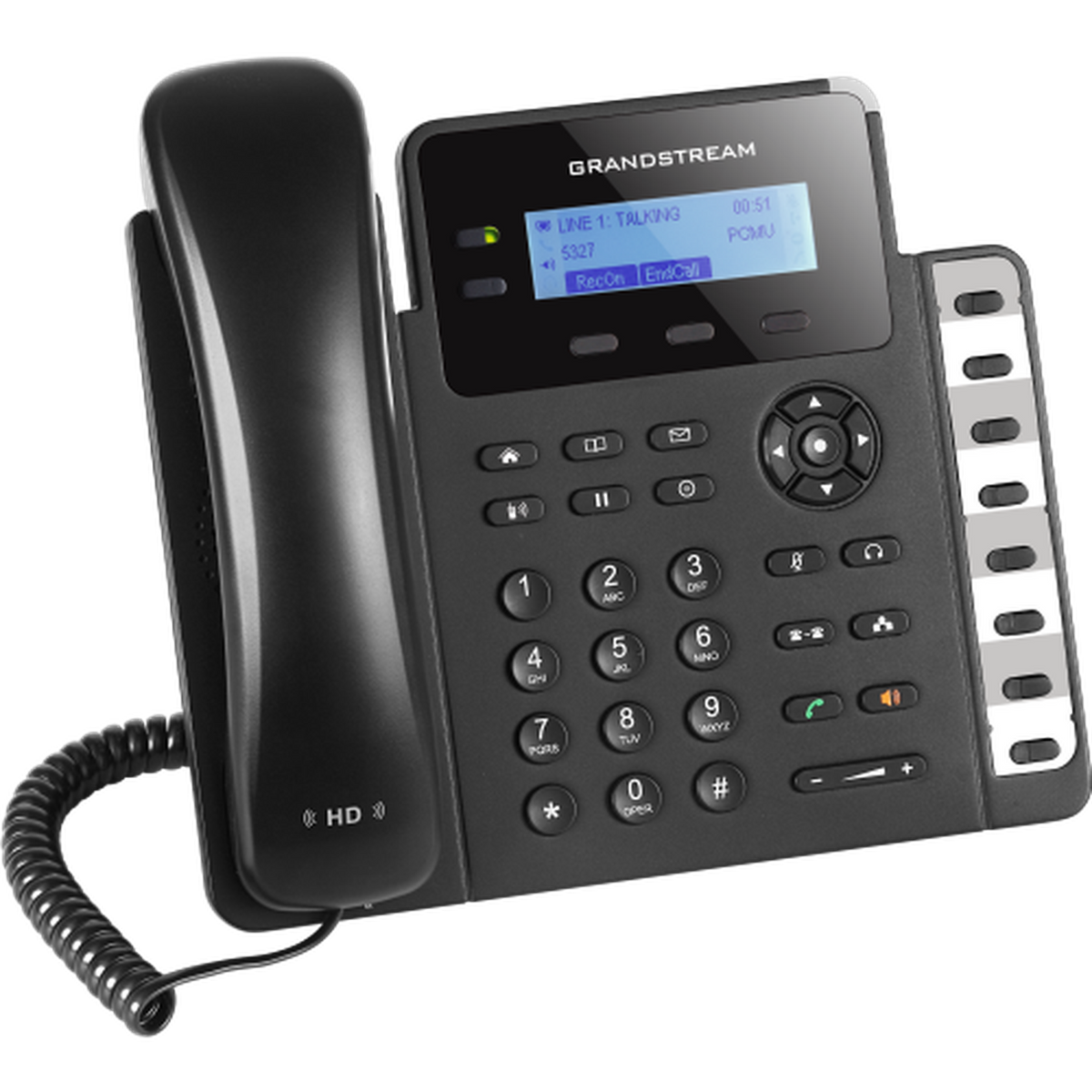

Grandstream GXP1628 HD IP Phone

The Grandstream GXP1628 is the GXP16xx model that earns its place on a busy desk. Alongside the familiar two lines and 2.95-inch backlit display it carries eight dedicated BLF keys, so a user can see which colleagues are free and transfer to them with one press rather than looking up an extension.

It also moves the network ports up to Gigabit and adds integrated 802.3af PoE, which removes the two most common complaints about budget handsets: a PC throttled to 100 Mbps and an adapter cluttering the desk. For reception overflow, small team leaders and anyone who transfers calls regularly, it is a noticeably more capable phone than the GXP1620 or GXP1625 for a modest step up in price.

Key features

• Eight dedicated BLF keys — see colleague status and transfer with one press
• Dual Gigabit Ethernet ports — the PC behind the phone keeps full network speed
• Integrated 802.3af Class 2 PoE — one cable to the desk, no adapter needed
• Two dual-colour LED line keys — clear visual state for each line
• 2.95-inch backlit graphical LCD — readable in poorly lit offices
• 3-way conferencing — add a third party without the PBX bridge
• Thirteen dedicated function keys — everyday actions stay a single press
• 1000-entry XML or LDAP phonebook — company directory pushed to every phone
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• TLS, SRTP, HTTPS and 802.1x — with 256-bit AES encrypted configuration files

Technical specification

Telephony

• 2 lines, 2 SIP accounts, up to 2 call appearances
• 8 BLF keys
• 3-way conferencing
• Codecs: G.711µ/a, G.722 (wideband), G.723, G.726-32, G.729A/B, iLBC

Display and keys

• 132 × 48 pixel, 2.95-inch backlit graphical LCD
• 2 line keys with dual-colour LEDs
• 13 dedicated function keys

Network and power

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
• Integrated Power over Ethernet, IEEE 802.3af Class 2, 3.84–6.49W
• Universal power supply: 100–240VAC 50/60Hz input, +5VDC 600mA output

Directory and headset

• Downloadable phonebook via XML or LDAP, up to 1000 entries
• RJ9 headset jack with EHS for Plantronics headsets

Physical

• Dimensions: 220.5 × 192.5 × 76.0 mm
• Weight: 0.8kg

Security and provisioning

• TLS, SRTP, HTTPS and 802.1x
• 256-bit AES encrypted configuration file
• Firmware upgrade via TFTP, HTTP or HTTPS; mass provisioning via TR-069

Datasheet

Download the official Grandstream GXP1628 datasheet (PDF)

Works with

• Grandstream GXP1630 — adds a third line and 4-way conferencing
• Grandstream GXP1625 — the simpler two-line PoE alternative
• Grandstream GWN7801P PoE switch
• Replacement curly cord
• All Grandstream IP phones
• Headsets

Frequently asked questions

What can the eight BLF keys be used for?

Each can monitor a colleague's extension, showing idle, ringing or busy status, or be set as a speed dial to any number if presence monitoring is not needed.

Does the GXP1628 have Gigabit ports?

Yes. Both switched ports are 10/100/1000 Mbps, so a daisy-chained PC keeps full speed — unlike the GXP1620 and GXP1625.

Is PoE included?

Yes, integrated IEEE 802.3af Class 2 PoE. A mains adapter is only needed where the switch does not provide power.

How does it compare with the GXP1630?

The GXP1630 adds a third line and account, a slightly larger 132 × 64 display and 4-way conferencing, but keeps the same eight BLF keys.

Is there a current-generation equivalent?

The GRP2604 is the closest modern replacement, with ten BLF keys, six SIP accounts and GDMS provisioning.

Comparing the GXP1628 with the newer GRP range? Call 0333 242 1314 or email sales@clisecure.com.
