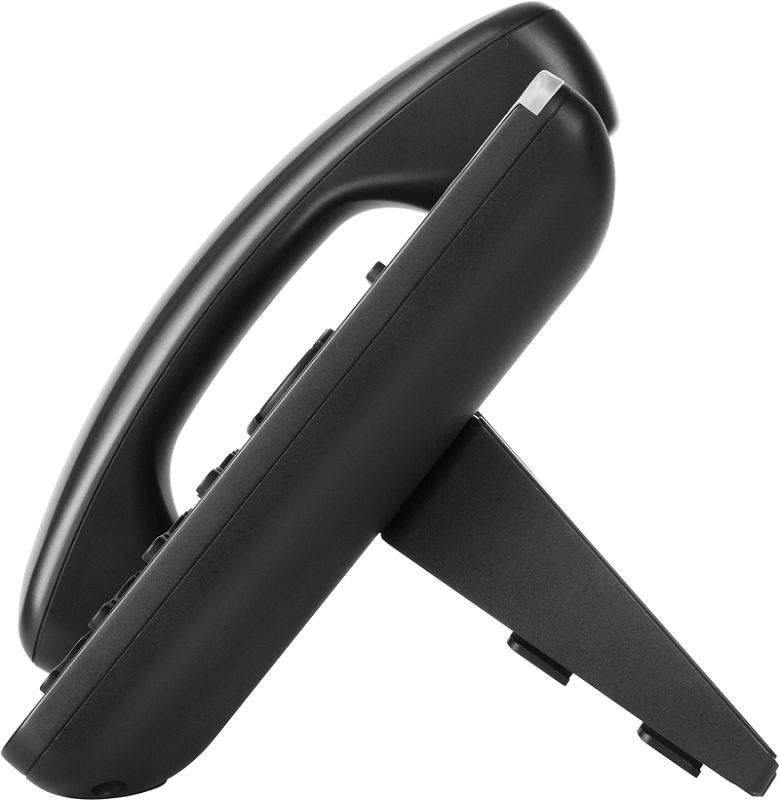

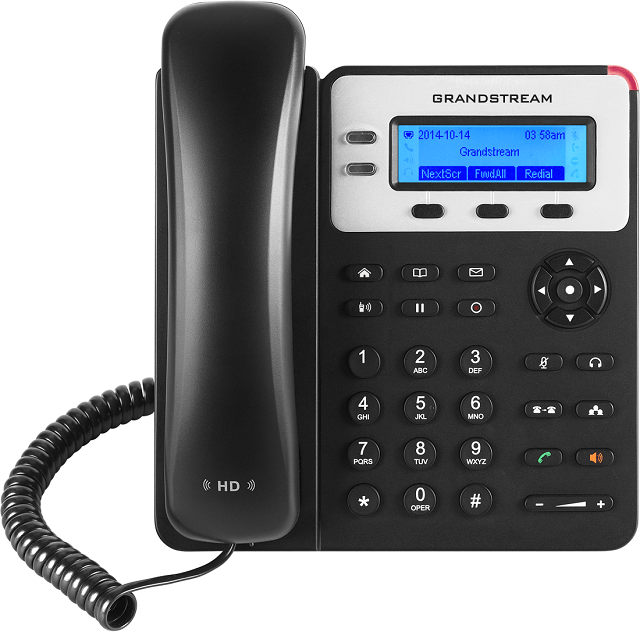

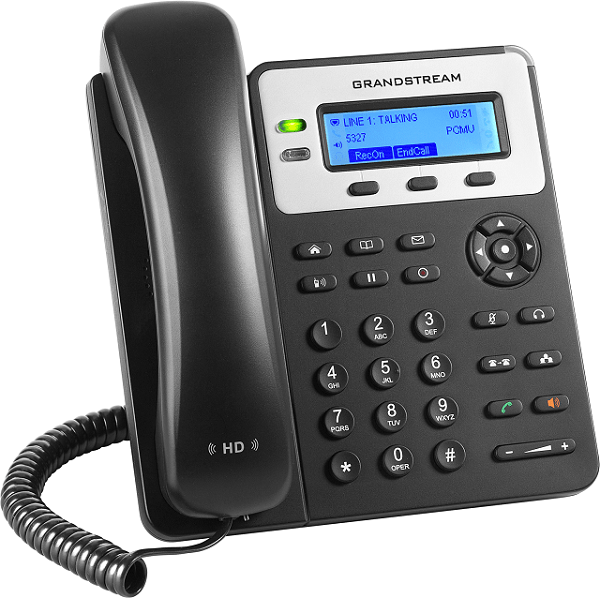

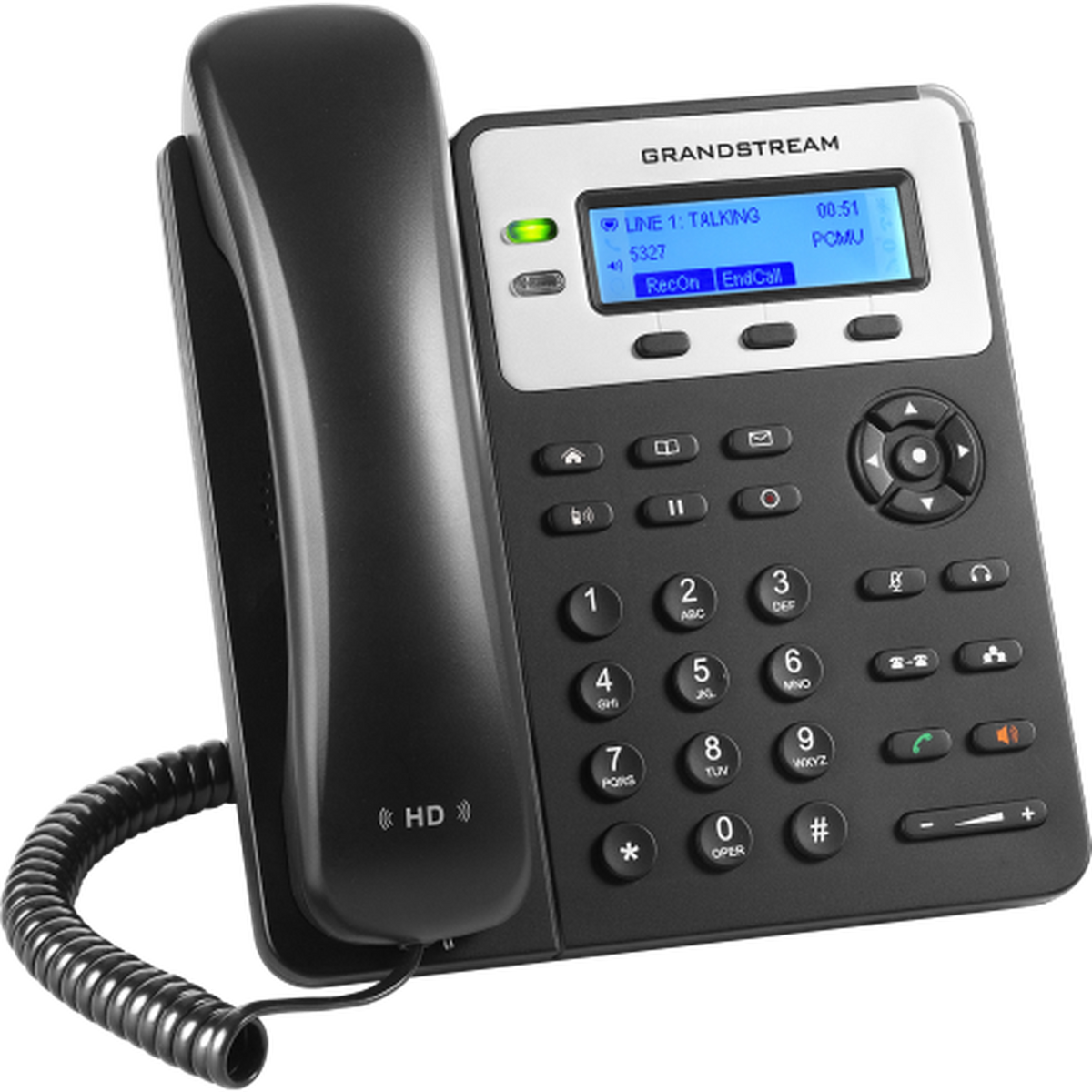

Grandstream GXP1625 HD IP Phone

The Grandstream GXP1625 is the Power over Ethernet member of the GXP1620 pair. Two dual-colour line keys, a 2.95-inch backlit LCD and two SIP accounts cover everyday office calling, and the built-in PoE means the only thing arriving at the desk is a single network cable.

For anyone fitting out a floor, that saves a socket per position and makes remote power-cycling possible from the switch. HD audio, 3-way conferencing, a 1000-entry downloadable directory and 256-bit AES encrypted provisioning make it a dependable general-purpose handset for offices, schools and shared workspaces that want low cost without a phone that feels like a compromise.

Ideal for

• Office fit-outs where every desk is cabled for PoE
• Schools, colleges and training facilities
• Shared workspaces and serviced offices
• Desks with no accessible mains socket
• Meeting rooms and common areas
• Hosted providers supplying a low-cost PoE handset as standard

Key features

• Built-in Power over Ethernet — one cable delivers data and power to the desk
• Two dual-colour LED line keys — see line state without reading the screen
• 2.95-inch backlit graphical LCD — legible in poorly lit rooms
• Two SIP accounts with two call appearances — hold one call and take another
• Three XML programmable soft keys — context-sensitive functions above the display
• Thirteen dedicated function keys — hold, transfer, conference and the rest are one press
• 3-way audio conferencing — add a third party without a bridge
• 1000-entry XML or LDAP phonebook — push a company directory to every handset
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• 256-bit AES configuration encryption and 802.1x — safe provisioning across untrusted networks

Technical specification

Telephony

• 2 lines, 2 SIP accounts, up to 2 call appearances
• 3-way audio conferencing
• Codecs: G.711µ/a, G.722 (wideband), G.723, G.726-32, G.729A/B, iLBC

Display and keys

• 132 × 48 pixel, 2.95-inch backlit graphical LCD
• 2 line keys with dual-colour LEDs
• 3 XML programmable soft keys and 13 dedicated function keys

Network and power

• Dual switched auto-sensing 10/100 Mbps Ethernet ports
• Built-in Power over Ethernet
• Optional universal power supply: +5VDC, 600mA

Audio and headset

• HD handset and speakerphone
• RJ9 headset jack with EHS for Plantronics headsets

Physical

• Dimensions: 209 × 184.5 × 76.2 mm with handset
• Weight: 0.73kg unit, 1.1kg packaged

Security and provisioning

• TLS and SRTP encryption
• 256-bit AES encrypted configuration file, 802.1x
• Firmware upgrade via TFTP, HTTP or HTTPS; mass provisioning via TR-069 or encrypted XML

Datasheet

Download the official Grandstream GXP1625 datasheet (PDF)
