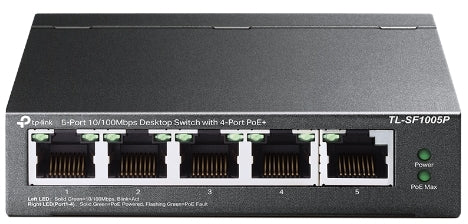

TP-Link SF1005P 5 Port PoE Switch

The TP-Link SF1005P is a five-port PoE switch with four PoE+ ports, built for small surveillance and voice installs where budget matters more than gigabit speed. Each PoE+ port delivers up to 30 W to IEEE 802.3af/at compliant devices, with 67 W available across all ports — comfortably enough for a handful of IP cameras or IP phones.

Surveillance-friendly touches set it apart at this price: Extend Mode pushes data and power up to 250 m for far-flung cameras, Priority Mode protects traffic on ports 1–2, and PoE Auto Recovery automatically reboots any powered device that drops or stops responding — no ladder trips to power-cycle a hung camera.

Need more ports? The SF1008P and SF1009P follow the same formula; for Gigabit PoE, look at the SG1005LP.

Key features

• Four PoE+ ports carrying data and power over one cable to 802.3af/at devices.
• Up to 30 W per port, 67 W total — sized for cameras, APs and IP phones.
• Extend Mode — up to 250 m of data and power for long surveillance runs.
• Priority Mode on ports 1–2 keeps sensitive feeds smooth when the switch is busy.
• PoE Auto Recovery reboots dropped or unresponsive powered devices automatically.
• Plug and play — no configuration or installation software required.

Works with

• TP-Link SF1008P — 8-port sibling with the same PoE toolkit
• TP-Link SG1005LP — the Gigabit alternative at 5 ports
• TP-Link EAP225 — 802.3af/at access point it can power
• All switches
• All networking

Frequently asked questions

How much power can it supply?

Up to 30 W on each PoE+ port and up to 67 W across all four PoE ports. Add up your devices' draw and leave a little headroom when planning.

What does Extend Mode actually do?

It stretches data and power transmission to as much as 250 m — designed for surveillance systems where cameras sit well beyond the standard 100 m Ethernet reach.

Does it need configuring?

No — it is unmanaged and works the moment it is plugged in. Modes are selected on the unit itself, not through software.

What is in the box?

The SF1005P switch, its power cube (53.5 V / 1.31 A), a UK IEC cable, an installation guide and four rubber feet.
