Grandstream GRP2624 8-Line Carrier-Grade IP Phone

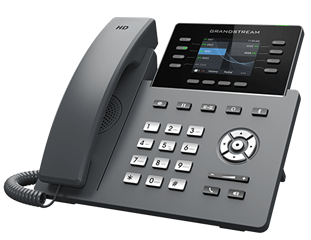

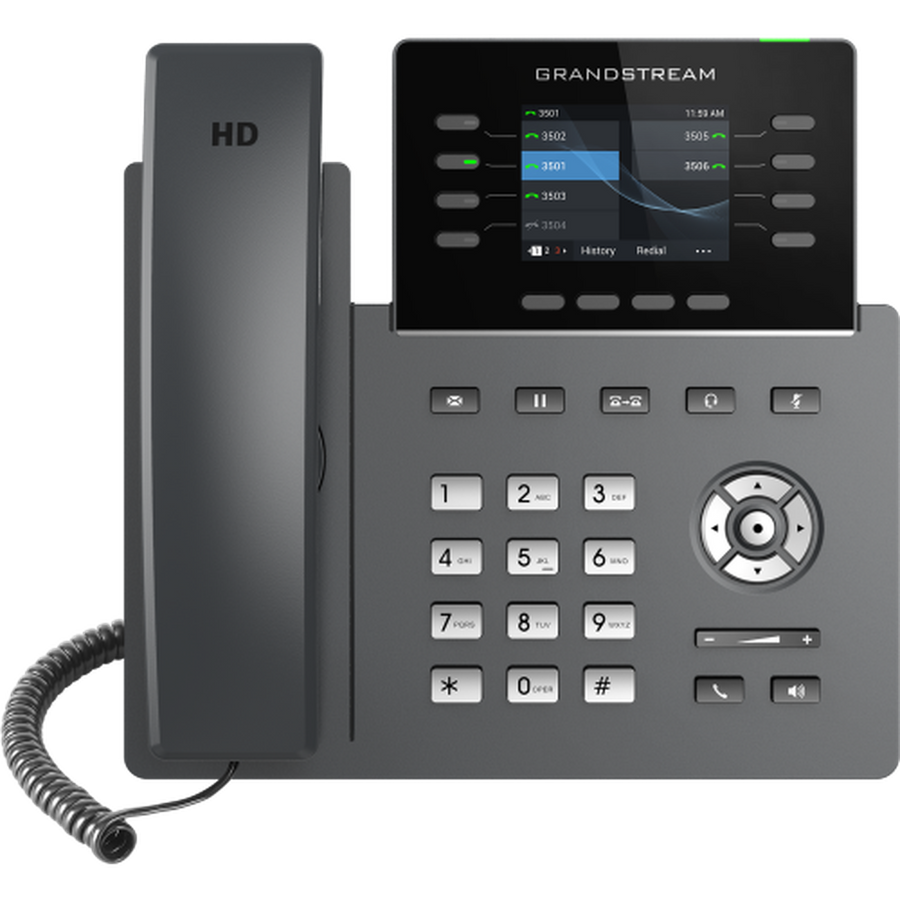

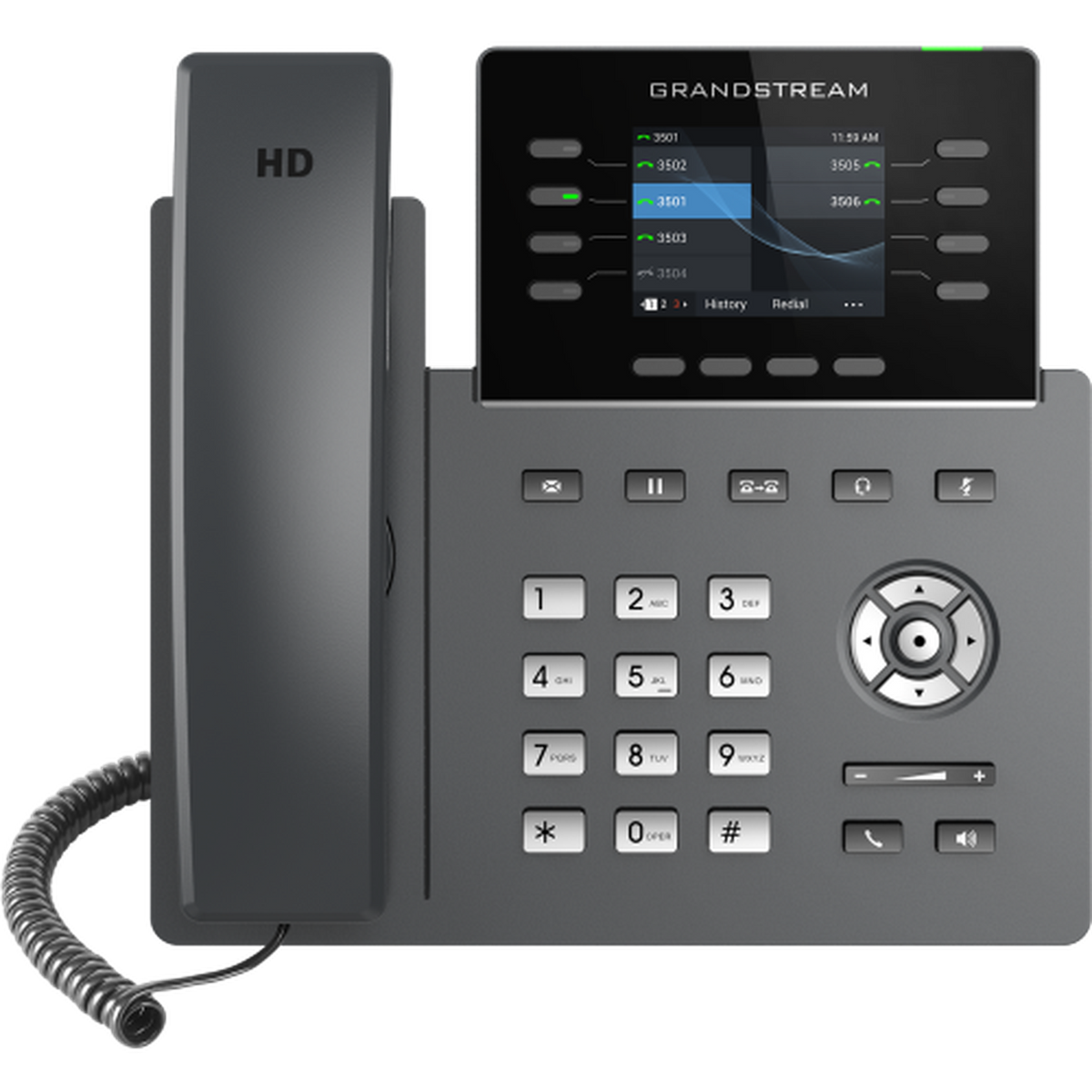

The Grandstream GRP2624 is an eight-line carrier-grade desk phone for users who spend most of the day on calls. Eight physical line keys carry up to twelve SIP accounts, a 2.8-inch colour display handles caller detail and menus, and 5-way conferencing means multi-party calls can be set up on the phone rather than through the PBX.

Wireless is where it separates itself from older eight-line handsets. Dual-band Wi-Fi 6 and Bluetooth are both integrated, and a USB port supports Grandstream's own GUV headsets as well as generic USB models. That flexibility, combined with Gigabit ports and 802.3af PoE, makes it a practical choice for offices that mix fixed desks, hot desks and home workers on the same platform.

Key features

• Eight line keys with up to 12 SIP accounts — keep several numbers and colleagues visible simultaneously
• 2.8-inch 320 × 240 colour TFT — clear caller detail and menu navigation
• 5-way conferencing — set up multi-party calls from the handset
• Integrated dual-band Wi-Fi 6 — 802.11a/b/g/n/ac/ax on 2.4GHz and 5GHz
• Integrated Bluetooth — pair wireless headsets or sync mobile contacts
• USB headset support — works with Grandstream GUV headsets and generic USB models
• Dual Gigabit Ethernet with integrated PoE — single cable to the desk
• Four programmable soft keys — XML context-sensitive keys plus nine dedicated function keys
• Wideband HD audio — G.722 and Opus for clearer speech
• 256-bit AES, SRTP, TLS and 802.1x — secure boot and encrypted configuration

Technical specification

Telephony

• 8 line keys with up to 12 SIP accounts
• 5-way conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723, G.726, G.729A/B, iLBC, Opus

Display and keys

• 2.8-inch 320 × 240 TFT colour LCD
• 4 XML programmable context-sensitive soft keys
• 5 navigation and menu keys
• 9 dedicated function keys: message, transfer, hold, headset, mute, send/redial, speakerphone, volume up and down

Network and wireless

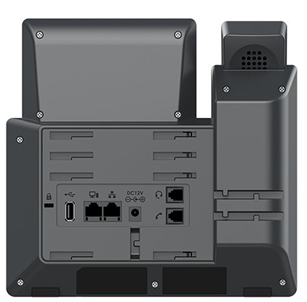

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• Integrated dual-band 2.4GHz and 5GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth

Audio and headset

• Full-duplex speakerphone with HD audio
• RJ9 headset jack with EHS for Plantronics headsets
• USB port for Grandstream GUV and other USB headsets

Power and physical

• Integrated Power over Ethernet, IEEE 802.3af
• Maximum power consumption: 9.5W via adapter, 10.8W via PoE
• Included adapter: +12V, 1A
• Dimensions: 220 × 210 × 82 mm; unit weight 880g

Security

• 256-bit AES encrypted configuration file
• SRTP, TLS and 802.1x
• Secure boot

Datasheet

Download the official Grandstream GRP2624 datasheet (PDF)

Works with

• Grandstream GRP2634 — same eight lines with 32 VPK and 10 MPK keys
• Grandstream GUV3000 USB headset — plugs straight into the USB port
• Grandstream GWN7801P PoE switch — provides the 802.3af power
• Replacement GRP 26xx handset
• All Grandstream IP phones
• IP PBX solutions

Frequently asked questions

How many SIP accounts can the GRP2624 register?

Up to twelve, presented across eight physical line keys, so a user can appear on several numbers and still have keys free for colleagues.

Does it work over Wi-Fi?

Yes. Dual-band Wi-Fi 6 is integrated, so the phone only needs power if a data point is not available.

Will my USB headset work?

The GRP2624 supports Grandstream's GUV series and other standard USB headsets, as well as EHS-compatible Plantronics headsets on the RJ9 jack.

How much PoE power does it need?

Up to 10.8W over PoE, which is within the 802.3af budget but worth allowing for if you are populating a switch fully.

What is the difference between the GRP2624 and GRP2634?

They share the same chassis, eight line keys and twelve accounts. The GRP2634 adds 32 virtual multi-purpose keys and 10 physical MPK keys for heavier BLF use.
