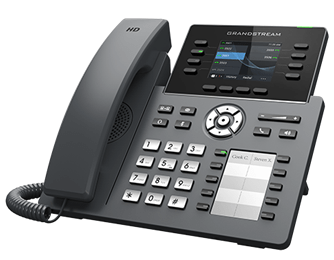

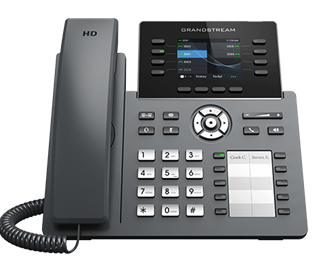

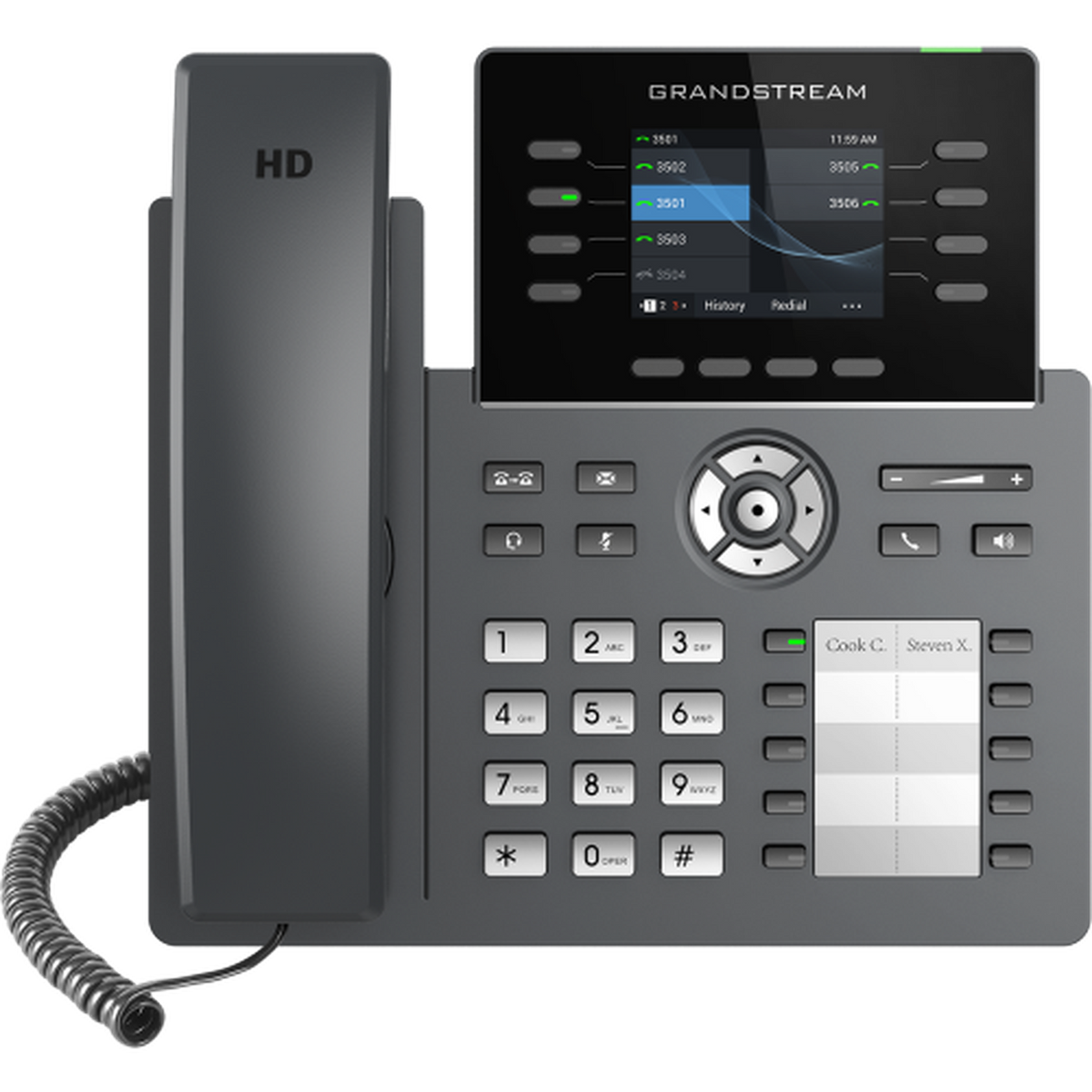

Grandstream GRP2634 8-Line Carrier-Grade IP Phone

The Grandstream GRP2634 is the GRP2624 with far more programmable key capacity. Eight line keys and twelve SIP accounts are joined by thirty-two virtual multi-purpose keys and ten physical MPK keys, which together give a single desk enough presence monitoring to cover a whole department.

It suits the position that sits between a normal desk phone and a full switchboard: the office manager, the service coordinator, the team leader who needs to see who is available before promising a customer a call back. Dual microphones with noise shield help in open-plan rooms, dual-band Wi-Fi 6 and Bluetooth remove the dependency on a data point, and USB headset support means the user is not tied to a corded RJ9 model.

Key features

• Eight line keys with up to 12 SIP accounts — substantial line capacity in a standard footprint
• 32 virtual multi-purpose keys plus 10 physical MPK keys — monitor a large team without an expansion module
• 2.8-inch 320 × 240 colour TFT — clear caller detail and key labelling
• Dual microphones with noise shield — cuts surrounding office noise on speakerphone calls
• 5-way audio conferencing — run multi-party calls without a bridge
• Integrated dual-band Wi-Fi 6 — deploy without a data point where cabling is awkward
• Integrated Bluetooth — wireless headsets and mobile contact syncing
• USB and RJ9 EHS headset support — suits whichever headset the user already has
• Dual Gigabit Ethernet with 802.3af PoE — one cable carries data and power
• Secure boot with dual firmware images — safe remote upgrades across a fleet

Technical specification

Telephony

• 8 line keys with up to 12 SIP accounts
• 32 virtual multi-purpose keys (VPK) and 10 multi-purpose keys (MPK)
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.726 and other standard codecs

Display

• 2.8-inch 320 × 240 TFT colour LCD

Network and wireless

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
• Integrated dual-band 2.4GHz and 5GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Integrated Bluetooth

Audio and headset

• Full-duplex speakerphone with HD audio and dual microphone support
• RJ9 headset jack with EHS for Plantronics headsets
• Integrated USB headset support

Power and physical

• Integrated Power over Ethernet, IEEE 802.3af
• Maximum power consumption: 9.5W via adapter, 10.8W via PoE
• Dimensions: 220 × 210 × 82 mm
• Weight: 880g unit, 1260g packaged

Security

• Secure boot, dual firmware images, encrypted data storage

Datasheet

Download the official Grandstream GRP2634 datasheet (PDF)

Works with

• Grandstream GRP2624 — the same chassis with fewer programmable keys
• Grandstream GRP2636 — steps up to 12 lines and a 4.3-inch display
• Grandstream GUV3000 USB headset
• Grandstream GWN7802P PoE switch — power a floor of GRP handsets
• All Grandstream IP phones
• Headsets

Frequently asked questions

What is the difference between a VPK and an MPK on this phone?

The ten MPK keys are physical buttons on the phone. The thirty-two VPK positions are software keys shown on the display, which you page through. Both can be set as BLF, speed dial or line keys.

Does noise shield help in an open-plan office?

Yes. The dual-microphone arrangement with noise shield is designed to suppress surrounding conversation and keyboard noise on speakerphone calls.

Can it run over Wi-Fi instead of Ethernet?

Yes, dual-band Wi-Fi 6 is integrated. You will still need power at the desk from the adapter if you are not using a PoE port.

Is this a good replacement for a GXP2170?

For most users, yes. You gain Wi-Fi 6, Bluetooth, USB headset support, noise shield and current GDMS provisioning, although the GXP2170 has more physical line keys.

How much power does it draw?

Up to 10.8W over PoE. That is well within 802.3af, but worth including in your PoE budget calculation on a fully loaded switch.

Need help planning BLF layouts across a team? Call 0333 242 1314 or email sales@clisecure.com.
