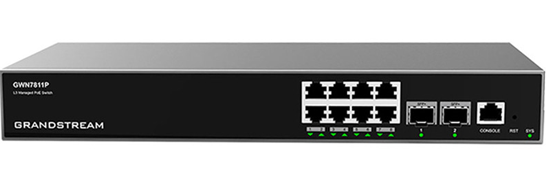

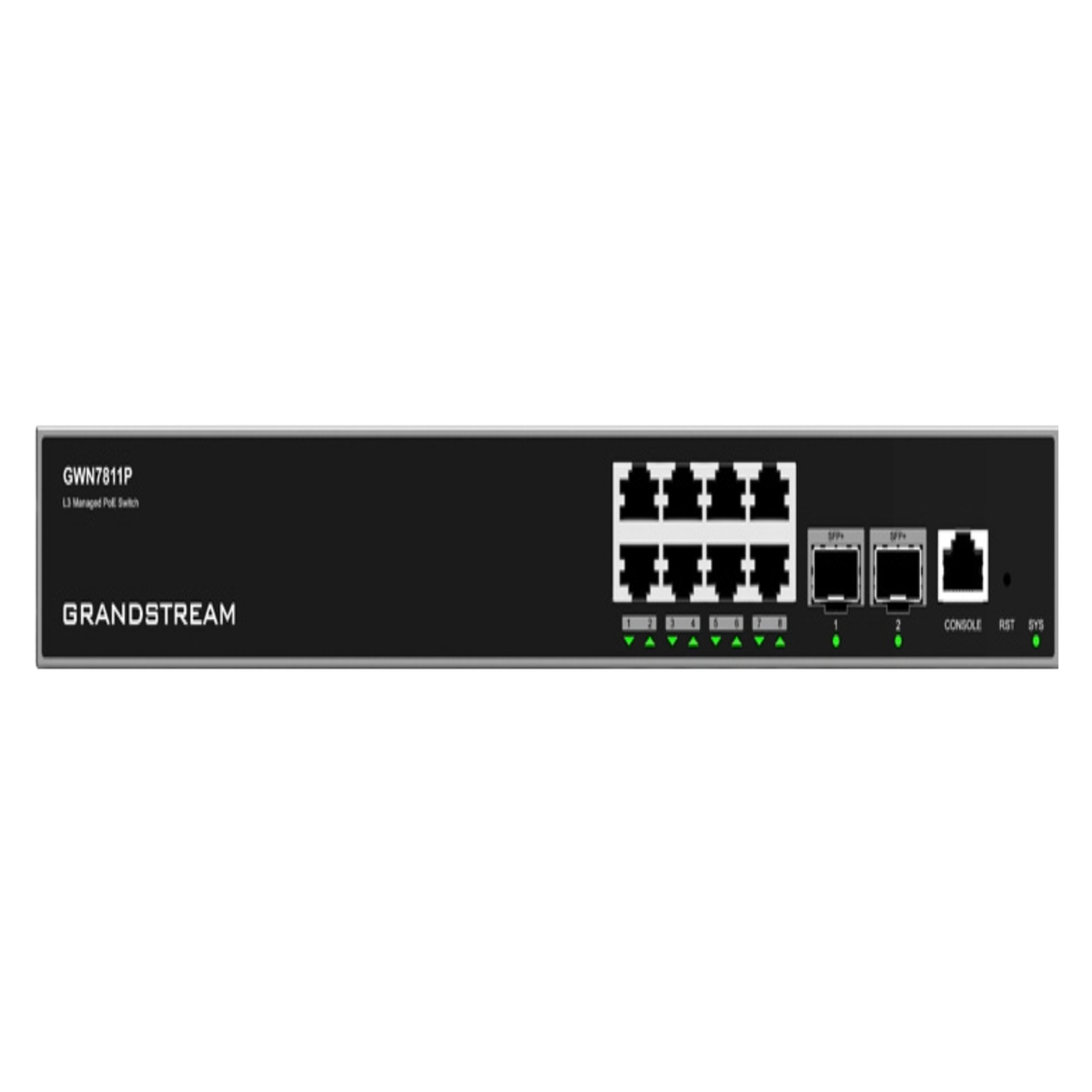

Grandstream GWN7811P 8-Port Gigabit Enterprise Layer 3 Managed PoE Network Switch

The Grandstream GWN7811P is the PoE version of the GWN7811: eight Gigabit ports supplying IEEE 802.3af/at at up to 30 W each on a 120 W budget, two 10-Gigabit SFP+ uplinks, and full Layer 3 management with routing in hardware.

It is a lot of switch in a small box. A branch office or a floor cabinet gets its own inter-VLAN routing, its own 10-Gigabit path to the core, and power for its phones, cameras and access points — without the round trip to a central router that usually becomes the bottleneck as a network grows.

120 watts across eight ports is the plan-around number. That is comfortable for eight desk phones and a couple of cameras, or three PoE+ access points with room to spare. It is not eight PoE+ devices at full 30 W draw, which would need 240 W. Write the wattages down before you patch.

Key features

• 8 × Gigabit Ethernet ports with PoE/PoE+ — IEEE 802.3af/at, up to 30 W per port
• 120 W total PoE budget — shared across all eight ports
• Smart dynamic PoE allocation — power given to what is actually connected
• 2 × 10-Gigabit SFP+ uplinks — fibre to the core with real headroom
• Layer 3 routing in hardware — inter-VLAN routing without a round trip to the router
• Advanced VLANs and QoS — traffic segmentation and voice prioritisation
• IGMP and MLD snooping — multicast does not flood the network
• Security features — ARP inspection, IP source guard, DHCP snooping, port security
• Web interface and CLI — configure it the way your team prefers
• GWN.Cloud and GWN Manager — free cloud and on-premise management

Works with

• Grandstream GWN7811 — the same switch without PoE
• Grandstream GWN7812P — 16 ports with a 240 W budget and four 10G uplinks
• Grandstream GWN7821P — eight 2.5G ports with PoE++ and a 240 W budget
• Grandstream GWN7832 — the 10G aggregation switch to uplink into
• SFP+ modules — buy in pairs; both ends must match
• All Grandstream networking

Frequently asked questions

Can all eight ports draw 30 W?

No. 30 W is the per-port maximum; 120 W is the total. Eight devices at full PoE+ would need 240 W. Add up the actual wattages of the devices.

Will it power a PoE++ device?

No. This is 802.3af/at up to 30 W. For 802.3bt devices such as PTZ cameras or Wi-Fi 7 access points, look at the GWN7821P or a Pro-series switch.

Do I actually need Layer 3?

Only if you have VLANs that need to talk to each other and enough traffic between them to notice the round trip through the router. Otherwise the Layer 2 Lite GWN7711P does the same job for less.

Why two 10G uplinks on eight ports?

So the switch is never the slow link under a fast core, and so you can run a second path for redundancy. Aggregated, they give 20 Gbps back to the core.

Is there a CLI?

Yes, as well as the web interface — which matters if your team scripts configuration or works from templates.

Are SFP+ modules included?

No. Buy them in pairs — both ends of a fibre run must be the same type and speed.

Sizing a branch cabinet? Call 0333 242 1314 or email sales@clisecure.com with the device list and we will check the PoE budget and the uplink together.
