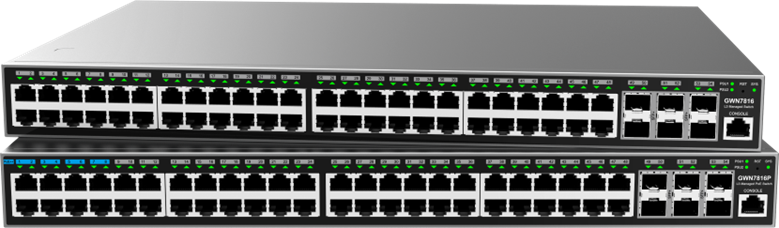

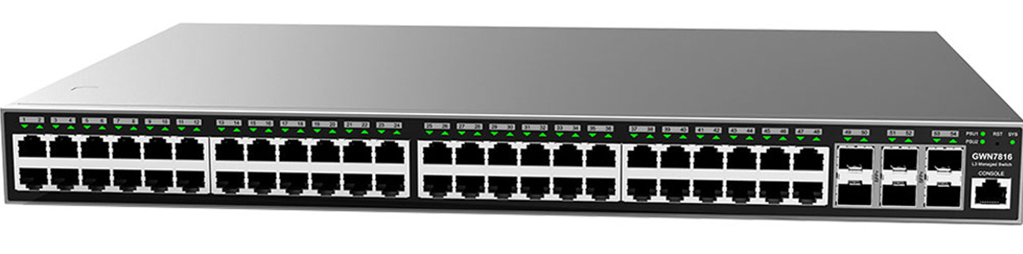

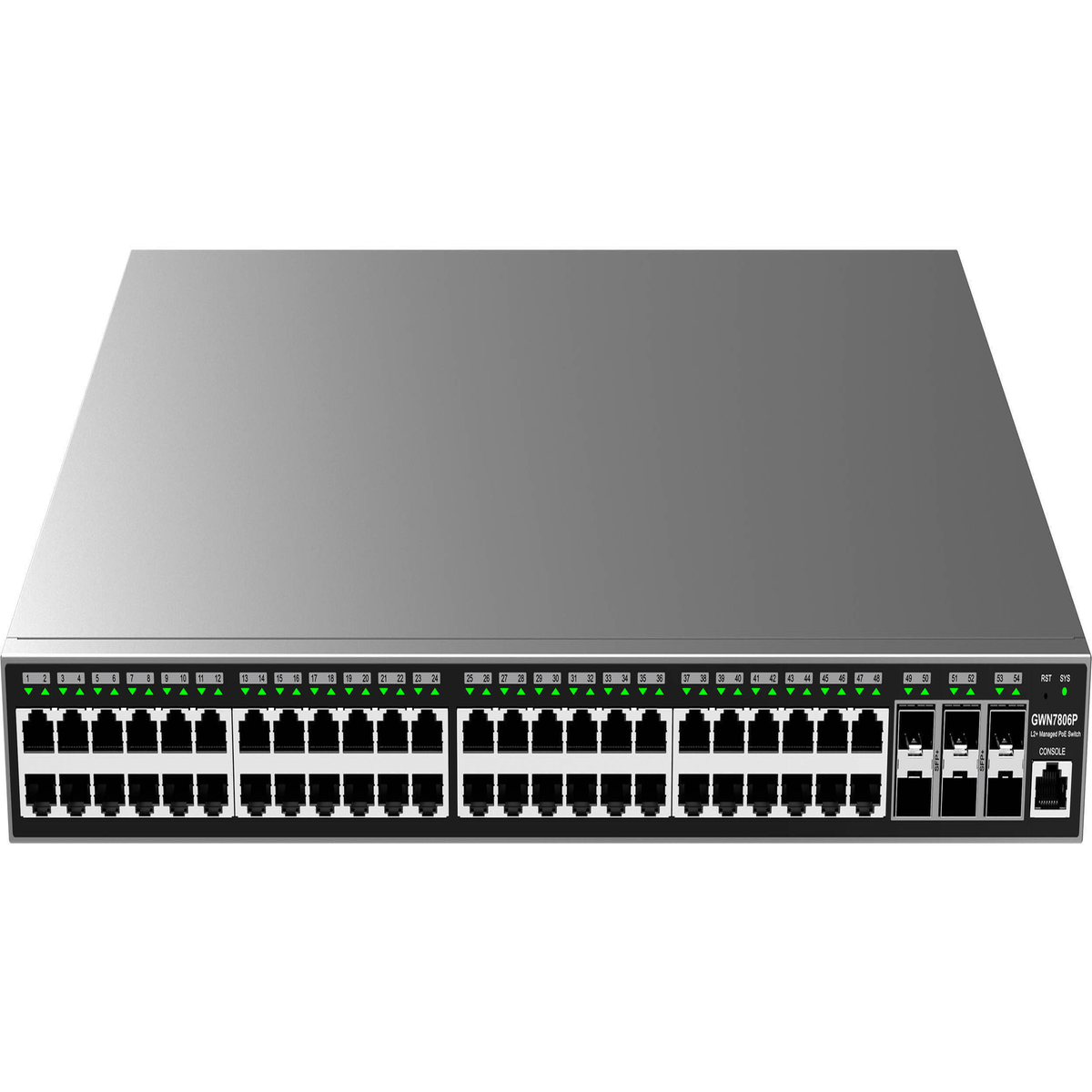

Grandstream GWN7816P 48-Port Gigabit Enterprise Layer 3 Managed PoE Network Switch

The Grandstream GWN7816P is the largest Layer 3 managed PoE switch in the GWN7810 range: forty-eight Gigabit ports, a 740 W total power budget, six 10-Gigabit SFP+ uplinks and routing in hardware.

Its power layout is the detail that matters and it is not uniform. Ports 1 to 8 supply up to 60 W each as PoE++ (802.3bt); ports 9 to 48 supply up to 30 W as PoE+. That is a deliberate design: put the PTZ cameras, the heated housings and the Wi-Fi 7 access points on the first eight ports, and everything ordinary on the rest.

Patch to that layout or you will run out of the wrong thing. A 60 W device on port 30 will not get what it needs however much budget is left, and eight high-draw devices scattered across the panel is the most common way this switch gets misconfigured. Label the first eight ports before the installers arrive.

Key features

• 48 × Gigabit Ethernet ports with PoE — IEEE 802.3af/at/bt
• Ports 1–8 supply up to 60 W (PoE++) — for PTZ cameras and Wi-Fi 7 access points
• Ports 9–48 supply up to 30 W (PoE+) — for phones, cameras and standard APs
• 740 W total PoE budget — shared across all forty-eight ports
• 6 × 10-Gigabit SFP+ uplinks — aggregate, or keep spares for redundancy
• Layer 3 routing in hardware — inter-VLAN routing at the distribution layer
• Advanced VLANs and QoS — traffic segmentation and voice prioritisation
• IGMP and MLD snooping — multicast does not flood the network
• Security features — ARP inspection, IP source guard, DHCP snooping, port security
• Web interface and CLI — configure it the way your team prefers

Works with

• Grandstream GWN7812P — 16 ports with a 240 W budget
• Grandstream GWN7813P — 24 ports with PoE++ on the first eight
• Grandstream GWN7816 — the same switch without PoE
• Grandstream GWN7832 — the 10G aggregation switch to uplink into
• SFP+ modules — buy in pairs; both ends must match
• All Grandstream networking

Frequently asked questions

Which ports supply 60 W?

Ports 1 to 8 only. Ports 9 to 48 supply up to 30 W. Plan the patching around that — a 60 W device on port 30 will not work no matter how much total budget remains.

Can every port draw its maximum at once?

No. 740 W is the total. Eight ports at 60 W is already 480 W, leaving 260 W for the other forty. Add up the actual wattages.

What actually needs PoE++?

PTZ cameras, cameras with heaters or wipers, Wi-Fi 7 access points, some video door stations and large-screen intercoms. Phones and standard access points do not.

Do I need the Layer 3 features?

At forty-eight ports, usually yes — a switch this size is normally doing distribution work with several VLANs that need to reach each other.

Why six SFP+ ports?

Because a forty-eight-port switch generates enough traffic to need more than one uplink. Aggregate two, keep one redundant, and the rest are spare.

Are SFP+ modules included?

No. Buy them in pairs — both ends of a fibre run must be the same type and speed.

Specifying a distribution switch? Call 0333 242 1314 or email sales@clisecure.com with the device list and we will map it to the right ports.
