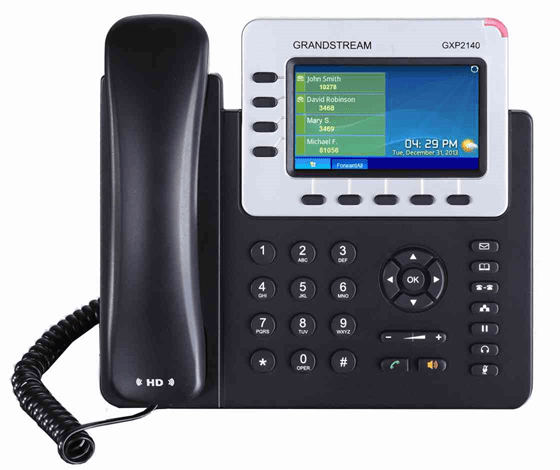

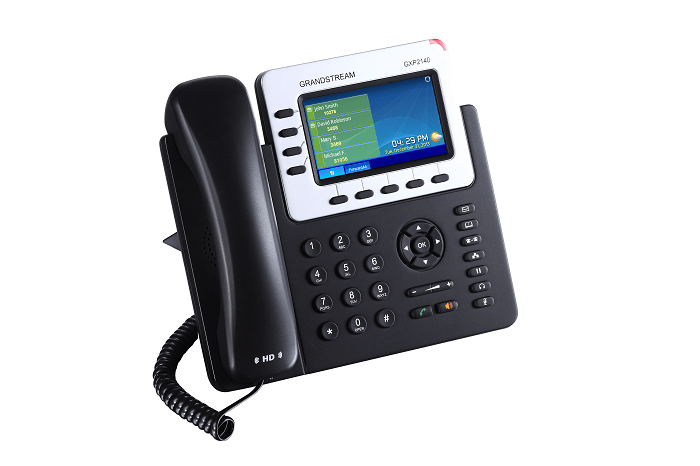

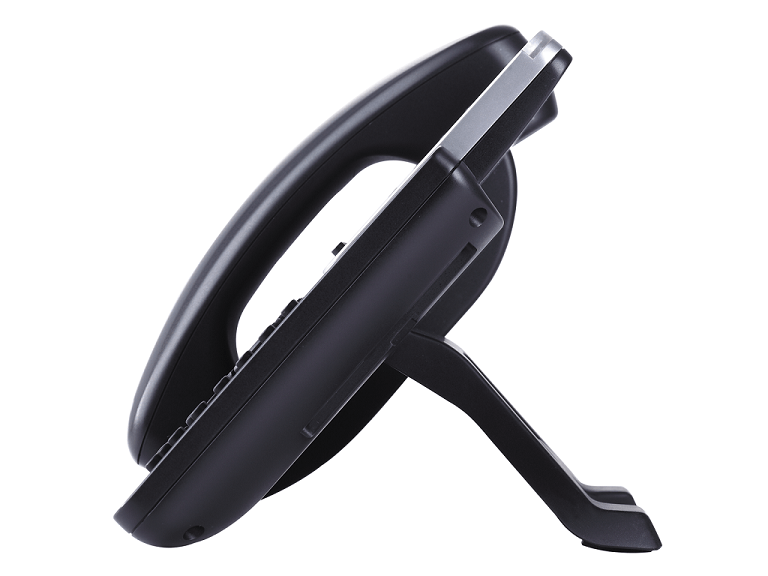

Grandstream GXP2140 Enterprise IP Phone

The Grandstream GXP2140 is built for the desk that needs a large, legible screen and the option to grow. Four lines and four SIP accounts sit under a 4.3-inch 480 × 272 colour display, and up to four GXP2200EXT modules can be cascaded from it, turning a standard desk phone into a full operator position when the role demands it.

That upgrade path is why it stayed in service so long in reception areas, executive offices and support desks. Bluetooth 2.1 handles mobile contact syncing and wireless headsets, a USB port takes data import and export, and Gigabit ports with integrated 802.3af PoE keep installation to one cable. Five-way conferencing means most internal meetings never need to touch the PBX bridge.

Key features

• 4.3-inch 480 × 272 colour TFT — one of the largest displays in the GXP range
• Four lines with four SIP accounts — dual-colour line keys for clear call state
• Up to four cascaded GXP2200EXT modules — expand to a full operator console when needed
• 5-way audio conferencing — run internal meetings without the PBX bridge
• Bluetooth 2.1 — sync mobile contacts or pair a wireless headset
• Built-in USB port — import and export data at the phone
• Dual Gigabit Ethernet with integrated PoE — single-cable installation, no PC speed penalty
• Five programmable context-sensitive soft keys — more on-screen functions than most desk phones
• Eleven dedicated function keys — message, phonebook, transfer, conference, hold, headset, mute and more
• AES configuration encryption with SRTP, TLS and 802.1x — enterprise security throughout

Technical specification

Telephony

• 4 lines with up to 4 SIP accounts, dual-colour line keys
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723.1, G.726, G.729A/B, iLBC, Opus

Display and keys

• 4.3-inch 480 × 272 TFT colour LCD
• 5 programmable context-sensitive soft keys
• 11 dedicated function keys

Expansion

• Supports up to 4 cascaded GXP2200EXT modules
• Up to 160 speed-dial and BLF contacts when fully expanded

Network and wireless

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
• Integrated Power over Ethernet, IEEE 802.3af
• Bluetooth 2.1
• Built-in USB port for data import and export

Power and physical

• Maximum power consumption: 6W standalone, 10W with 4 cascaded GXP2200EXT modules
• Dimensions: 228mm wide × 206mm long × 46.5mm high
• Weight: 0.98kg

Audio, headset and security

• HD audio on handset and speakerphone
• RJ9 headset jack with EHS for Plantronics headsets
• AES-based secure configuration file, SRTP, TLS, 802.1x

Datasheet

Download the official Grandstream GXP2140 datasheet (PDF)

Works with

• Grandstream GXP2200EXT module — cascade up to four for a full operator console
• Grandstream GXP2170 — 12 line keys and 6 SIP accounts in the same family
• PSU for GXP2140 — replacement mains adapter
• Grandstream GRP2636 — the current-generation large-format replacement
• All Grandstream IP phones
• Headsets

Frequently asked questions

How many BLF contacts can I reach with expansion modules?

Up to 160 speed-dial and BLF contacts across four cascaded GXP2200EXT modules, which makes the GXP2140 a genuine operator position.

Do the expansion modules need their own power?

Power consumption rises to a maximum of 10W with four cascaded modules, so allow for that in your PoE budget or use the mains adapter.

How does the GXP2140 differ from the GXP2160?

The GXP2160 has six lines and six SIP accounts with 24 programmable BLF keys built in, but no expansion module support. The GXP2140 has four lines and expands externally instead.

Is Bluetooth included?

Yes, Bluetooth 2.1 for mobile contact syncing and wireless headsets.

What is the modern equivalent?

The GRP2636 is the closest current-generation large-format phone, with twelve lines, 24 MPK keys, Wi-Fi 6 and Bluetooth.

Sizing an operator position with expansion modules? Call 0333 242 1314 or email sales@clisecure.com.
