Grandstream GXP2160 Enterprise IP Phone

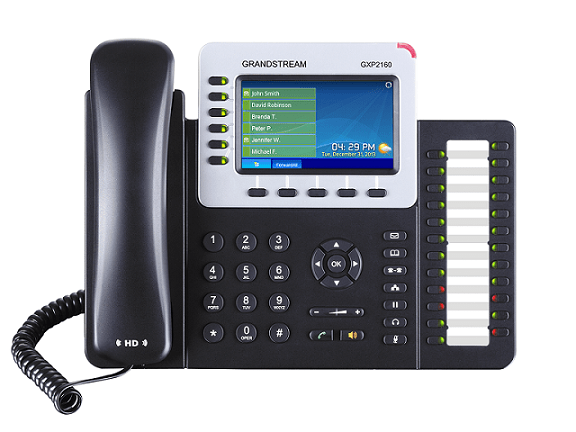

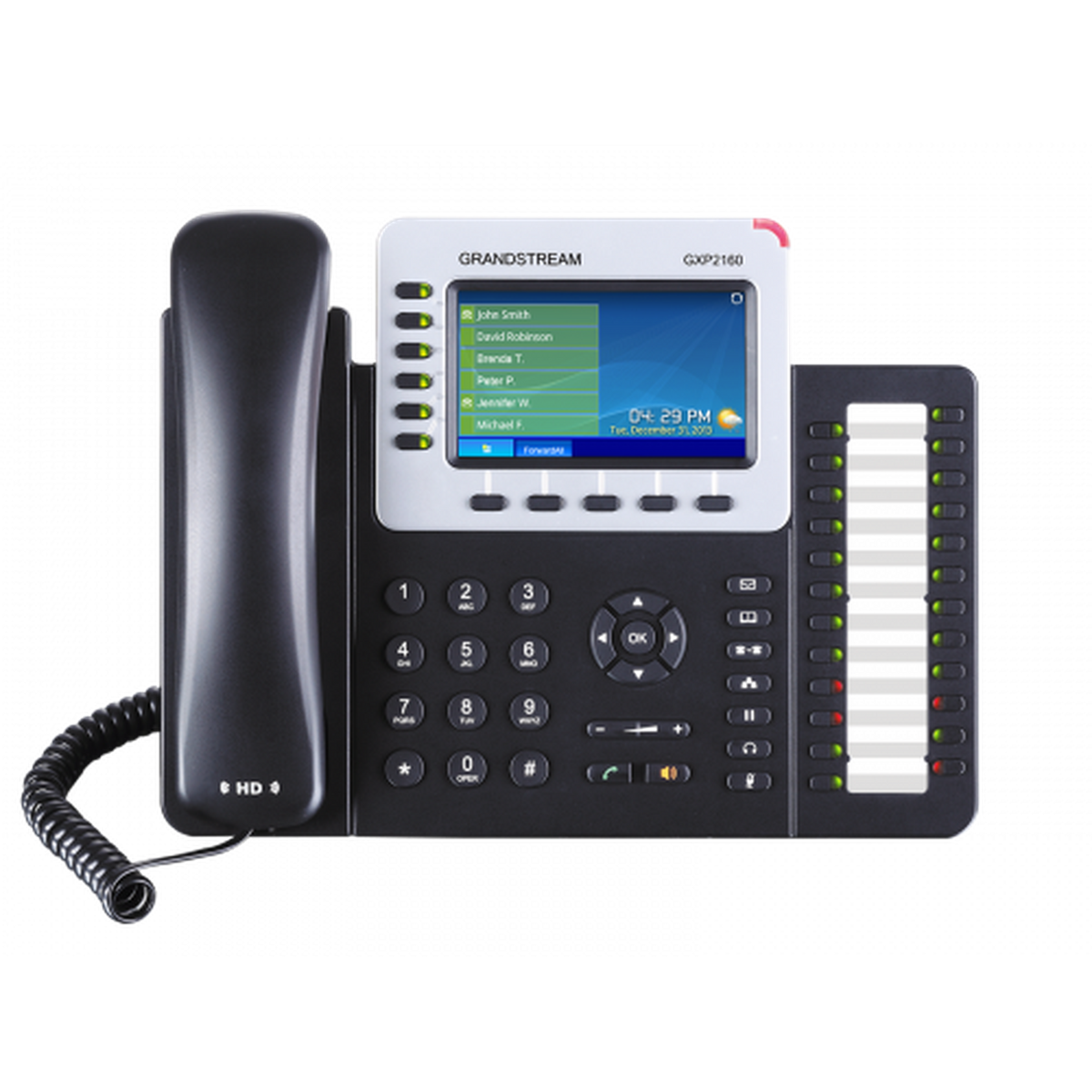

The Grandstream GXP2160 puts everything on the phone itself. Six dual-colour line keys carry six SIP accounts, and twenty-four programmable BLF and speed-dial keys run down the right-hand side — no expansion module, no cascading cables, just one wide handset that covers a whole department.

For reception desks and coordinators who dislike add-on modules, that is exactly the right trade-off. A 4.3-inch colour display keeps directories and call lists legible, 5-way conferencing handles internal meetings, and Bluetooth 2.1 lets a mobile or wireless headset pair directly. Gigabit ports with built-in PoE mean a single cable to the desk and no speed penalty for the PC behind it.

Key features

• Twenty-four programmable BLF and speed-dial keys — dual-colour LEDs, all on the phone itself
• Six lines with six SIP accounts — genuine multi-line capability for busy roles
• 4.3-inch 480 × 272 colour TFT — large, legible display for directories and call lists
• Five programmable context-sensitive soft keys — on-screen functions follow the call state
• 5-way audio conferencing — run small meetings without the PBX bridge
• Bluetooth 2.1 — sync mobile contacts or pair a wireless headset
• Built-in USB ports — import and export data at the phone
• Dual Gigabit Ethernet with built-in PoE — one cable, full PC speed
• 6W maximum draw — light on a PoE switch budget for its size
• AES configuration encryption with SRTP, TLS and 802.1x — enterprise security throughout

Technical specification

Telephony

• 6 lines with up to 6 SIP accounts
• 6 dual-colour line keys
• 24 dual-colour programmable BLF and speed-dial keys
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723.1, G.726, G.729A/B, iLBC, Opus

Display and keys

• 4.3-inch 480 × 272 TFT colour LCD
• 5 programmable context-sensitive soft keys

Network and wireless

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
• Built-in Power over Ethernet, IEEE 802.3af
• Bluetooth 2.1 for headsets and mobile syncing
• Built-in USB ports for importing and exporting data

Audio and headset

• HD audio on handset and speakerphone
• RJ9 headset jack with EHS for Plantronics headsets

Power and physical

• Universal adapter: 100–240VAC input, 12V 1.0A output
• Maximum power consumption: 6W
• Dimensions: 275.5mm wide × 206mm long × 46.5mm high
• Weight: 0.98kg unit, 1.62kg packaged

Security

• MD5 authentication
• AES-based secure configuration file
• SRTP, TLS and 802.1x

Datasheet

Download the official Grandstream GXP2160 datasheet (PDF)

Works with

• Grandstream GXP2170 — 12 line keys, 48 BLF positions and expansion module support
• Grandstream GXP2140 — four lines with cascaded GXP2200EXT expansion instead
• PSU for GXP2160 — replacement mains adapter
• Grandstream GRP2636 — the current-generation large-format successor
• All Grandstream IP phones
• Headsets

Frequently asked questions

Does the GXP2160 support expansion modules?

No. Its twenty-four BLF keys are built in. If you need more, the GXP2170 supports up to four cascaded GXP2200EXT modules.

How many extensions can I monitor?

Twenty-four dedicated BLF and speed-dial keys with dual-colour LEDs, alongside six line keys.

Is Bluetooth included?

Yes, Bluetooth 2.1 for pairing a mobile phone or a wireless headset.

Will it fit a standard desk?

It is wider than most desk phones at 275.5mm, which is the trade-off for having twenty-four physical BLF keys on the unit. Check the available desk space before ordering in quantity.

What is the current-generation equivalent?

The GRP2636 offers twelve lines, twenty-four MPK keys, Wi-Fi 6, Bluetooth and USB headset support in a more compact chassis.

Deciding between built-in BLF keys and expansion modules? Call 0333 242 1314 or email sales@clisecure.com.
