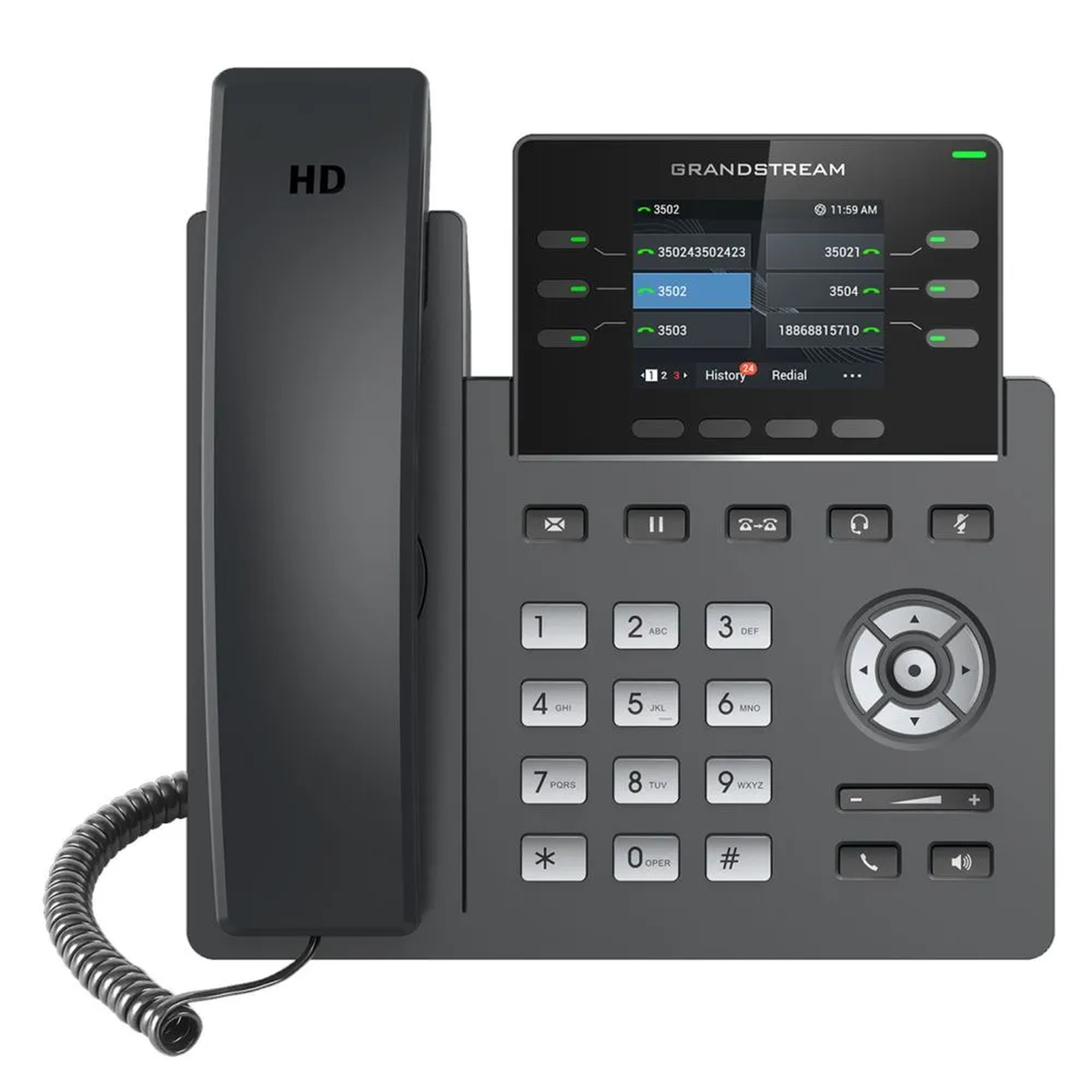

Grandstream GRP2613 Carrier-Grade IP Phone

The Grandstream GRP2613 is a carrier-grade desk phone built for busy users who need real key capacity without a large footprint. Six multipurpose line keys carry up to four SIP accounts and can be expanded digitally to twenty-four BLF positions, all rendered on a 2.8-inch colour display rather than the monochrome LCD found lower in the range.

At just 52.1mm deep and 554g it is one of the slimmest phones in its class, which matters on crowded desks and in call-centre pods. Gigabit ports and integrated 802.3af PoE keep cabling simple, and power draw is modest at under 4W. Service providers favour it because the whole GRP platform provisions through GDMS or TR-069 with encrypted configuration files, so a batch can be staged centrally and shipped straight to site.

Key features

• Six multipurpose line keys — assign lines, BLF or speed dials as the role requires
• Up to 24 digital BLF keys — page through additional monitored extensions on screen
• 2.8-inch 320 × 240 colour TFT — readable caller detail and clearer key labelling
• Dual Gigabit Ethernet with integrated PoE — one cable to the desk, no speed penalty for the PC
• 5-way conferencing — handle multi-party calls without a bridge
• Very low power draw — 3W on the adapter, 3.8W over PoE, which adds up across a large estate
• Slim 52.1mm chassis at 554g — noticeably more compact than typical mid-range phones
• Wideband HD audio — G.722 and Opus alongside the standard codec set
• RJ9 headset jack with EHS — Plantronics electronic hook switch support
• Secure boot, dual firmware images and 256-bit AES — carrier-grade security throughout

Technical specification

Telephony

• Up to 4 SIP accounts across 6 multipurpose line keys
• Up to 24 digital BLF keys
• 5-way conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723, G.726, G.729A/B, iLBC, Opus
• DTMF: in-band, RFC2833 and SIP INFO

Display and keys

• 2.8-inch 320 × 240 TFT colour LCD
• 6 line keys
• 4 XML programmable context-sensitive soft keys
• 5 navigation and menu keys, 11 dedicated function keys

Network and power

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
• Integrated Power over Ethernet, IEEE 802.3af Class 2
• Maximum power consumption: 3W via adapter, 3.8W via PoE

Audio and headset

• HD handset and speakerphone with wideband support
• RJ9 headset jack with EHS for Plantronics headsets

Physical

• Dimensions: 203 × 193 × 52.1 mm
• Unit weight: 554g

Security and provisioning

• Secure boot, dual firmware images, encrypted data storage
• 256-bit AES configuration encryption, SRTP, TLS, 802.1x, MD5 authentication
• Firmware upgrade via FTP, TFTP, TFTPS, HTTP or HTTPS
• Mass provisioning via GDMS, TR-069 or AES-encrypted XML configuration file

Datasheet

Download the official Grandstream GRP2613 datasheet (PDF)

Works with

• Grandstream GRP2614 — adds a second screen, Wi-Fi 6 and Bluetooth
• PSU for GRP2613 — mains adapter if the desk has no PoE
• Grandstream GWN7801P PoE switch — power a group of GRP2613 handsets
• Replacement GRP 26xx handset
• All Grandstream IP phones
• Headsets
• Grandstream UCM6302 IP PBX — a compact on-site UCM to register the GRP2613 to

Frequently asked questions

How many extensions can the GRP2613 monitor?

Six physical keys, expandable digitally to twenty-four BLF positions that you page through on the colour display. For more than that, consider the GRP2615 with a GBX20 module.

Does the GRP2613 have Wi-Fi?

Not on this model. The GRP2613W variant adds wireless; the standard GRP2613 is wired Gigabit only. The GRP2614 and above include integrated Wi-Fi 6.

Is PoE included as standard?

Yes. Integrated 802.3af PoE is built in, and the phone draws under 4W, so it will not stress a PoE budget even on a fully populated switch.

How does it compare to the GXP1630 it often replaces?

The GRP2613 offers a colour screen, more line keys, more BLF capacity, 5-way conferencing and modern GDMS provisioning, in a slimmer chassis.

Can I brand or customise the display?

The GRP series supports custom screensavers and wallpaper through provisioning, which service providers often use for their own branding.
