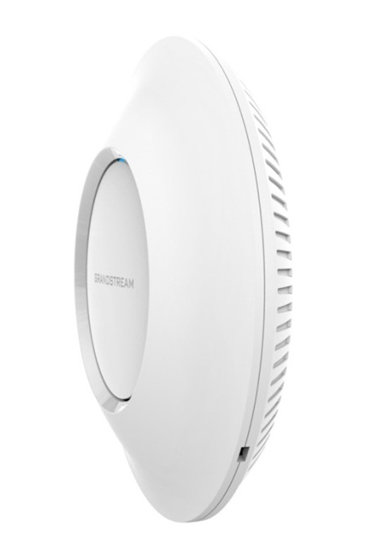

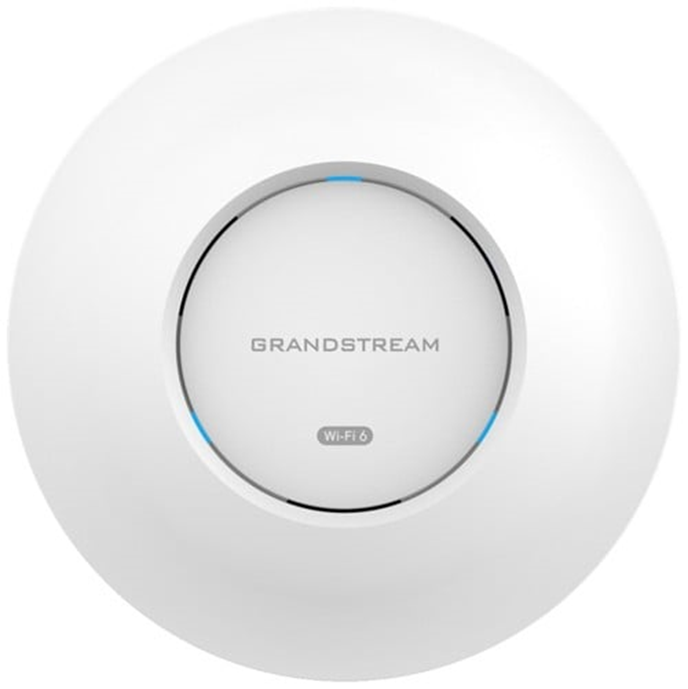

Grandstream GWN7662 Indoor Wi-Fi-6 Access Point

The Grandstream GWN7662 is an indoor 802.11ax Wi-Fi 6 access point built for density: a 4×4:4 MU-MIMO radio on 5 GHz, 2×2:2 on 2.4 GHz, up to 5.38 Gbps of aggregate wireless throughput, 256 concurrent clients and a quoted 175 metres of coverage.

The four spatial streams on 5 GHz are the point of this model. They do not make one laptop four times faster — most laptops only have two streams anyway — but they let the access point serve several clients at once instead of taking turns. In a room full of devices, that is what people actually feel.

It carries a controller inside it. A small site can run its whole Wi-Fi from this AP's own web interface, with no separate hardware and no licence. When the estate grows past that, GWN Manager on-premise or GDMS Networking in the cloud take over without replacing anything.

Key features

• 802.11ax Wi-Fi 6, up to 5.38 Gbps aggregate — both radios combined
• 4×4:4 MU-MIMO on 5 GHz — several clients served simultaneously, not in turn
• 2×2:2 MU-MIMO on 2.4 GHz — keeps older and low-power devices working well
• Up to 256 concurrent clients — headroom for a busy floor
• Up to 175 m coverage — an open-air figure; walls and racking reduce it
• OFDMA — several small clients packed into one transmission

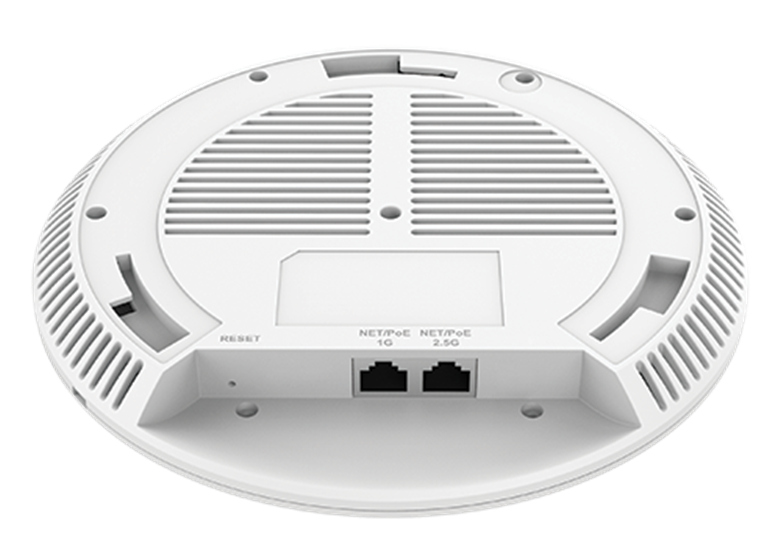

• Dual network ports, 3.5 Gbps aggregate wired — room above a single Gigabit link
• PoE and PoE+ powered — one cable for power and data
• Embedded controller — manage a small GWN estate from the AP itself
• GDMS Networking and GWN Manager — cloud or on-premise management

Works with

• Grandstream GWN7664 — the higher-capacity 4×4:4 dual-band model
• Grandstream GWN7660E — AX3000, where the density is lower
• Grandstream GWN7665 — tri-band Wi-Fi 6E with the clean 6 GHz band
• GWN7801P PoE switch — PoE+ to feed a cluster of access points
• GS-POE30W-MG injector — single-port PoE where there is no PoE switch
• All wireless access points

Frequently asked questions

Will one client get 5.38 Gbps?

No. That figure is both radios' theoretical peaks added together. A two-stream laptop on 5 GHz sees a fraction of it. The number that matters in practice is how many devices the AP can keep happy at once, and there it is genuinely strong.

What does 4×4:4 buy me?

Simultaneous service. With four streams the AP can talk to several clients in the same slot rather than cycling through them. It is a capacity feature, not a single-device speed feature.

Will one cover 175 metres?

In open air. Indoors, expect far less — and note that on a busy floor capacity runs out long before distance does. Plan from a survey, not from the radius.

Does it need a controller?

No. There is one embedded in the access point for small deployments. Larger sites move to GWN Manager on-premise or GDMS Networking in the cloud, both free.

PoE or PoE+?

It accepts either. Check the switch's total power budget as well as its port count when several APs share one switch — that is the limit people hit, not the number of ports.

How is it different from the GWN7664?

Band layout. The GWN7664 runs 4×4:4 on both bands; the GWN7662 runs 4×4:4 on 5 GHz and 2×2:2 on 2.4 GHz. If most of your traffic is already on 5 GHz — as it usually is — the difference is small and the GWN7662 is the cheaper answer.
