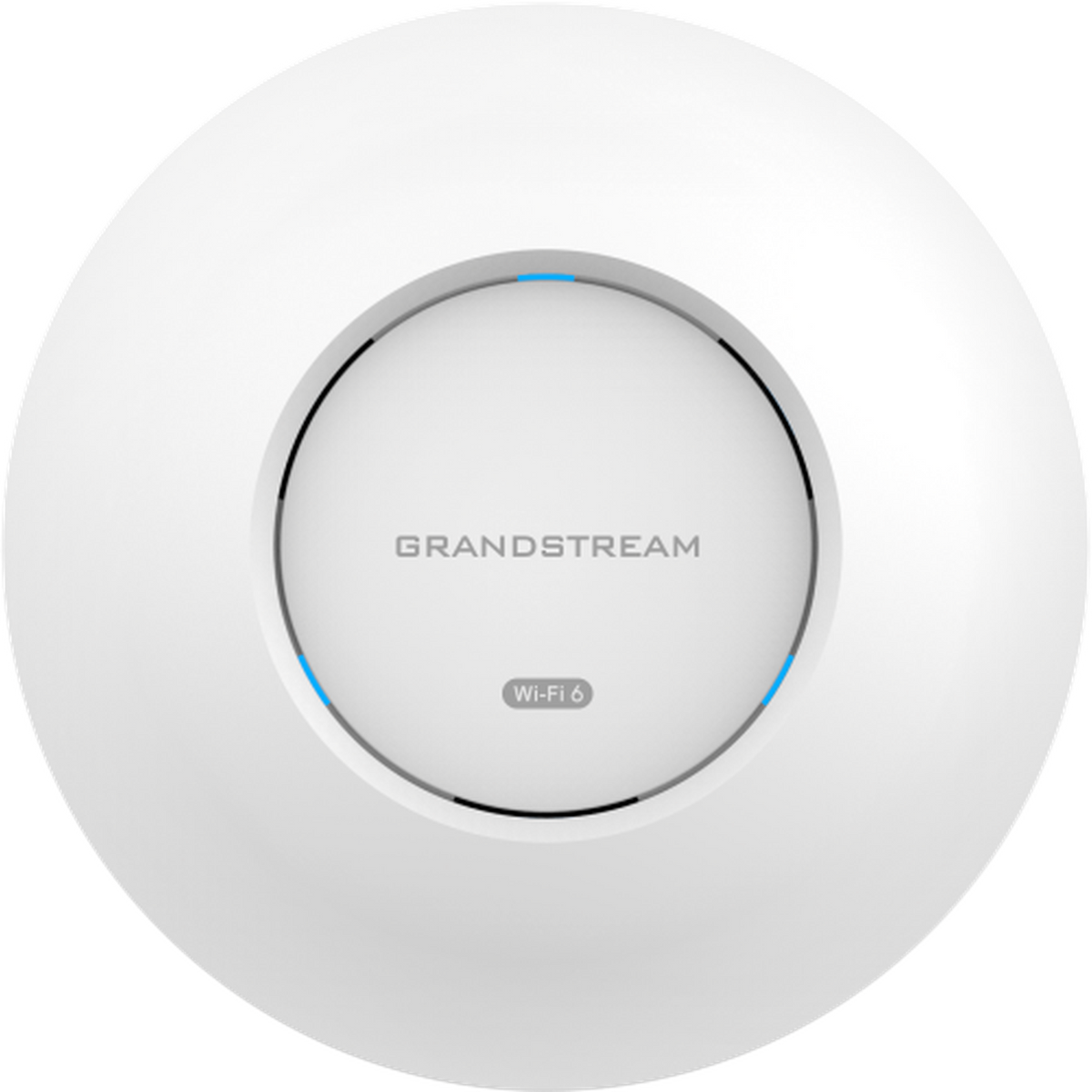

Grandstream GWN7664E Wi-Fi 6 Indoor Access Point

The Grandstream GWN7664E is the high-performance end of the indoor Wi-Fi 6 range: AX6000, 4×4:4 MU-MIMO on both bands, up to 6 Gbps of aggregate wireless throughput, 512 concurrent clients and dual 2.5 Gigabit ports with PoE+.

What separates it from the rest of the line is that the wired side has been sized for the radio. Most access points quote multi-gigabit wireless and then hand it all to a single Gigabit port; this one has two 2.5G ports and 5 Gbps of aggregate wired throughput, so the bottleneck moves off the AP and onto whatever you plug it into.

Which means the switch matters. On a plain Gigabit switch this access point performs like a much cheaper one. Budget for 2.5G switching, or link-aggregate the two ports, or accept that you have bought headroom you cannot use yet.

Key features

• 802.11ax Wi-Fi 6, AX6000 — up to 6 Gbps aggregate wireless throughput
• 4×4:4 MU-MIMO on both bands — four spatial streams on 2.4 GHz and 5 GHz alike
• Up to 512 concurrent clients — twice the capacity of the mid-range models
• Dual 2.5 Gigabit ports with PoE+ — 5 Gbps aggregate wired, no single-port choke
• OFDMA and MU-MIMO — several clients served in a single transmission
• Coverage over 150 m — an open-air figure; walls and floors reduce it
• Embedded controller — run a small GWN estate from the access point itself
• Mesh support — extend into areas the cabling never reached
• GDMS Networking and GWN Manager — cloud or on-premise management, both free

Works with

• Grandstream GWN7664 — the standard 4×4:4 indoor model
• Grandstream GWN7664ELR — the outdoor IP68 version of the same class
• Grandstream GWN7660E — AX3000, where the density is lower
• GWN7821P multi-gigabit PoE switch — the switching this AP is sized for
• GWN7721PE 2.5GbE PoE+ switch — 2.5G PoE+ at a smaller port count
• All wireless access points

Frequently asked questions

Do I need 2.5G switching to use it?

Not to make it work — the ports negotiate down to Gigabit. But the reason to buy this model over a cheaper one is the wired headroom, and on Gigabit switching you throw that away.

Will one client see 6 Gbps?

No. That is both radios' theoretical peaks added together. A two-stream laptop sees a fraction of it. The AP's real advantage is how many devices it keeps happy at once.

Is 512 clients realistic?

It is the association limit, and in a hall of phones checking email it is achievable. In a hall of laptops on video, it is not — plan by traffic, not by headcount.

What power does it need?

PoE+. Check the switch's total power budget, not just its port count — a 4×4:4 access point draws considerably more than a small one.

Can I use both ports together?

Yes, that is the point of having two — aggregate them on a switch that supports it, or use the second for a wired device beside the AP.

How is it different from the GWN7664ELR?

Environment. Same class of radio; the ELR is IP68-rated for outdoor use with a longer quoted range. This one is the indoor unit.
