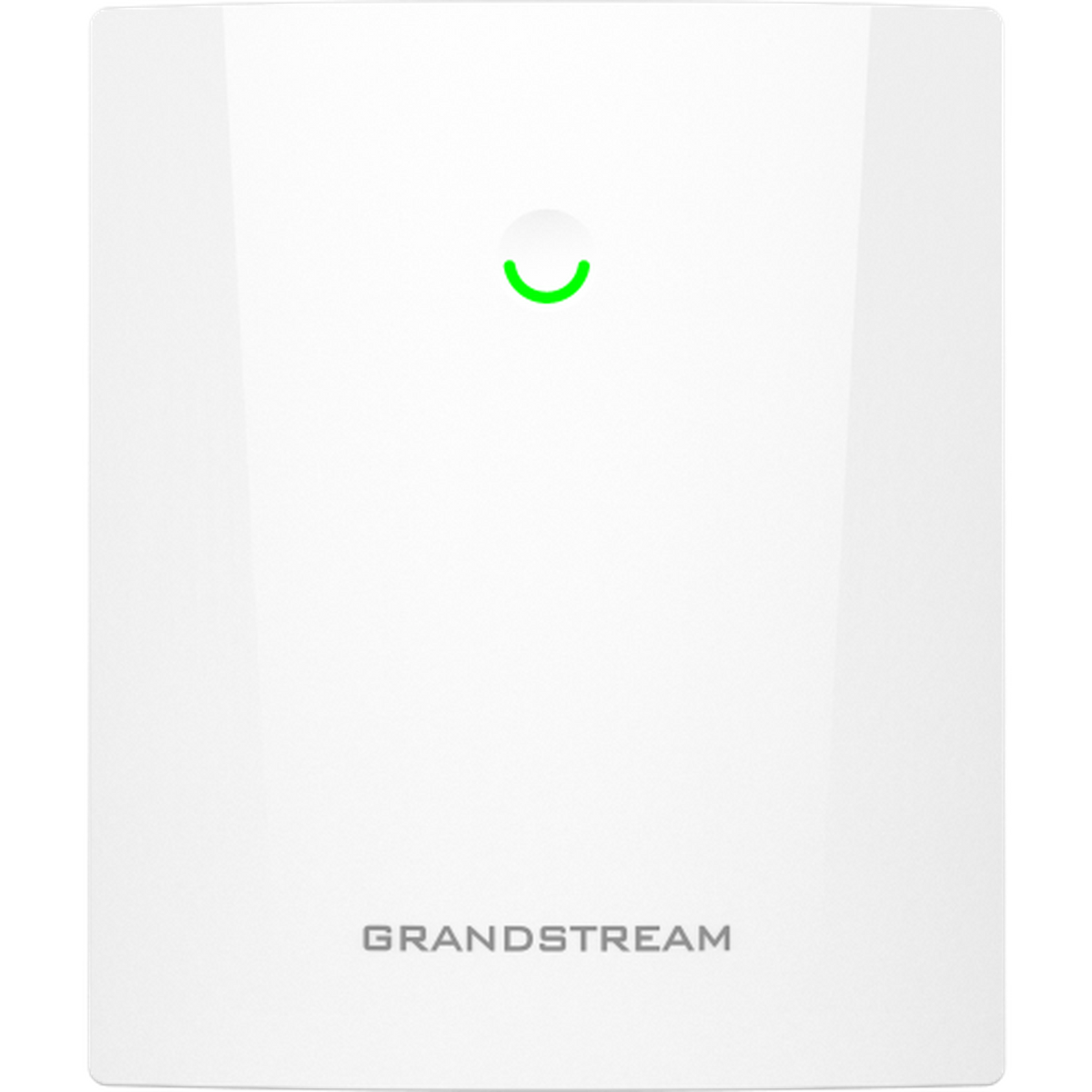

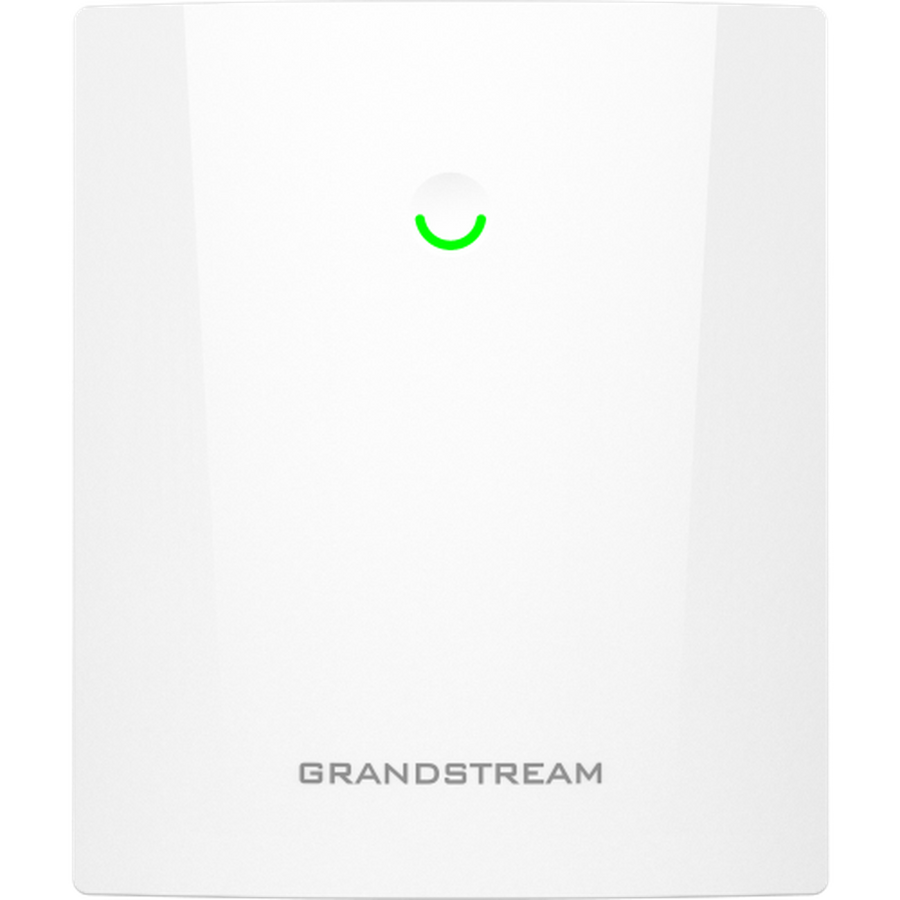

Grandstream GWN7664ELR Wi-Fi 6 LR Access Point

The Grandstream GWN7664ELR is the high-performance outdoor long-range access point in the Wi-Fi 6 line: AX6000, dual-band 4×4:4 MU-MIMO with OFDMA, up to 6 Gbps of aggregate wireless throughput, 512 concurrent clients and a quoted 300-metre range, in an IP68 weatherproof body.

Long range and high capacity are usually a trade-off; this unit is bought when you need both. A festival field, a stadium concourse, a large yard with dozens of handhelds, a campus quad at lunchtime — places where the area is big and the crowd is real.

If it is only distance you need, buy down. The GWN7660ELR covers the same 300 metres with a 2×2:2 radio and 256 clients, for considerably less. The extra streams here are about how many people are standing in that area at once, not about how far the signal goes.

Key features

• Up to 300 m coverage — long-range outdoor antenna design
• Up to 512 concurrent clients — twice the capacity of the 2×2:2 outdoor models
• 802.11ax Wi-Fi 6, AX6000 — up to 6 Gbps aggregate wireless throughput
• 4×4:4 MU-MIMO, dual band, with OFDMA — several clients served simultaneously
• IP68 weatherproof — built to sit outside all year
• Embedded controller — run a small GWN estate from the access point itself
• Mesh support — extend outdoor coverage where no cable can be run
• GWN.Cloud and GWN Manager — cloud or on-premise management, both free

Works with

• Grandstream GWN7660ELR — same range, 2×2:2 and 256 clients, for less
• Grandstream GWN7664LR — the earlier outdoor 4×4:4 long-range model
• Grandstream GWN7664E — the indoor unit of the same class
• Grandstream GWN7302 — a point-to-point bridge, if the job is a link rather than coverage
• GWN7710R outdoor switch — managed switching that can live outside with it
• GS-POE60W injector — 60W injector for a high-draw outdoor access point
• All wireless access points

Frequently asked questions

Do I need this or the GWN7660ELR?

Count the people, not the metres. Both cover 300 metres. This one carries 512 clients on a 4×4:4 radio; the 7660ELR carries 256 on 2×2:2. If the area is large but quiet, buy the cheaper one.

Will one client see 6 Gbps?

No. That is both radios' theoretical peaks added together. A phone or a handheld scanner sees a small fraction. The figure describes total capacity, not any one connection.

Will it really reach 300 metres?

With line of sight and nothing in between. In a yard full of lorries or a site with trees, expect less — and remember the client has to answer from that distance too.

What power does it need?

PoE, and a generous supply of it — a 4×4:4 outdoor access point is not a low-draw device. Check the injector or switch budget rather than assuming any PoE port will do.

Can it be mounted on a pole?

Yes, and that is the usual approach. Fix it to something rigid, keep line of sight to the area you are covering, and dress the cable so rain runs away from the gland rather than into it.

Can it mesh to other access points?

Yes. That is often how outdoor coverage is chained across a site where no further cabling is possible — but each hop costs throughput, so cable the first unit properly.

Covering a large outdoor site with real crowd density? Call 0333 242 1314 or email sales@clisecure.com and we will size it with you.
