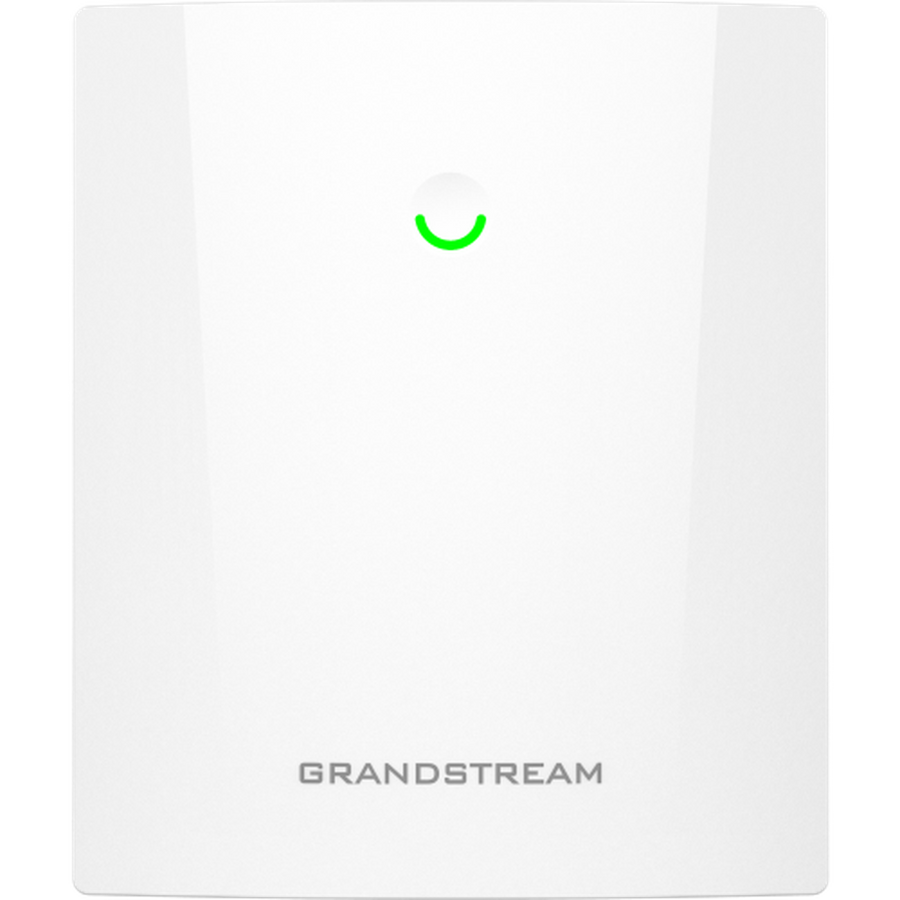

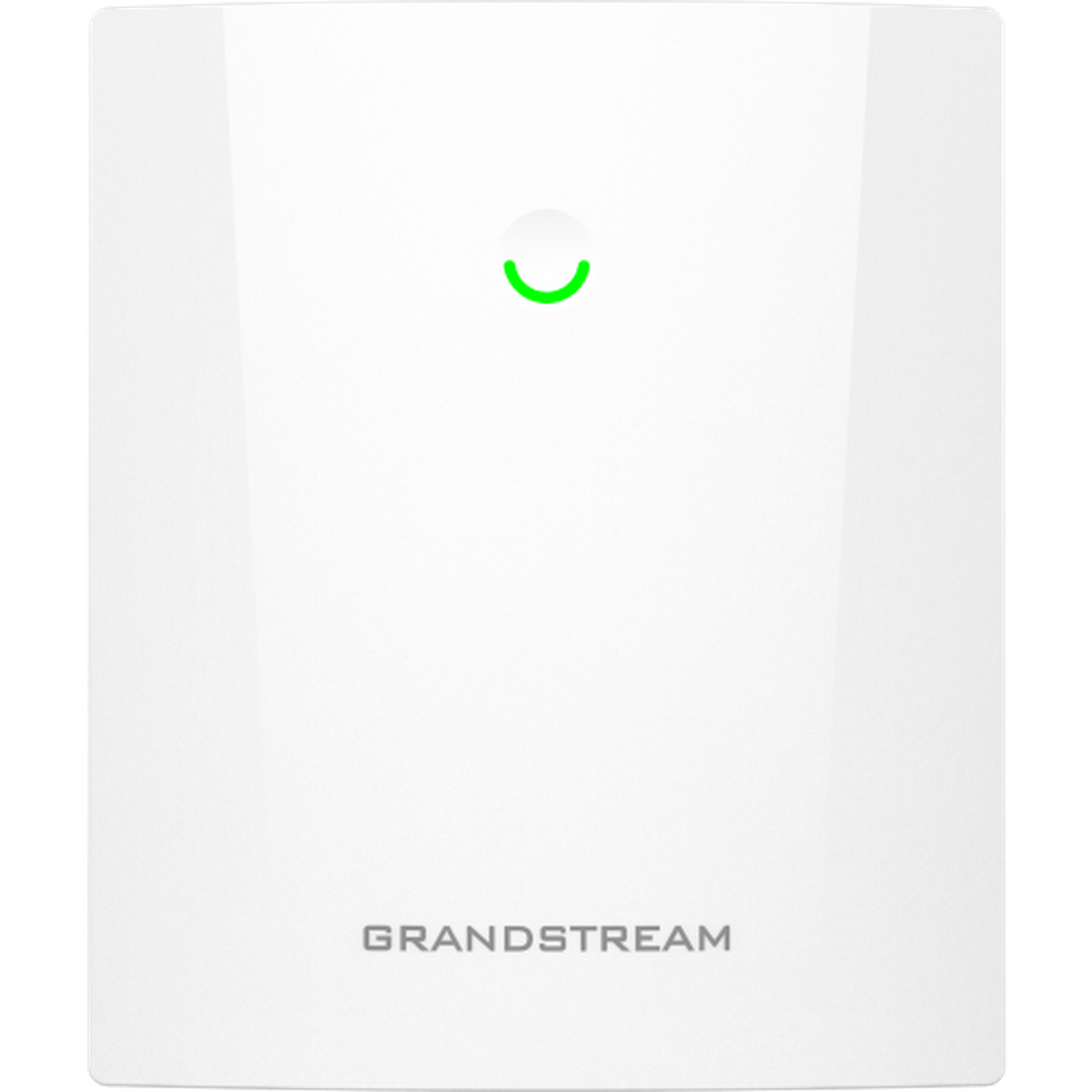

Grandstream GWN7660ELR Wi-Fi 6 Long-Range Access Point

The Grandstream GWN7660ELR is an outdoor long-range Wi-Fi 6 access point: AX3000, dual-band 2×2:2 MIMO with OFDMA, up to 256 clients and a quoted 300-metre coverage range, in an IP68 weatherproof and dust-proof body rated from −30 to 60°C.

It is the unit for covering ground rather than filling a room — a yard, a car park, a campus walkway, a caravan site, a marina. The long-range antenna design trades the wide spread of an indoor AP for reach in a chosen direction, which is exactly the wrong choice indoors and exactly the right one outside.

The connectivity is unusually good for this class. Alongside the Gigabit Ethernet port with PoE/PoE+ there is a 2.5 Gigabit SFP port — so where the run is too long for copper, fibre can go straight into the access point without a media converter in a box on a pole.

Key features

• Up to 300 m coverage — long-range antenna design for outdoor distance
• IP68 weatherproof and dust-proof — rated −30 to 60°C for year-round outdoor use
• 802.11ax Wi-Fi 6, AX3000 — dual band 2×2:2 MIMO with OFDMA
• Up to 256 concurrent clients — more than most outdoor areas will ever present
• Gigabit Ethernet with PoE/PoE+ — one cable for power and data up the pole
• 2.5 Gigabit SFP port — take fibre directly where copper cannot reach
• Embedded controller — run a small GWN estate from the access point itself
• Mesh support — chain outdoor coverage where no cable can be run
• GDMS Networking and GWN Manager — cloud or on-premise management, both free

Works with

• Grandstream GWN7664ELR — the 4×4:4, 512-client version of the same idea
• Grandstream GWN7660LR — the earlier long-range outdoor model
• Grandstream GWN7664LR — outdoor 4×4:4 long range
• Grandstream GWN7302 — a point-to-point bridge, if the job is a link rather than coverage
• GWN7710R outdoor switch — managed switching that can live outside with it
• GS-POE30W-MG injector — single-port PoE where there is no PoE switch
• All wireless access points

Frequently asked questions

Will it really reach 300 metres?

Outdoors, with line of sight and nothing in the way, that is the quoted figure. Trees, buildings and vehicles all take a bite out of it, and the client's own transmitter has to be able to answer from that distance — a phone in a pocket is not a match for a pole-mounted antenna.

Can I use it indoors?

You can, but it is the wrong tool. Long-range antennas throw signal outward rather than spreading it evenly, so indoors you get reach in one direction and gaps elsewhere. Use an indoor AP inside.

What is the SFP port for?

Fibre. Copper Ethernet runs out at 100 metres; if the access point is further than that from the cabinet, a fibre run into the 2.5G SFP port solves it without a converter box on the pole.

Does it need a special power supply?

PoE or PoE+ over the Ethernet port is the usual approach, which also means one cable up the pole rather than two. Note that if you use the SFP port for data, the AP still needs power from somewhere.

How is it different from the GWN7664ELR?

Capacity. Same 300-metre range and IP68 rating; the 7664ELR has a 4×4:4 radio, 512 clients and up to 6 Gbps. This one is 2×2:2, 256 clients and AX3000 — plenty for most outdoor areas and cheaper.

Will it survive a British winter?

It is rated IP68 and from −30 to 60°C, so weather is not the concern. Mounting is — fix it to something that will not move in wind, and dress the cable so water runs away from the gland, not into it.

Covering a yard, a campus or a car park? Call 0333 242 1314 or email sales@clisecure.com and we will work out how many units and where they go.
