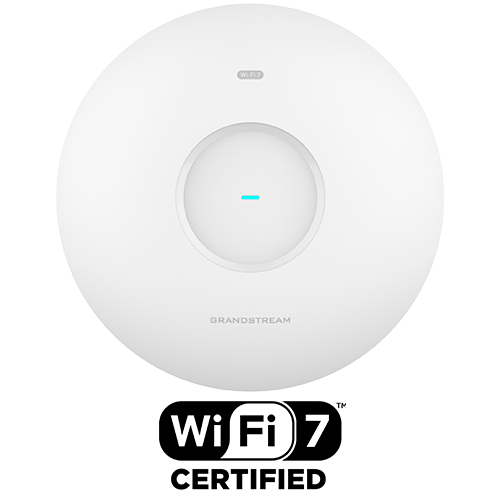

Grandstream GWN7670E Wi-Fi 7 Indoor Access Point

The Grandstream GWN7670E is a dual-band Wi-Fi 7 access point for indoor deployments where client density matters more than headline tri-band figures. It combines a 2x2 2.4GHz radio with a 3x3 5GHz radio for 3.6Gbps of aggregate wireless throughput, and backs that with a 2.5GbE uplink so the wired side is not the bottleneck.

It will hold up to 512 concurrent clients and broadcast 32 SSIDs, which makes it a sensible choice for offices, classrooms, meeting spaces and hospitality floors. Management is included rather than licensed: run a small site from the built-in web interface, or adopt it into GDMS Networking or GWN Manager for multi-site control. Grandstream's Xtra Range 2.0 tuning pushes usable 5GHz coverage out to around 175 metres in open conditions, and secure boot with per-device certificates hardens the firmware against tampering.

Key features

• Wi-Fi 7 (802.11be) — 3.6Gbps aggregate wireless throughput across 2.4GHz and 5GHz
• 512 concurrent clients — comfortable headroom for busy offices, classrooms and function rooms
• 2.5GbE PoE uplink — a single 2.5 Gigabit RJ45 port carries both data and 802.3at power
• 3x3 MU-MIMO on 5GHz — an extra spatial stream over typical dual-band APs, for better throughput per client
• Xtra Range 2.0 — antenna and power tuning that extends usable 5GHz coverage up to 175 metres
• 32 SSIDs — 16 per radio, so guest, staff, voice and IoT networks can be separated cleanly
• WPA3 and 802.1x — plus PPSK, MAC authentication and captive portal for guest onboarding
• Secure boot — anti-hacking boot process with a unique security certificate per unit
• Free management — local web UI for up to 50 APs, GDMS Networking with no device limit, or GWN Manager for up to 3,000 APs
• Mesh and fast roaming — 802.11k/v/r roaming, band steering, client steering and rogue AP detection

Technical specification

Wireless

• Wi-Fi 7, IEEE 802.11a/b/g/n/ac/ax/be
• 2.4GHz: 2x2:2 MU-MIMO; 5GHz: 3x3:2 MU-MIMO
• Aggregate wireless throughput: 3.6Gbps
• Up to 512 concurrent clients
• 32 SSIDs total, 16 per radio
• Coverage: up to 175 metres
• Mesh support on 2.4GHz, 5GHz, or both bands

Antennas and transmit power

• 2.4GHz: 2 x 3.5 dBi integrated antennas
• 5GHz: 3 x 5.5 dBi integrated antennas
• Maximum transmit power: 26.5 dBm at 2.4GHz, 25 dBm at 5GHz

Network and power

• 1 x 2.5GbE RJ45 port with PoE input
• PoE standard: IEEE 802.3at
• Maximum power consumption: 16W
• Aggregate wired throughput: 2.5Gbps
• QoS and VLAN: 802.11e/WMM, 802.1p, 802.1q, ToS, per-SSID VLAN binding

Security and management

• WPA3 and WPA2 Enterprise and Personal, plus open system
• 802.1x authentication, PPSK, MAC-based authentication, captive portal
• Anti-hacking secure boot with unique per-device certificate
• Rogue AP detection
• Management: local web UI (up to 50 APs), GDMS Networking (unlimited), GWN Manager (up to 3,000 APs)

Physical and environmental

• Dimensions: 220 mm diameter x 48.5 mm
• Weight: 545.8g
• Mounting: wall, ceiling or junction box
• Operating temperature: 0°C to 45°C
• Humidity: 10% to 90% non-condensing

Works with

• Grandstream GWN7670 — the standard dual-band Wi-Fi 7 indoor AP
• Grandstream GWN7670WM — in-wall Wi-Fi 7 AP for hotel rooms and offices
• Grandstream GWN7672 — tri-band Wi-Fi 7 AP where 6GHz is required
• Grandstream GWN7700MP — 2.5GbE PoE switch to feed the AP at full uplink speed
• Grandstream GS-POE30W-MG injector — 802.3at PoE for a single AP without a PoE switch
• All Grandstream access points

Frequently asked questions

How does the GWN7670E differ from the GWN7670?

Both are dual-band Wi-Fi 7 indoor APs in the same family. The E variant is specified at 3.6Gbps aggregate with a 3x3 5GHz radio, a 2.5GbE uplink and support for up to 512 clients. Ask us for a side-by-side if you are choosing between them.

Do I need a 2.5GbE switch to use it?

No. The port negotiates down to 1GbE, so it will work on existing Gigabit PoE infrastructure. You will only see the full 2.5Gbps of wired headroom with a 2.5GbE PoE switch such as the GWN7700MP.

Is there a licence fee for the management platform?

No. The local web interface, GDMS Networking and GWN Manager are all included with the hardware — there is no annual controller subscription to budget for.

What PoE budget should I allow?

It is an 802.3at device drawing up to 16W, so allow around 20W per AP on the switch's PoE budget to be safe.

Can it run in a mesh without a wired uplink?

Yes. Mesh is supported on 2.4GHz, 5GHz or both, which is useful for outbuildings and awkward corners where running Cat6 is impractical. A wired uplink still gives the best performance.
