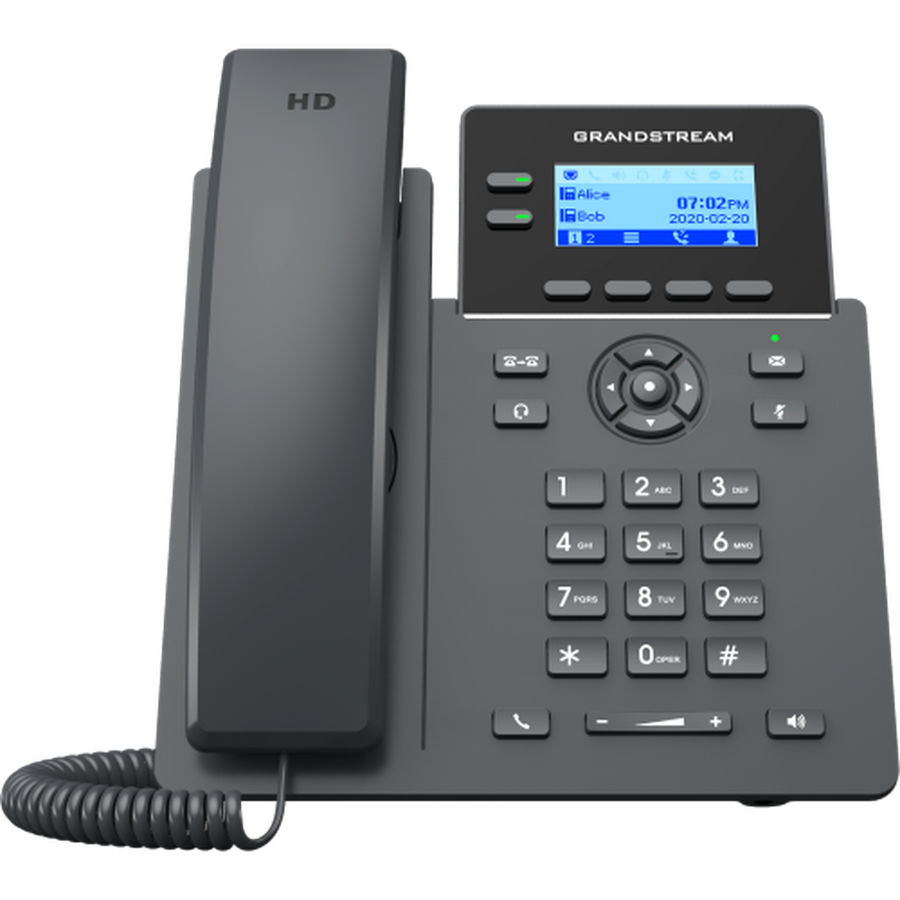

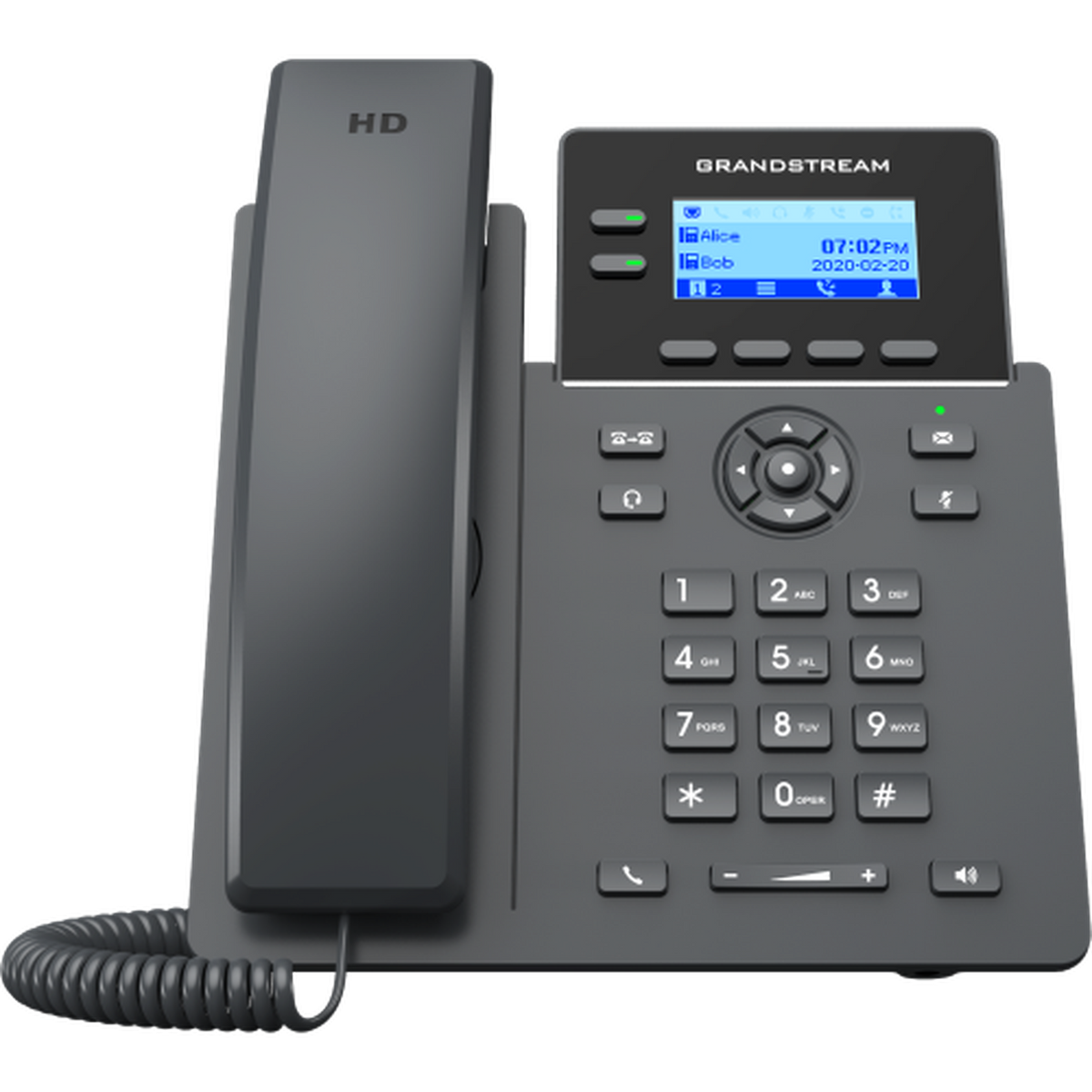

Grandstream GRP2602 Essential IP Phone

The Grandstream GRP2602 takes the same compact, hard-wearing shell as the GRP2601 and quadruples the account capacity. Four SIP accounts can be registered against two line keys, which means one phone can sit on a personal DDI, a departmental hunt group, an out-of-hours number and a second provider without needing extra hardware on the desk.

It is an easy specification for small offices, multi-tenant buildings and resellers who want one model to cover most standard desks. A 2.41-inch backlit LCD, full-duplex HD speakerphone and 5-way conferencing cover day-to-day calling, while secure boot and encrypted provisioning keep large estates manageable. The base GRP2602 uses its supplied mains adapter; the GRP2602P adds 802.3af PoE, the GRP2602G adds Gigabit ports with PoE, and the GRP2602W adds dual-band Wi-Fi 6.

Ideal for

• Small and medium offices standardising on one desk phone
• Staff who cover more than one number or department
• Serviced and multi-tenant offices with mixed providers
• Reception overflow and shared administrative desks
• Hosted voice providers wanting headroom above a single-account phone
• Sites migrating from analogue where a simple, familiar layout helps adoption

Key features

• Four SIP accounts on two lines — cover several numbers or providers from one handset
• 2.41-inch backlit graphical LCD — clear caller ID and menus in poorly lit rooms
• Two dual-colour line keys — see at a glance which line is ringing, active or on hold
• Four programmable soft keys — context-sensitive XML keys that follow the call state
• 5-way audio conferencing — run a quick multi-party call from the phone itself
• Full-duplex HD speakerphone — both parties can talk at once without clipping
• Wideband codecs including G.722 and Opus — noticeably better speech quality on internal calls
• RJ9 headset jack with EHS — Plantronics, Jabra and Sennheiser hook switch support
• Dual 10/100 Ethernet ports — share one network drop between phone and PC
• Secure boot with dual firmware images — safe remote upgrades across a large estate

Technical specification

Telephony

• 4 SIP accounts, 2 lines
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.729A/B, Opus and other standard codecs
• Full-duplex speakerphone with HD audio

Display and controls

• 132 × 48 pixel, 2.41-inch backlit graphical LCD
• 2 line keys
• 4 programmable soft keys
• 8 dedicated function keys

Network and variants

• GRP2602 and GRP2602W: dual 10/100 Mbps Ethernet ports
• GRP2602P: dual 10/100 Mbps ports with integrated PoE
• GRP2602G: dual 10/100/1000 Mbps ports with integrated PoE
• GRP2602W: integrated dual-band 2.4GHz and 5GHz Wi-Fi 6
• PoE class: IEEE 802.3af Class 1, 3.84W

Power and physical

• Universal power supply, 100–240VAC input
• Dimensions: 208 × 180 × 63.4 mm
• Weight: approximately 670g

Security and management

• Secure boot, dual firmware images, encrypted data storage
• SHA-256 and SHA-512 authentication
• TLS signalling and SRTP media encryption
• GDMS and TR-069 remote provisioning

Datasheet

Download the official Grandstream GRP2602 datasheet (PDF)
